Interscience for microbiology


easySpiral Pro

Automatic plater

Traceability guaranteed

Ref. 413 000

easySpiral Pro

Automatic plater

Traceability guaranteed

Ref. 413 000

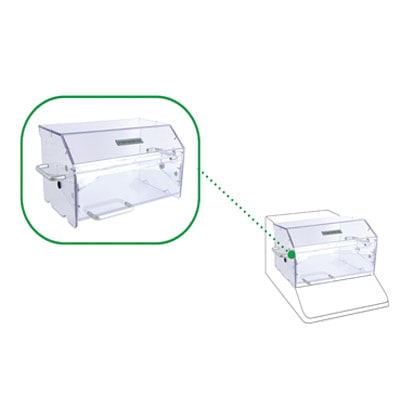

Housing protection for platers


WORK IN CONTROLLED CONDITIONS
Housing protection for platers- ref. 413 001

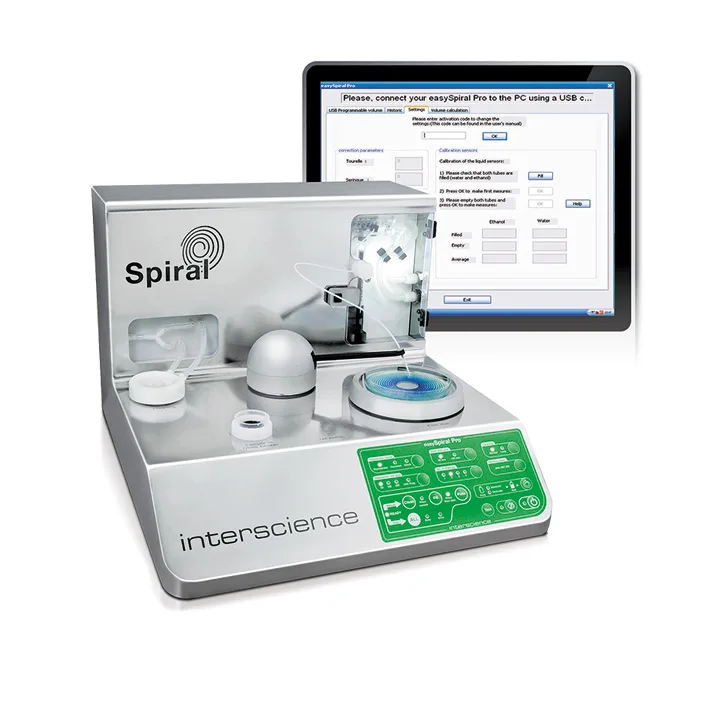

easySpiral Pro is an automatic plater of Petri dishes. It allows plating of a sample of 100 to 1x107 CFU/mL on one Petri dish, without prior dilution. Traceability is ensured and volumes are programmable via USB connection.

  • Traceability and programmable volumes
  • Plating modes: exponential, constant, circle
  • Counting range: from 100 to 1x107 CFU/mL
  • Plating cycle time: 25 seconds
Price request
More

Presentation

The Spiral method

With the Spiral plating technique, increase your analysis capabilities: without intermediate dilutions, perform standardized automatic plating with a counting range from 100 to 1 x 107 CFU/mL on 1 single Petri dish !


easySpiral - Manual plating method EN

Manual plating method requires repetitive actions: at least 4 dilutions and 4 successive platings are necessary to obtain one good and readable Petri dish.


easySpiral - Automatic Spiral method EN

With Automatic Spiral method, make your analyses on 1 single Petri dish!

Consumables: savings up to 75%

The exponential plating mode with easySpiral reduces your consumable budget and waste volumes. You will enjoy more space in your lab too! The easySpiral plater has no specific consumable needs.


Consumables: savings up to 75%

One touch plating

Plate easily and quickly your 90 and 150 mm Petri dishes. Choose from 3 plating modes: exponential, constant and circle.

Exponential mode

The exponential mode is a plating in surface with a decreasing surface concentration. Plate 50 µL, 100 µL, 200 µL or program a customizable volume. Obtain a countable Petri dish from 100 to 1 x 107 CFU/mL


Plating - Exponential mode - part 1 EN


Plating - Constant mode - part 2 EN

Constant mode

The constant mode is a homogenous surface deposition plating. Plate 50 µL, 100 µL, 200 µL or program a customizable volume.

Colony counting is then easy because there are no colonies on the edges of the Petri dish.


Plating - Circle mode - part 1 EN


Plating - Constant mode - part 2 EN


<span lang='fr'>easySpiral Dilute - Seringue en verre haute précision</span>

High accuracy glass syringe

Typical accuracy of glass syringe is 0.5 %.
Higher accuracy than an ordinary pipette and no more pipet calibration.


easySpiral - Automatic désinfection

Automatic disinfection

Overflow technology cleaning system and stylus disinfection. A light is activated in case of empty disinfecting liquid.
PATENTED

High speed automation

The fast rotating arm adapts itself to all types of agar without risks of ploughing. It makes it possible to obtain a plating in 25 seconds (disinfection + sample intake + plating).
PATENTED


easySpiral - Robotic arm

Traceability ensured
with dataLink

With dataLink and dataLink pro, you can track the sample from plating to automatic colony counting.

Parameter the label that will be stuck on the edge of the dish. The colony counting is then optimised.


Traceability system with DataLink

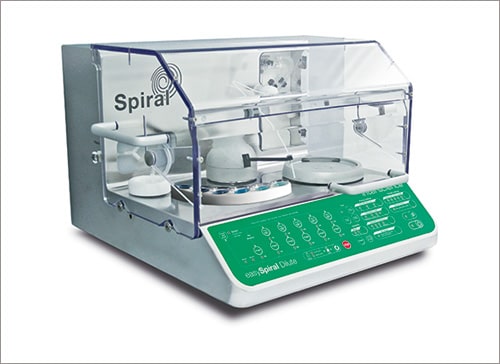

easySpiral Dilute - Compact and ergonomic

Compact
and ergonomic


Simple and secure connections

Simple and secure
connections

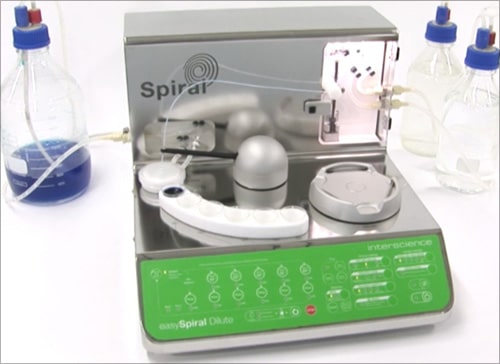

easySpiral Dilute - Long autonomy

Long
autonomy

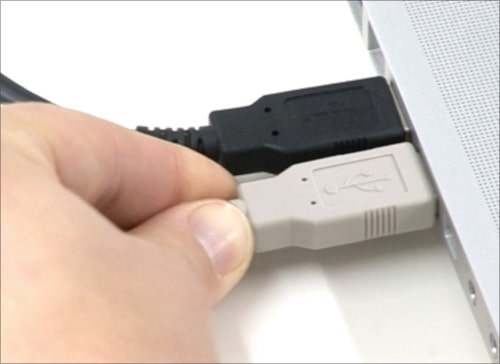

Traceability

USB programmable
volume

Applications

easySpiral Pro plater is used for enumeration during microbial control. The Spiral plating technique is often used for the detection of microorganisms with a quality criterion higher than 100 CFU/g. ISO 4833-2 provides a framework for the use of this technique for the detection of total flora. The constant mode, equivalent to a homogeneous surface plating, allows the enumeration of microorganisms with quality criteria lower than 100 CFU/g.


Food


Pharmaceutical


Cosmetic


Public research

Videos

Videos

From sample preparation to bacterial analyses - Overview

Download the video

From sampling to bacterial counting - Overview

Download the video

BagSystem - Increase your sample preparation

Download the video

easySpiral - Automatic platers: Overview of the range

Download the video

Unboxing - Automatic platers: easySpiral Dilute model

Download the video

Spiral plating - How does it work? (french)

Download the video

dataLink pro - Labelling on the edge of the Petri dish

Download the video

Resources

Resources

Title
Language
Type
Size
Download
PDF
3.8 Mb
Language: English
easySpiral range brochure
PDF
118 kb
Language: English
easySpiral Pro technical file
PDF
235.3 kb
Language: English
Bar-code reader technical file
PDF
226.8 kb
Language: English
Beakers DB 50 technical file
PDF
100 kb
Language: English
EC Certificate
PDF
102.7 kb
Language: English
UKCA Certificate
PDF
557.3 kb
Language: English, french
ISO 9001 Certificate
PDF
2.9 Mb
Language: English
EnzyClear Safety Data Sheet
(413 029)
PDF
2 Mb
Language: English
Safety Data Sheet Blue dye (415 530)
PDF
1.4 Mb
Language: English
Flyer dataLink
PDF
46.9 Mb
Language: English
English catalog
Z
Zip
1.2 Mb
easySpiral Pro photo
Title
Language
Type
Size
Download
PDF
824.6 kb
Language: English
Application note - Plating validation easySpiral/easySpiral Pro in decreasing exponential mode
Title
Language
Type
Size
Download
PDF
1.7 Mb
Language: English
Publication:  2023
Manufacture of syringes and capsules for faecal microbiota transplantation (FMT) with Interscience equipments
PDF
2.9 Mb
Language: English
Publication:  2023
Staphylococcus aureus Behavior on Artificial Surfaces Mimicking Bone Environment
PDF
561 kb
Language: English
Publication:  2014
Evaluation of the New Brilliance GBS Chromogenic Medium for Screening of Streptococcus agalactiae Vaginal Colonization in Pregnant Women
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Z
Zip
817.7 kb
410 100 - dataLink photo
Z
Zip
842.5 kb
410 100 - dataLink 2 photo
Z
Zip
434.5 kb
413 001 - Housing protection for platers photo
Z
Zip
691.9 kb
413 016 - Support for Eppendorf 0.5 mL photo
Z
Zip
1.4 Mb
413 017 - Support for Eppendorf 1.5 mL and 2 mL photo
Z
Zip
1017.8 kb
413 029 - EnzyClear photo
Z
Zip
1.1 Mb
414 003 -Maintenance kit for platers (1 mL) photo
Z
Zip
323.6 kb
415 100 - Beakers (DB 50) photo
Z
Zip
605.6 kb
415 530 - Blue dye for platers photo
Z
Zip
499 kb
522 000 - Bar-code reader photo
Title
Language
Type
Size
Download
Z
Zip
254.2 kb
413 003 - Connection kit for GL45 bottle photo
Z
Zip
597 kb
413 006 - Tubings photo
Z
Zip
1.6 Mb
413 009 - Filters for rinsing bath photo
Z
Zip
2.5 Mb
413 028 - Tube weights 3 mm photo
Z
Zip
491.8 kb
414 004 - Double connection kit for GL45 bottle photo
Z
Zip
745.4 kb
513 023 - PTFE filters 0.2 µL Ø 25 mm photo

Specifications

Specifications

easySpiral Pro
Reference 413 000
OVERVIEW
Controlled by a microprocessor N
All stainless steel N
Disinfection process N
Filling time and volume programmable via USB N
Sampling from beakers (DB50) N
SPECIFICATIONS
Syringe capacity 1000 µL
Preset dispensed volumes 50 µL, 100 µL and 200 µL
Counting range 100 CFU/mL to 1x107 CFU/mL
Time for 1 sample intake +
1 disinfection + 1 plating 		25 s
Pressure in the stylus Up to 8 bars
Autonomy in disinfection
(in normal mode) 		1000 cycles (2L bottles)
Autonomy in distilled water
(in normal mode) 		600 cycles (2L bottles)
Successive plating capacity with the same sample Up to 20 Petri dishes (50 µL)
Exponential plating mode
(Spiral mode):
Petri dish diameters Ø available: 		90 mm and 150 mm
Circle plating mode:
Petri dish diameters Ø available: 		90 mm and 150 mm
Constant plating mode:
Petri dish diameters Ø available: 		90 mm and 150 mm
Programmable dispensed volume
(via USB) 		10 µL to 1000 µL
Voltage - Frequencies 100-240 V~ 50-60 Hz
Fuses T1.6A L 250V 5x20 mm
Power 45 W
Warranty 1 year
International protection marking IP10
Spare parts availability 10 years
In compliance with ISO 7218, ISO 4833-2, FDA BAM (Bacteriological Analytical Manual) and AOAC 977.27
TRACEABILITY
Traceability Excel™, LIMS, dataLink
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): easySpiral 39.4 x 42.1 x 28.9 cm
Dimensions (w x d x h): easySpiral + Housing protection (Ref. 413 001) 46.3 x 42.1 x 30 cm
Net weight: easySpiral 16.30 kg
Net weight: easySpiral + Housing protection (Ref. 413 001) 18.30 kg
Box (w x d x h): easySpiral 60 x 50 x 55 cm
Bow (w x d x h): Housing protection (Ref. 413 001) 18.30 kg
Gross weight: easySpiral 25.90 kg
Gross weight: easySpiral+ Housing protection (Ref. 413 001) 29.10 kg (2 boxes)
DELIVERED WITH
1 turntable ring for Ø 90 mm Petri dishes, 1 blue dye for testing, 1 syringe with silicone tubing, 1 plating ring for Ø 150 mm Petri dishes, 1 Spiral counting grid for Ø 90 mm Petri dishes, 1 container stand for testing, 1 set of 2 filters, 1 software, 1 USB cable A/B, 1 Spiral counting grid for
Ø 150 mm Petri dishes, 1000 DB50 beakers, 1 EnzyClear liquid detergent, 4 connection kits for GL45 bottle, 1 double kit for GL45 bottles,
1 stylus, 1 power cable, 1 use manual, 1 EnzyClear quick user guide, 1 conformity certificate / warranty card
easySpiral Pro
Reference 413 000
OVERVIEW
Controlled by a microprocessor N
All stainless steel N
Disinfection process N
Filling time and volume programmable via USB N
Sampling from beakers (DB50) N
SPECIFICATIONS
Syringe capacity 1000 µL
Preset dispensed volumes 50 µL, 100 µL and 200 µL
Counting range 100 CFU/mL to 1x107 CFU/mL
Time for 1 sample intake +
1 disinfection + 1 plating 		25 s
Pressure in the stylus Up to 8 bars
Autonomy in disinfection
(in normal mode) 		1000 cycles (2L bottles)
Autonomy in distilled water
(in normal mode) 		600 cycles (2L bottles)
Successive plating capacity with the same sample Up to 20 Petri dishes (50 µL)
Exponential plating mode
(Spiral mode):
Petri dish diameters Ø available: 		90 mm and 150 mm
Circle plating mode:
Petri dish diameters Ø available: 		90 mm and 150 mm
Constant plating mode:
Petri dish diameters Ø available: 		90 mm and 150 mm
Programmable dispensed volume
(via USB) 		10 µL to 1000 µL
Voltage - Frequencies 100-240 V~ 50-60 Hz
Fuses T1.6A L 250V 5x20 mm
Power 45 W
Warranty 1 year
International protection marking IP10
Spare parts availability 10 years
In compliance with ISO 7218, ISO 4833-2, FDA BAM (Bacteriological Analytical Manual) and AOAC 977.27
TRACEABILITY
Traceability Excel™, LIMS, dataLink
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): easySpiral 39.4 x 42.1 x 28.9 cm
Dimensions (w x d x h): easySpiral + Housing protection (Ref. 413 001) 46.3 x 42.1 x 30 cm
Net weight: easySpiral 16.30 kg
Net weight: easySpiral + Housing protection (Ref. 413 001) 18.30 kg
Box (w x d x h): easySpiral 60 x 50 x 55 cm
Bow (w x d x h): Housing protection (Ref. 413 001) 18.30 kg
Gross weight: easySpiral 25.90 kg
Gross weight: easySpiral+ Housing protection (Ref. 413 001) 29.10 kg (2 boxes)
DELIVERED WITH
1 turntable ring for Ø 90 mm Petri dishes, 1 blue dye for testing, 1 syringe with silicone tubing, 1 plating ring for Ø 150 mm Petri dishes, 1 Spiral counting grid for Ø 90 mm Petri dishes, 1 container stand for testing, 1 set of 2 filters, 1 software, 1 USB cable A/B, 1 Spiral counting grid for
Ø 150 mm Petri dishes, 1000 DB50 beakers, 1 EnzyClear liquid detergent, 4 connection kits for GL45 bottle, 1 double kit for GL45 bottles,
1 stylus, 1 power cable, 1 use manual, 1 EnzyClear quick user guide, 1 conformity certificate / warranty card

GLP-Compliant use (Good Laboratory Practice)

Products made for Interscience by Interlab, an ISO 9001 certified company.

Accessories

Accessories

Stickers for printer

Ref. 410 120

Housing protection for platers

Ref. 413 001

2L bottle (GL45)

Ref. 413 002

Syringue (1mL)

Ref. 413 004

Spiral counting grid (90 mm)

Ref. 413 014

Grille de comptage Spiral (150 mm)

Ref. 413 015

Support for Eppendorf 0.5 mL

Ref. 413 016

Support for Eppendorf 1.5 mL and 2 mL

Ref. 413 017

Support for Dilucup

Ref. 413 018

Adjustable plate for Petri dish (90-150 mm)

Ref. 413 019

EnzyClear

Ref. 413 029

Stylus (1 mL)

Ref. 414 001

Maintenance kit for platers (1 mL)

Ref. 414 003

Beakers (DB 50)

Ref. 415 100

Blue dye for platers

Ref. 415 530

Stickers for printer (dataLink pro)

Ref. 439 051

Film for printer (dataLink pro)

Ref. 439 052

Bar-code reader

Ref. 522 000

Stickers for printer

Ref. 410 120

2 rolls of 2500 labels for thermal printer - Label size: 45 x 10 mm

Box dimensions: 18x25 cm
Gross weight: 0.47 kg
Quantity: 2x2500

Housing protection for platers

Ref. 413 001

Transparent housing for working outside laminar flow

2L bottle (GL45)

Ref. 413 002

Set of 3 GL45 glass bottle (2L), autoclavable

Box: 37x37x37 cm
Gross weight: 4.10 kg
Quantity: 3

Syringue (1mL)

Ref. 413 004

Syringe (capacity 1000 µL)

Spiral counting grid (90 mm)

Ref. 413 014

Spiral counting grid for ø 90 mm Petri dishes

Grille de comptage Spiral (150 mm)

Ref. 413 015

Grille de comptage pour boites de ø 150 mm

Support for Eppendorf 0.5 mL

Ref. 413 016

Support for Eppendorf - Sample intake 0.5 mL

Support for Eppendorf 1.5 mL and 2 mL

Ref. 413 017

Support for EppendorfTM - Sample intake 1.5 mL and 2 mL

Support for Dilucup

Ref. 413 018

Support for Dilucup sample intake

Adjustable plate for Petri dish (90-150 mm)

Ref. 413 019

Multiadaptable support for Petri dishes of 90 to 150 mm

EnzyClear

Ref. 413 029

Spiral plater detergent recommended for cleaning and pre-disinfection

Stylus (1 mL)

Ref. 414 001

Maintenance kit for platers (1 mL)

Ref. 414 003

Maintenance kit including: 1 stylus, 1 syringe, 1 silicone tubing (ref 413 006), 1 grease tube, 8 filters, 2 quick connectors

Box dimensions: 31x21.5x10 cm
Gross weight: 0.52 kg
Quantity: 1

Beakers (DB 50)

Ref. 415 100

1 000 beakers for Spiral plater (5 mL)

Box: 34x22x12 cm
Gross weight: 1.50 kg
Quantity: 1000

Blue dye for platers

Ref. 415 530

Color dye for Spiral tests (125 mL)

Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 1

Stickers for printer (dataLink pro)

Ref. 439 051

Set of 3 Labels roll for dataLink pro printer
Label size: 5x50mm

Box dimensions: 25.7x21.5x10.5 cm
Gross weight: 0.6 kg
Quantity: 3x2500

Film for printer (dataLink pro)

Ref. 439 052

Thermal transfer film for dataLink pro printer

Box dimensions: 12.88x11.5x8.5 cm
Gross weight: 0.22 kg
Quantity: 1

Bar-code reader

Ref. 522 000

Bar-code reader (1D)

Box dimensions: 26x16.5x11 cm
Gross weight: 0.66 kg
Quantity: 1

Tubings

Tubings

A Connection kit for GL45 bottle

413 003 - Connection kit for GL45 bottle

  • C Tube weights
  • E PTFE filter

A

Connection kit for GL45 bottle

Ref. 413 003

Tubings

Ref. 413 006

Filters for rinsing bath

Ref. 413 009
C

Tube weights (Ø 3 mm)

Ref. 413 028

Double connection kit for GL45 bottle

Ref. 414 004
E

PTFE filters 0.2 µm
(Ø 25 mm)

Ref. 513 023
A

Connection kit for GL45 bottle

Ref. 413 003

Autoclavable connection set for GL45 bottle

Box dimensions: 12x10x8 cm
Gross weight: 0.08 kg
Quantity: 1

Tubings

Ref. 413 006

Silicone tubing with filter for cleaning pump

Box dimensions: 12x10x8 cm
Gross weight: 0.04 kg
Quantity: 1

Filters for rinsing bath

Ref. 413 009

Set of 2 filters for rinsing bath

Box dimensions: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 2

C

Tube weights (Ø 3 mm)

Ref. 413 028

Set of 5 tube weights (inner Ø 3 mm)

Box dimensions: 12x8 cm
Gross weight: 0.04 kg
Quantity: 5

Double connection kit for GL45 bottle

Ref. 414 004

Double connection kit for GL45 bottle to be use on the same bottle

Box dimensions: 18x25 cm
Gross weight: 0.08 kg
Quantity: 1

E

PTFE filters 0.2 µm
(Ø 25 mm)

Ref. 513 023

Set of 5 autoclavable filters (0.2 µm) for GL45 bottle

Box: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 5

© Interscience 2024. All rights reserved
