easySpiral Pro Milk
Automatic plater
Ref 413 090
easySpiral Pro Milk is an automatic Petri dish plater. It allows plating of a sample of 100 to 1x107 CFU/mL on a single Petri dish, without prior dilution. easySpiral Pro Milk is particularly suitable for the dairy industry in analyzing raw materials and payment for milk.
- Sample intake in the sample holder
- Plating modes: exponential, pour, circle
- Counting range: from 100 to 1x107 CFU/mL
- Plating cycle time: 25 s
Milk payment
Quality-based milk payment analysis involves nutritional and bacterial criteria. The results will determine the qualitative and therefore financial value of the milk.

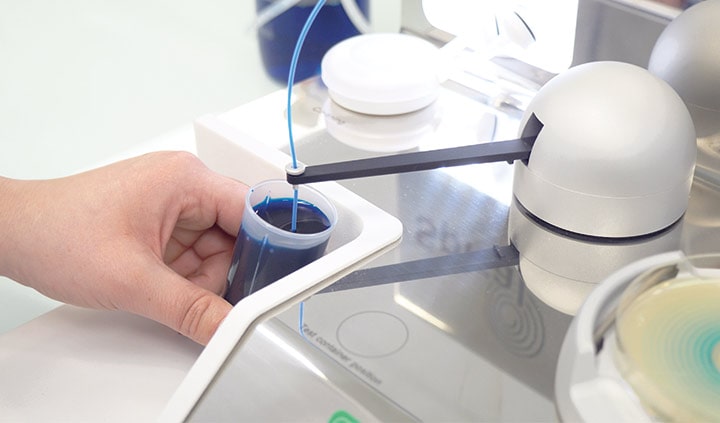

Direct intake
easySpiral Pro Milk allows for the pipetting of the sample directly from its original container (eg. Test tube, beaker...) before plating. There is no need to transfer your sample to a special container for intake, eliminating any cross contamination risk. easySpiral Pro Milk is ideal for onerous or sensitive samples (eg. Active substances…).
The Spiral method
With the Spiral method, increase your analysis capabilities: without intermediate dilutions, perform standardized automatic plating with a counting range from 100 to 1 x 107 CFU/mL on 1 single Petri dish !
Manual plating method requires repetitive actions: at least 4 dilutions and 4 successive platings are necessary to obtain one good and readable Petri dish.
With Automatic Spiral method, make your analyses on 1 single Petri dish!
Consumables: savings up to 75%
The exponential plating mode with easySpiral Pro Milk reduces your consumable budget and waste volumes. You will enjoy more space in your lab too!
The easySpiral Pro Milk plater has no specific consumable needs.
One touch plating
Plate easily and quickly your 90 and 150 mm Petri dishes. Choose from 3 plating modes: exponential, constant and circle.
Exponential mode
The exponential mode is a plating in surface with a decreasing surface concentration. Plate 50 µL, 100 µL, 200 µL or program a customizable volume. Obtain a countable Petri dish from 100 to 1 x 107 CFU/mL
Constant mode
The constant mode is a homogenous surface deposition plating. Plate 50 µL, 100 µL, 200 µL or program a customizable volume.
Colony counting is then easy because there are no colonies on the edges of the Petri dish.
High accuracy glass syringe
Typical accuracy of glass syringe is 0.5 %. Higher accuracy than an ordinary pipette and no more pipet calibration.
Automatic disinfection
Overflow technology cleaning system and stylus disinfection. A light is activated in case of empty disinfecting liquid.
PATENTED
High speed automation
The fast rotating arm adapts itself to all types of agar without risks of ploughing. It makes it possible to obtain a plating in 25 seconds (disinfection + sample intake + plating).
PATENDED
Traceability ensured
with dataLink
With dataLink and dataLink pro, you can track the sample from plating to automatic colony counting.
Parameter the label that will be stuck on the edge of the dish. The colony counting is then optimised.
Easy and secure connections

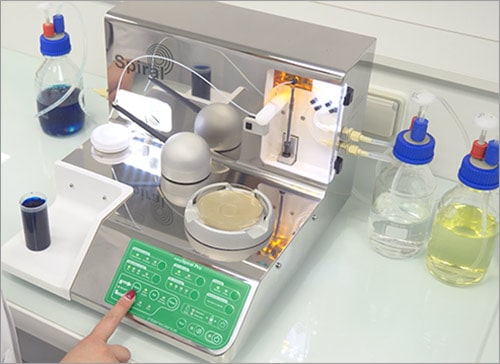

Long autonomy
Programmable volumes via USB
Applications
easySpiral platers are used for all types of microbiological analyses in the food, pharmaceutical, cosmetic and public research institutes ...
Videos
From sample preparation to bacterial analyses - Overview
Download the videoFrom sampling to bacterial counting - Overview
Download the videoBagSystem - Increase your sample preparation
Download the videoeasySpiral Pro Milk - Automatic plater: Overview
Download the videoeasySpiral - Automatic platers: Overview of the range
Download the videoUnboxing - Automatic platers: easySpiral Dilute model
Download the videoSpiral plating - How does it work? (french)
Download the videodataLink pro - Labelling on the edge of the Petri dish
Download the videoResources
Publication: 2014
Evaluation of the New Brilliance GBS Chromogenic Medium for Screening of Streptococcus agalactiae Vaginal Colonization in Pregnant WomenPublication: 2023
Manufacture of syringes and capsules for faecal microbiota transplantation (FMT) with Interscience equipmentsSpecifications
| easySpiral Pro Milk | |
| Reference | 413 090 |
| OVERVIEW | |
| Controlled by a microprocessor | N |
| All stainless steel | N |
| Disinfection process | N |
| Filling time and volume programmable via USB | N |
| Sampling from tubes (dim.: 80x35 mm) | N |
| SPECIFICATIONS | |
| Syringe capacity | 1000 µL |
| Preset dispensed volumes | 50 µL, 100 µL and 200 µL |
| Counting range | 100 CFU/mL to 1x107 CFU/mL |
|
Time for 1 sample intake + 1 disinfection + 1 plating |
25 s |
| Pressure in the stylus | Up to 8 bars |
|
Autonomy in disinfection (in normal mode) |
1000 cycles (2 L bottles) |
|
Autonomy in distilled water (in normal mode) |
600 cycles (2 L bottles) |
| Successive plating capacity with the same sample | Up to 20 Petri dishes (50 µL) |
|
Exponential plating mode (Spiral mode): Petri dish diameters Ø available: |
90 mm and 150 mm |
|
Circle plating mode: Petri dish diameters Ø available: |
90 mm and 150 mm |
|
Constant plating mode: Petri dish diameters Ø available: |
90 mm and 150 mm |
|
Programmable dispensed volume (via USB) |
10 µL to 1000 µL |
| Voltage - Frequencies | 100-240 V∼ 50-60 Hz |
| Fuses | T1.6A L 250V 5x20 mm |
| Power | 45 W |
| Warranty | 1 year |
| International protection marking | IP10 |
| Spare parts availability | 10 years |
| In compliance with | ISO 7218, ISO 4833-2, FDA BAM (Bacteriological Analytical Manual) and AOAC 977.27 |
| TRACEABILITY | |
| Traceability | ExcelTM, LIMS, dataLink |
| WEIGHT AND DIMENSIONS | |
| Dimensions (w x d x h): easySpiral | 39.4 x 42.3 x 28.9 cm |
| Net weight: easySpiral | 16.30 kg |
| Box (w x d x h): easySpiral | 60 x 50 x 55 cm |
| Gross weight: easySpiral | 25.90 kg |
| DELIVERED WITH | |
|
1 turntable for Ø 90 mm Petri dishes (by default on the unit), 1 blue dye for testing, 1 syringe with silicone tubing, 1 plating ring for Ø 150 mm Petri dishes, 1 Spiral counting grid for Ø 90 mm Petri dishes, 1 container stand for testing, 1 set of 2 filters, 1 software, 1 USB A/B cable, 1 Spiral counting grid for Ø 150 mm Petri dishes, 1 EnzyClear liquid detergent, 4 connection kit for GL45 bottle, 1 double connection kit for GL45 bottle, 1 stylus, 1 power cable, 1 user’s manual, 1 EnzyClear quick user guide, 1 conformity certificate / warranty card |
GLP-Compliant use (Good Laboratory Practice)
Products made for Interscience by Interlab, an ISO 9001 certified company.
Accessories
Stickers for printer
2L bottle (GL45)
Syringue (1mL)
Spiral counting grid (90 mm)
Spiral counting grid (150 mm)
Adjustable plate for Petri dish (90-150 mm)
EnzyClear
Stylus (1 mL)
Maintenance kit for platers (1 mL)
Blue dye for platers
Stickers for printer (dataLink pro)
Film for printer (dataLink pro)
Bar-code reader
Stickers for printer
2 rolls of 2500 labels for thermal printer - Label size: 45 x 10 mm
Box dimensions: 18x25 cm
Gross weight: 0.47 kg
Quantity: 2x2500
2L bottle (GL45)
Set of 3 GL45 glass bottle (2L), autoclavable
Box: 37x37x37 cm
Gross weight: 4.10 kg
Quantity: 3
Syringue (1mL)
Syringe (capacity 1000 µL)
Spiral counting grid (90 mm)
Spiral counting grid for ø 90 mm Petri dishes
Spiral counting grid (150 mm)
Spiral counting grid for ø 150 mm Petri dishes
Adjustable plate for Petri dish (90-150 mm)
Multiadaptable support for Petri dishes of 90 to 150 mm
EnzyClear
Spiral plater detergent recommended for cleaning and pre-disinfection
Stylus (1 mL)
Maintenance kit for platers (1 mL)
Maintenance kit including: 1 stylus, 1 syringe, 1 silicone tubing (ref 413 006), 1 grease tube, 8 filters, 2 quick connectors
Box dimensions: 31x21.5x10 cm
Gross weight: 0.52 kg
Quantity: 1
Blue dye for platers
Color dye for Spiral tests (125 mL)
Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 1
Stickers for printer (dataLink pro)
Set of 3 Labels roll for dataLink pro printer
Label size: 5x50mm
Box dimensions: 25.7x21.5x10.5 cm
Gross weight: 0.6 kg
Quantity: 3x2500
Film for printer (dataLink pro)
Thermal transfer film for dataLink pro printer
Box dimensions: 12.88x11.5x8.5 cm
Gross weight: 0.22 kg
Quantity: 1
Bar-code reader
Bar-code reader (1D)
Box dimensions: 26x16.5x11 cm
Gross weight: 0.66 kg
Quantity: 1
Tubings
A Connection kit for GL45 bottle
- C Tube weights
- E PTFE filter
Connection kit for GL45 bottle
Tubings
Filters for rinsing bath
Tube weights (Ø 3 mm)
Double connection kit for GL45 bottle
PTFE filters 0.2 µm
(Ø 25 mm)
Connection kit for GL45 bottle
Autoclavable connection set for GL45 bottle
Box dimensions: 12x10x8 cm
Gross weight: 0.08 kg
Quantity: 1
Tubings
Silicone tubing with filter for cleaning pump
Box dimensions: 12x10x8 cm
Gross weight: 0.04 kg
Quantity: 1
Filters for rinsing bath
Set of 2 filters for rinsing bath
Box dimensions: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 2
Tube weights (Ø 3 mm)
Set of 5 tube weights (inner Ø 3 mm)
Box dimensions: 12x8 cm
Gross weight: 0.04 kg
Quantity: 5
Double connection kit for GL45 bottle
Double connection kit for GL45 bottle to be use on the same bottle
Box dimensions: 18x25 cm
Gross weight: 0.08 kg
Quantity: 1
PTFE filters 0.2 µm
(Ø 25 mm)
Set of 5 autoclavable filters (0.2 µm) for GL45 bottle
Box: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 5
