HD automatic colony counter and inhibition zone reader
High-performance
Ref. 437 000
Scan 1200
HD automatic colony counter and inhibition zone reader
High-performance
Ref. 437 000

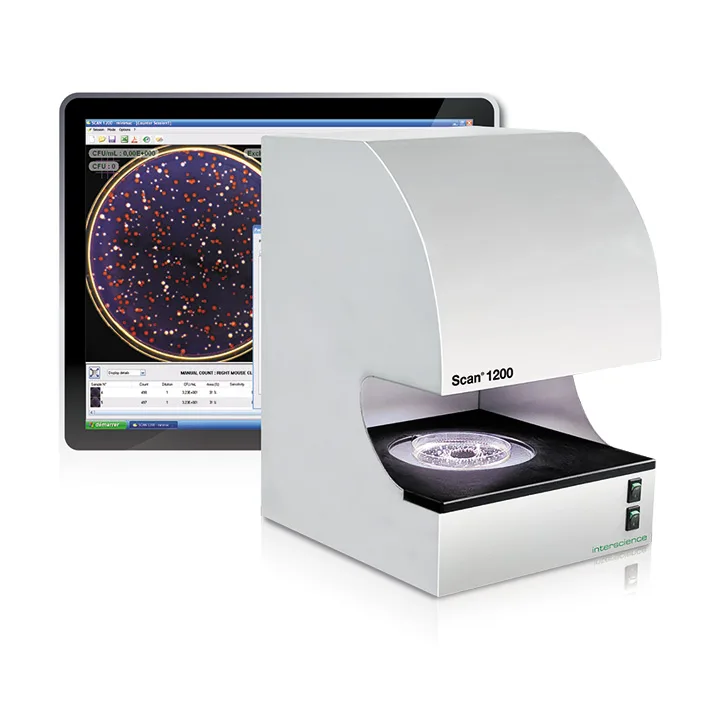

Scan 1200 is an HD automatic colony counter. It adapts itself to all media and counts in 1 click all colonies even the smallest ones. It ensures accuracy and excellent reproducibility. Images and results are saved automatically. Scan 1200 is also an inhibition zone reader.
Minimum size of detected colony : 0.05 mm
Camera : 1.2 megapixels - zoom x 28
Counting on Ø 55 - 90 mm round Petri dishes
Counting on pour, surface, Spiral, circle mode plated Petri dishes
The Scan 1200 allows reading on Ø 55 - 90 mm Petri dishes and works with numerous media and supports. Scan 1200 reads also inhibition zones on round Petri dishes.
The counting of Petri dishes is long, tedious and can vary from one person to another.
Scan 1200 can count up to 1000 colonies in 1 second in a constant and repeatable mode. Counting accuracy reach up to 98%. The minimum colony size is 0.05 mm.
Before/after counting on total count
Accuracy and repeatability
The counting of Petri dishes is long, tedious and can vary from one person to another. Scan 1200 can count up to 1000 colonies in 1 second in a constant and repeatable mode. Counting accuracy reach up to 98%. The minimum colony size is 0.05 mm.
Manual counting
Automatic counting
Data integrity
Scan receives and sends information from LIMS and/or dataLink and digitizes the counting. All the data from the analysis are traceable and auditable. The results are validated by a double electronic signature. Thanks to account management, you have multi-level access for the validation of results. This solution thus ensures the reliability and security of data in accordance with FDA guidelines, 21 CFR Part 11 and GMP (Good Manufacturing Practices) Annex 11.
Mueller Hinton disks before/after reading
Rapid reading of antibiograms
For precise clinical results and decision-making for the diagnosis and treatment of patients, the automated reading of antibiograms remains the most relevant solution.
•Up to 7 antibiotics in 1-3 seconds
•Measurement accuracy : ± 0.3 mm
•Integrated databases : CA-SFM, Eucast, CLSI
Traceability and printing of results
Scan 1200
connects to the LIMS in bi-directionality and can be connected to the diluter and plater via dataLink, a traceability system. It offers multiple export possibilities to save time on manual entry and thus increase the security and quality of your analyses.
Export your results to your PC or archive them in CSV, Excel™, OpenOffice™, PDF, SCA, BIO format. You can also export images from the camera in JPEG, PNG and BMP format.
SIL/LIMS Connection
dataLink
CSV
Saving and archiving sessions
PDF
JPG, PNG, BMP
Excel™, OpenOffice™
Dark Field lighting technology
Thanks to the Dark Field technology and its low lighting, colonies are easy to count. The operator does not tire his eyes.
Traceability ensured with dataLink
With dataLink, you can track the sample from plating to automatic colony counting.
Parameter the label that will be stuck on the edge of the dish. The colony counting is then optimised.
Scan automatic colony counters have 3-YEAR warranty (parts and labour) just by sending the warranty card back.
Applications
Scan 1200 is used for reading Petri dishes or various culture media such as filtration membranes for liquid samples and Petrifilm™ in Quality Control. Interpretation on chromogenic media is also available.
Compatible avec le système de traçabilité dataLink / dataLink pro
N
Dénombrement des ensemencements en masse, en surface, Spiral et cercle
N
Dénombrement sur géloses chromogènes
N
Dénombrement sur Petrifilm™, Compact Dry™, MC-Media Pad™, Easy Plate™, membranes de filtration
N
Comptage automatique
N
Lecture de zones d'inhibition
N
SPÉCIFICATIONS
Caméra couleur
CMOS
Lentille
HD Japanese lens
Zoom
x 28
Résolution (mégapixels)
1.2
Technologie d'éclairage par LED blanches
Dark Field
Système d'éclairage LED
Automatic with 6 combinations, top and/or bottom light, white or black background
Taille de boites de Petri
Ø 55 mm - Ø 90 mm
Détection des couleurs
4 colors on the same dish + 2 colors to exclude
Tension - Fréquence
100-240 V~ 50-60 Hz
Fusibles
T 3.15 A L 250 V 5x20 mm
Puissance max.
20 W
Indice de protection
IP00
Garantie
3-year (after recording the warranty)
Disponibilité des pièces détachées
10 years
En conformité avec
21 CFR Part 11, ISO 7218 and AOAC 977.27
POIDS ET DIMENSIONS
Dimensions (l x p x h) : Scan
28.8 x 26.3 x 37.3 cm
Poids net : Scan
9.40 kg
Dimensions emballage (l x p x h)
57 x 42 x 42 cm
Poids brut : Scan
13.10 kg
TRAÇABILITÉ
Export des données via USB
Recountable session, Excel™, PDF report, jpg, png and bmp images
Sécurisation des données
Modified data traceability in conformity with 21 CFR part 11
Résultats/traçabilité
Image / sample number / comments / date / time / antibiotic name / bacterial name / measured diameter / result categorized according to standards / minimum and maximum critical diameter
COMPTAGE DE COLONIES
Type de comptage
Automatic with manual control (adding/removing colonies)
Séparation automatique des colonies confluentes
N
Création de zones d'exclusion polygonales
N
Temps de comptage
Up to 1000 colonies per second
Taille minimum de colonie
0.05 mm
LECTURE DE ZONES D'INHIBITION
Détection des disques d'antibiotiques
Automatic with possibility to manually add or remove
Type de support lus pour l'antibiogramme
Disks (several brands simultaneously), wells
Résolution d'affichage
± 0.1 mm
Précision de la mesure de l'antibiogramme
± 0.3 mm
Nombre de disques d'antibiotiques lus
Up to 7 antibiotics on a Ø 90 mm Petri dish
Temps de lecture
7 inhibition zone reading between 1 to 3 s
Systèmes d'interprétation
CA-SFM Human health / EUCAST / CA-SFM Veterinary / CLSI (Clinical, Laboratory Standards Institute) / Customizable list
LOGICIEL
Langues
English, French, Japanese, Chinese, Russian, Spanish, German
Type de licence
Perpetual
Mises à jour du logiciel
3 years excluding qualification (after recording the warranty)
Gestion des comptes utilisateurs
Local or LDAP
CONFIGURATION MINIMALE REQUISE
Système d'exploitation
Windows™ : 10 or 11
Processeur
Intel i5, 13th or 14th generation minimum
RAM
4 GB for use of the Scan
Équipements
USB port free
Écran
1280 X 1024 pixels or higher
LIVRÉ AVEC
1 Scan software, 1 15V power supply, 1 power supply, 1 USB cable, 3 validation plates, 1 user manual, 1 conformity certificate / warranty card
Scan 1200
Référence
437 000
VUE GÉNÉRALE
Coque inox peint
N
N
Connexion LIMS/SIL
N
N
Connexion USB
N
N
Compatible avec le système de traçabilité dataLink / dataLink pro
N
N
Dénombrement des ensemencements en masse, en surface, Spiral et cercle
N
N
Dénombrement sur géloses chromogènes
N
N
Dénombrement sur Petrifilm™, Compact Dry™, MC-Media Pad™, Easy Plate™, membranes de filtration
N
N
Comptage automatique
N
N
Lecture de zones d'inhibition
N
N
SPÉCIFICATIONS
Caméra couleur
CMOS
CMOS
Lentille
HD Japanese lens
HD Japanese lens
Zoom
x 28
x 28
Résolution (mégapixels)
1.2
1.2
Technologie d'éclairage par LED blanches
Dark Field
Dark Field
Système d'éclairage LED
Automatic with 6 combinations, top and/or bottom light, white or black background
Automatic with 6 combinations, top and/or bottom light, white or black background
Taille de boites de Petri
Ø 55 mm - Ø 90 mm
Ø 55 mm - Ø 90 mm
Détection des couleurs
4 colors on the same dish + 2 colors to exclude
4 colors on the same dish + 2 colors to exclude
Tension - Fréquence
100-240 V~ 50-60 Hz
100-240 V~ 50-60 Hz
Fusibles
T 3.15 A L 250 V 5x20 mm
T 3.15 A L 250 V 5x20 mm
Puissance max.
20 W
20 W
Indice de protection
IP00
IP00
Garantie
3-year (after recording the warranty)
3-year (after recording the warranty)
Disponibilité des pièces détachées
10 years
10 years
En conformité avec
21 CFR Part 11, ISO 7218 and AOAC 977.27
21 CFR Part 11, ISO 7218 and AOAC 977.27
POIDS ET DIMENSIONS
Dimensions (l x p x h) : Scan
28.8 x 26.3 x 37.3 cm
28.8 x 26.3 x 37.3 cm
Poids net : Scan
9.40 kg
9.40 kg
Dimensions emballage (l x p x h)
57 x 42 x 42 cm
57 x 42 x 42 cm
Poids brut : Scan
13.10 kg
13.10 kg
TRAÇABILITÉ
Export des données via USB
Recountable session, Excel™, PDF report, jpg, png and bmp images
Recountable session, Excel™, PDF report, jpg, png and bmp images
Sécurisation des données
Modified data traceability in conformity with 21 CFR part 11
Modified data traceability in conformity with 21 CFR part 11
Résultats/traçabilité
Image / sample number / comments / date / time / antibiotic name / bacterial name / measured diameter / result categorized according to standards / minimum and maximum critical diameter
Image / sample number / comments / date / time / antibiotic name / bacterial name / measured diameter / result categorized according to standards / minimum and maximum critical diameter
COMPTAGE DE COLONIES
Type de comptage
Automatic with manual control (adding/removing colonies)
Automatic with manual control (adding/removing colonies)
Séparation automatique des colonies confluentes
N
N
Création de zones d'exclusion polygonales
N
N
Temps de comptage
Up to 1000 colonies per second
Up to 1000 colonies per second
Taille minimum de colonie
0.05 mm
0.05 mm
LECTURE DE ZONES D'INHIBITION
Détection des disques d'antibiotiques
Automatic with possibility to manually add or remove
Automatic with possibility to manually add or remove
Type de support lus pour l'antibiogramme
Disks (several brands simultaneously), wells
Disks (several brands simultaneously), wells
Résolution d'affichage
± 0.1 mm
± 0.1 mm
Précision de la mesure de l'antibiogramme
± 0.3 mm
± 0.3 mm
Nombre de disques d'antibiotiques lus
Up to 7 antibiotics on a Ø 90 mm Petri dish
Up to 7 antibiotics on a Ø 90 mm Petri dish
Temps de lecture
7 inhibition zone reading between 1 to 3 s
7 inhibition zone reading between 1 to 3 s
Systèmes d'interprétation
CA-SFM Human health / EUCAST / CA-SFM Veterinary / CLSI (Clinical, Laboratory Standards Institute) / Customizable list
CA-SFM Human health / EUCAST / CA-SFM Veterinary / CLSI (Clinical, Laboratory Standards Institute) / Customizable list
LOGICIEL
Langues
English, French, Japanese, Chinese, Russian, Spanish, German
English, French, Japanese, Chinese, Russian, Spanish, German
Type de licence
Perpetual
Perpetual
Mises à jour du logiciel
3 years excluding qualification (after recording the warranty)
3 years excluding qualification (after recording the warranty)
Gestion des comptes utilisateurs
Local or LDAP
Local or LDAP
CONFIGURATION MINIMALE REQUISE
Système d'exploitation
Windows™ : 10 or 11
Windows™ : 10 or 11
Processeur
Intel i5, 13th or 14th generation minimum
Intel i5, 13th or 14th generation minimum
RAM
4 GB for use of the Scan
4 GB for use of the Scan
Équipements
USB port free
USB port free
Écran
1280 X 1024 pixels or higher
1280 X 1024 pixels or higher
LIVRÉ AVEC
1 Scan software, 1 15V power supply, 1 power supply, 1 USB cable, 3 validation plates, 1 user manual, 1 conformity certificate / warranty card
1 Scan software, 1 15V power supply, 1 power supply, 1 USB cable, 3 validation plates, 1 user manual, 1 conformity certificate / warranty card
Conforme à une utilisation selon les Bonnes Pratiques de Laboratoire (BPL).
Produit fabriqué pour Interscience par Interlab, entreprise certifiée ISO 9001.
