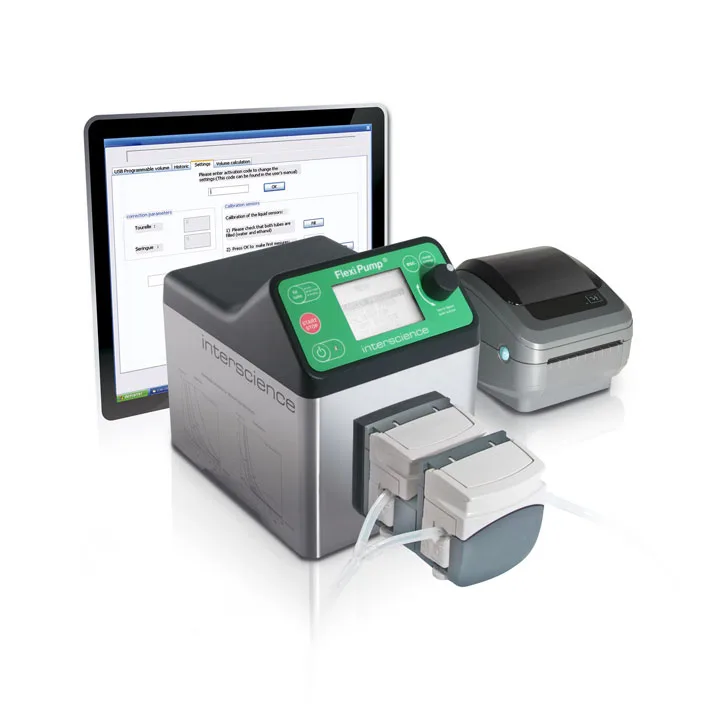

FlexiPump Pro

Dispensing pump for culture media preparation

High-tech and traceability

Ref. 562 000

FlexiPump Pro

Dispensing pump for culture media preparation

High-tech and traceability

Ref. 562 000

FlexiPump Pro is a peristaltic pump with enhanced accuracy for the dispensing of culture media, agar and any type of diluent. Compact and ergonomic, it comes with a user-friendly interface. Traceability is guaranteed by printer and USB connection.

  • Dispensing mode: Continuous - Dose - Multi-dose
  • Dose volume: from 50 µL to 99.9 L
  • Flow rate: up to 2.5 L/mn
  • Connection: USB, RS232, Jack 3.5 mm

Presentation


FlexiPump - Design

Designed for laboratories

FlexiPump is compact and easy to use with 3 dispensing modes: continuous, dose (predetermined volume) and multi-dose (predetermined volume, with an
adjustable pause between each dose). It has 32 customizable programs. FlexiPump easily calibrates and picks up in all types of containers.

Simplified distribution

The distribution can be done in series. The control is increased with the handy gun, the adjustable arm and the foot pedal.


Handy gun - dispensing gun

Culture media
E.g.: 9 mL
in test tubes


Handy gun - dispensing gun

Agar
E.g.: 18 mL
in Petri dish


FlexiPump - Adjustable hand

All liquid diluent
E.g.: 90 ou 225 mL
in bottle or blender bag

Control and accuracy of the distributed volume

FlexiPump Pro is equipped with a powerful motor allowing the distribution of 50 µL to 99.9 L with a flow rate up to 2.5 L/min. The difference in precision between several distributions reaches 1%. FlexiPump Pro complies with ISO 7218 standards.


FlexiPump - distributed volume

Typical accuracy with 3.2 mm internal diameter tubing
9 mL 18 mL 225 mL
± 0,9 % ± 0,5 % ± 0,4 %


FlexiPump - Handy gun

Ergonomics of the workstation

FlexiPump Pro is compact: only 16 cm wide. The large screen and the rotating button enable easy programing. The standard distribution in all types of containers is simplified thanks to the ergonomic spray gun.

Applications

FlexiPump is used for all serial distribution in food, environmental, pharmaceutical, cosmetics, veterinary and public research institutes.


Application - Food


Application - Environmental


Application - Pharmaceutical


Application - Cosmetics


Applications - Veterinary


Application - Public research

Videos

Videos

FlexiPump - Dispensing pumps: Overview of the range

Download the video

Unboxing - Dispensing pumps: FlexiPump model

Download the video

Documents

Documents

Title
Language
Type
Size
Download
FlexiPump brochure
English
PDF
977.6 kb
Tubings guide
English
PDF
878.3 kb
FlexiPump Pro technical file
English
PDF
828.3 kb
CE Certificate
English
PDF
100 kb
UKCA Certificate
English
PDF
102.7 kb
ISO 9001-2015 Certificate
English
PDF
789.1 kb
English catalog
English
PDF
5.9 Mb
Z
FlexiPump Pro photo
Zip
605.5 kb
Z
FlexiPump Pro - Screen photo
Zip
1020.1 kb
Title
Language
Type
Size
Download
Z
410 130 - Film for printer photo
Zip
322.6 kb
Z
410 150 - Printer photo
Zip
725.8 kb
Z
507 008 - Foot pedal photo
Zip
1.8 Mb
Z
513 001 - 5L bottle (GL45) photo
Zip
292.8 kb
Z
513 015 - Independent stand for 2 broth bags photo
Zip
862.1 kb
Z
521 012 - Sticker for printer photo
Zip
295 kb
Z
521 110 - Paper for print photo
Zip
2 Mb
Z
561 001 - Handy Gun photo
Zip
1.7 Mb
Z
561 001 - Handy Gun - Gun photo
Zip
1 Mb
Z
561 001 - Handy Gun - Mouse photo
Zip
324.5 kb
Z
561 001 - Handy Gun - Pen photo
Zip
980.3 kb
Z
561 002 - Adjustable dispensing arm photo
Zip
1.1 Mb
Title
Language
Type
Size
Download
Z
413 028 - Tube weights 3 mm photo
Zip
2.5 Mb
Z
505 017 - Nozzle cap for trocar photo
Zip
202.3 kb
Z
513 011 - Tubings for pump (Ø 4.8 mm) photo
Zip
215.6 kb
Z
513 020 - Trocar for broth bags photo
Zip
1.4 Mb
Z
513 023 - PTFE filters 0.2 µL Ø 25 mm photo
Zip
745.4 kb
Z
513 024 - Nozzle for tubings 4.8 to 8 mm photo
Zip
253.1 kb
Z
513 039 - Tube weights ø 6 mm photo
Zip
184.8 kb
Z
513 040 - Nozzles tubings (Ø 1.6 - 3.2 mm) photo
Zip
246 kb
Z
513 048 - Nozzle cap (Ø 1.6 - 3.2 mm) photo
Zip
205 kb
Z
561 301 - Tubings for pump (Ø 1.6 mm) photo
Zip
194.9 kb
Z
561 302 - Tubings for pump (Ø 3.2 mm) photo
Zip
196.5 kb
Z
561 304 - Tubings for pump (Ø 6.4 mm) photo
Zip
195.2 kb
Z
561 305 - Tubings for pump (Ø 8 mm) photo
Zip
193.1 kb
Z
561 401 - Autoclavable GL45 stopper + 0.2 μm filter photo
Zip
388.1 kb
Z
562 101 - Dispensing assembly + Y (GL45 - Ø 1.6 mm) photo
Zip
293.5 kb
Z
562 102 - Dispensing assembly + Y (GL45 - Ø 3.2 mm) photo
Zip
318 kb
Z
562 103 - Dispensing assembly + Y (GL45 - Ø 4.8 mm) photo
Zip
317.4 kb
Z
562 104 - Dispensing assembly + Y (GL45 - Ø 6.4 mm) photo
Zip
316.9 kb
Z
562 105 - Dispensing assembly + Y (GL45 - Ø 8 mm) photo
Zip
313.3 kb
Z
562 201 - Tubings + Y (Ø 1.6 mm) photo
Zip
88.3 kb
Z
562 202 - Tubings + Y (Ø 3.2 mm) photo
Zip
213.2 kb
Z
562 203 - Tubings + Y (Ø 4.8 mm) photo
Zip
213.4 kb
Z
562 204 - Tubings + Y (Ø 6.4 mm) photo
Zip
212.2 kb
Z
562 205 - Tubings + Y (Ø 8 mm) photo
Zip
209.6 kb
Z
562 401 - Y connectors (tubings Ø 6.4 - 8 mm) photo
Zip
194.8 kb
Z
562 402 - Y connectors (tubings Ø 3.2 mm) photo
Zip
7.3 Mb

Specifications

Specifications

FlexiPump Pro
Reference 562 000
Dose volume 50 µL to 99 L
Dispensing modes Continuous - Dose - Multi-dose
Multi-dose pause Adjustable from 0.1 to 99.9 s
Watson MarlowTM pump Low pulsation double pump head
Typical precision with inner diameter 3.2 mm tubing 9 mL : ± 0,9 % - 18 mL : ± 0,5 % - 225 mL : ± 0,4 %
Delivered with (tubing inner diameter) Dispensing assemblies (3.2 mm and 6.4 mm)
Flow rates 3 mL/min. to 2.5 L/min.
Traceability USB, RS 232
Connections USB, RS 232, Jack 3.5 mm
Data export ExcelTM, Open Office CalcTM, LIMS
Pump head rotating speed 10 to 550 rpm
Tubing inner diameter (in option) 1.6 mm - 3.2 mm - 4.8 mm - 6.4 mm - 8 mm
Tubing wall thickness 1.6 mm only
Tubings made from TygonTM (for pump head) and silicon
Net weight 5.55 kg
Dimensions (w x d x h) 16.1 x 33.2 x 20.8 cm
Box (w x d x h) 50 x 40 x 40 cm
Gross weight 8.45 kg
Voltage - Frequencies 100-240 V∼ 50-60 Hz
Fuses T 2.5A L 250V 5x20 mm
Power 50 W
International protection marking 31
All stainless steel N
Warranty 1 year
In compliance with ISO 7218 and FDA BAM (Bacteriological Analytical Manual)
Delivered with: 2 peristaltic Watson MarlowTM pump heads, 1 set of 3.2 mm dispensing assembly (nozzle + GL45 bottle connector + filter + tubing + tube weight), 1 set of 6.4 mm dispensing assembly, 1 user’s manual, 1 power cord, 1 USB cable, 1 free pack of blender bags
FlexiPump Pro
Reference 562 000
Dose volume 50 µL to 99 L
Dispensing modes Continuous - Dose - Multi-dose
Multi-dose pause Adjustable from 0.1 to 99.9 s
Watson MarlowTM pump Low pulsation double pump head
Typical precision with inner diameter 3.2 mm tubing 9 mL : ± 0,9 % - 18 mL : ± 0,5 % - 225 mL : ± 0,4 %
Delivered with (tubing inner diameter) Dispensing assemblies (3.2 mm and 6.4 mm)
Flow rates 3 mL/min. to 2.5 L/min.
Traceability USB, RS 232
Connections USB, RS 232, Jack 3.5 mm
Data export ExcelTM, Open Office CalcTM, LIMS
Pump head rotating speed 10 to 550 rpm
Tubing inner diameter (in option) 1.6 mm - 3.2 mm - 4.8 mm - 6.4 mm - 8 mm
Tubing wall thickness 1.6 mm only
Tubings made from TygonTM (for pump head) and silicon
Net weight 5.55 kg
Dimensions (w x d x h) 16.1 x 33.2 x 20.8 cm
Box (w x d x h) 50 x 40 x 40 cm
Gross weight 8.45 kg
Voltage - Frequencies 100-240 V∼ 50-60 Hz
Fuses T 2.5A L 250V 5x20 mm
Power 50 W
International protection marking 31
All stainless steel N
Warranty 1 year
In compliance with ISO 7218 and FDA BAM (Bacteriological Analytical Manual)
Delivered with: 2 peristaltic Watson MarlowTM pump heads, 1 set of 3.2 mm dispensing assembly (nozzle + GL45 bottle connector + filter + tubing + tube weight), 1 set of 6.4 mm dispensing assembly, 1 user’s manual, 1 power cord, 1 USB cable, 1 free pack of blender bags

Calibrated according to the G.L.P (Good Laboratory Practice)

Products made for INTERSCIENCE by Interlab, an ISO 9001 certified company.

Accessories

Accessories

Film for printer

Ref. 410 130

Thermal transfer film

Printer

Ref. 410 150

Thermal printer (RS 232 and USB output)

2L bottle (GL45)

Ref. 413 002

Set of 3 GL45 glass bottle (2L), autoclavable

Foot pedal

Ref. 507 008

For hands-free dispensing. Connection with a 3.5 mm Jack

5L bottle (GL45)

Ref. 513 001

GL45 glass bottle (5L), autoclavable

Independent stand for broth bags

Ref. 513 015

Independent stand for 2 broth bags

Sticker for printer

Ref. 521 012

Set of 2 rolls of 1000 stickers for thermal printer - Label size: 70 x 45 mm

Box dimensions: 20x10x10 cm
Gross weight: 1.00 kg
Quantity: 2x1000

Paper for printer

Ref. 521 110

Set of 2 thermal paper rolls for printer

Box dimensions: 25x10x10 cm
Gross weight: 1.50 kg
Quantity: 2

Handy Gun

Ref. 561 001

Dispensing control with handy gun including electronic start button

Box dimensions: 15x15x5 cm
Gross weight: 0.12 kg
Quantity: 1

Adjustable dispensing arm

Ref. 561 002

For use with other containers

Box dimensions: 34x22x12 cm
Gross weight: 0.60 kg
Quantity: 1

Tubings

Tubings

B FlexiPump Pro dispensing assembly + Y

  • C Tube weights
  • D Trocar
  • E PTFE filter
  • F Autoclavable GL45 stopper
  • G Silicone tubings
  • I Y connectors
  • J TygonTM tubings for pump
  • L Nozzles
  • M Protection cap

C

Tube weights (Ø 3 mm)

Ref. 413 028

Set of 5 tube weights (inner Ø 3 mm)

Box dimensions: 12x8 cm
Gross weight: 0.04 kg
Quantity: 5

M

Nozzle cap for trocar

Ref. 505 017

Set of 10 protection cap for trocar.

Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10

G + J + I

Tubings + Y
(Ø 3.2 mm)

Ref. 513 009

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 3.2 mm

Box dimensions: 35x45 cm
Gross weight: 0.47 kg
Quantity: 5

J

Tubings for pump (Ø 4.8 mm)

Ref. 513 011

Set of 6 TygonTM tubings for pump part (20 cm). inner Ø 4.8 mm

Box: 26x21x11 cm
Gross weight: 0.06 kg
Quantity: 6

D

Trocar

Ref. 513 020

Trocar for broth bags

Box: 12x10x8 cm
Gross weight: 0.03 kg
Quantity: 1

E

PTFE filters 0.2 µm
(Ø 25 mm)

Ref. 513 023

Set of 5 autoclavable filters (0.2 µm) for GL45 bottle

Box: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 5

L + M

Nozzles
(tubings Ø 4.8 - 8 mm)

Ref. 513 024

Set of 5 nozzles + caps for tubings from 4.8 to 8 mm inner diameter

Box: 15x15x6 cm
Gross weight: 0.10 kg
Quantity: 5

C

Tube weights
(Ø 6 mm)

Ref. 513 039

Set of 5 tube weights - Ø 6 mm

Box: 8x12 cm
Gross weight: 0.30 kg
Quantity: 5

L + M

Nozzles (tubings Ø 1.6 - 3.2 mm)

Ref. 513 040

Set of 5 nozzles + caps for tubings from 1.6 to 3.2 mm inner diameter

Box: 8x12 cm
Gross weight: 0.07 kg
Quantity: 5

M

Nozzle cap
(Ø 1.6 - 3.2 mm)

Ref. 513 048

Set of 10 protection cap for nozzles. For tubings from 1.6 to 3.2 mm inner diameter.

Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10

J

Tubings for pump (Ø 1.6 mm)

Ref. 561 301

Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 1.6 mm

Box dimensions: 26x21.1x11 cm
Gross weight: 0.03 kg
Quantity: 6

J

Tubings for pump
(Ø 3.2 mm)

Ref. 561 302

Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 3.2 mm

Box dimensions: 26x21.1x11 cm
Gross weight: 0.04 kg
Quantity: 6

J

Tubings for pump
(Ø 6.4 mm)

Ref. 561 304

Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 6.4 mm

Box dimensions: 26x21.1x11 cm
Gross weight: 0.07 kg
Quantity: 6

J

Tubings for pump (Ø 8 mm)

Ref. 561 305

Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 8 mm

Box dimensions: 26x21.1x11 cm
Gross weight: 0.08 kg
Quantity: 6

E + F

Autoclavable GL45 stopper + 0.2 µm filter

Ref. 561 401

Autoclavable GL45 stopper + 0.2 µm filter

Box dimensions: 10x12 cm
Gross weight: 0.04 kg
Quantity: 1

B

Dispensing assembly + Y
(GL45 - Ø 1.6 mm)

Ref. 562 101

Set of silicone tubings inner ø 1.6 mm + GL45 screw cap + tube weight + nozzle + filter + "Y"

Box dimensions: 39x27x15 cm
Gross weight: 0.13 kg
Quantity: 1

B

Dispensing assembly + Y
(GL45 - Ø 3.2 mm)

Ref. 562 102

Set of silicone tubings inner Ø 3.2 mm + GL45 screw cap + tube weight + nozzle + filter + "Y"

Box dimensions: 20x20x10 cm
Gross weight: 0.20 kg
Quantity: 1

B

Dispensing assembly + Y
(GL45 - Ø 4.8 mm)

Ref. 562 103

Set of silicone tubings inner Ø 4.8 mm + GL45 screw cap + tube weight + nozzle + filter + "Y"

Box dimensions: 35x21x10 cm
Gross weight: 0.25 kg
Quantity: 1

B

Dispensing assembly + Y
(GL45 - Ø 6.4 mm)

Ref. 562 104

Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + filter + "Y"

Box dimensions: 25x20x10 cm
Gross weight: 0.25 kg
Quantity: 1

B

Dispensing assembly + Y
(GL45 - Ø 8 mm)

Ref. 562 105

Set of silicone tubings inner Ø 8 mm + GL45 screw cap + tube weight + nozzle + filter + "Y"

Box dimensions: 35x21x10 cm
Gross weight: 0.25 kg
Quantity: 1

G + J + I

Tubings + Y
(Ø 1.6 mm)

Ref. 562 201

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 1.6 mm

Box dimensions: 25x25x10 cm
Gross weight: 0.40 kg
Quantity: 5

G + J + I

Tubings + Y
(Ø 3.2 mm)

Ref. 562 202

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 3.2 mm

Box dimensions: 30x20x10 cm
Gross weight: 0.50 kg
Quantity: 5

G + J + I

Tubings + Y
(Ø 4.8 mm)

Ref. 562 203

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 4.8 mm

Box dimensions: 30x20x10 cm
Gross weight: 0.65 kg
Quantity: 5

G + J + I

Tubings + Y
(Ø 6.4 mm)

Ref. 562 204

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 6.4 mm

Box dimensions: 30x20x20 cm
Gross weight: 0.65 kg
Quantity: 5

G + J + I

Tubings + Y
(Ø 8 mm)

Ref. 562 205

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 8 mm

Box dimensions: 30x20x20 cm
Gross weight: 0.70 kg
Quantity: 5

I

Y connectors
(tubings Ø 6.4 - 8 mm)

Ref. 562 401

Set of 6 "Y" connectors for Ø 6.4 and 8 mm tubings

Box dimensions: 12x8 cm
Gross weight: 0.02 kg
Quantity: 6

I

Y connectors
(tubings Ø 3.2 mm)

Ref. 562 402

Set of 6 "Y" connectors for Ø 3.2 mm tubings

Box dimensions: 12x8 cm
Gross weight: 0.05 kg
Quantity: 6
