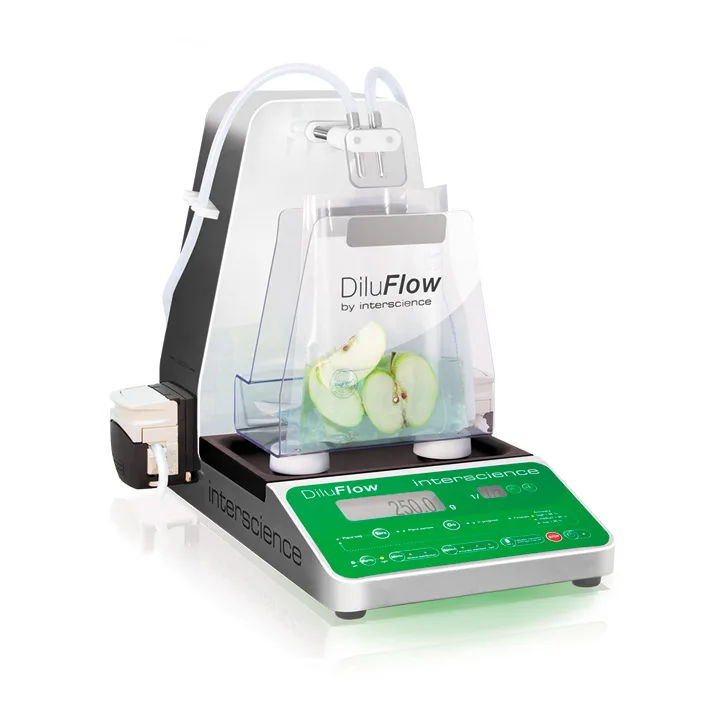

DiluFlow Pro
Gravimetric dilutor 5 kg
Ref 502 105 (single pump)
Ref 502 205 (double pump)
THE ESSENTIAL : TWICE AS FAST AND ACCURATE
Booster kit - ref. 511 000
The DiluFlow Pro automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 5 kg. Its robotic arm enables easy work under a laminar flow cabinet.
- 225 mL in 10 s
- Dilution factor : 1/2 to 1/99
- Dilution accuracy : > 99%*
- Max weight : 5000 g
* in Standard or Accurate mode (in optimal conditions)
User-friendly and efficient
With the press of only 2 keys, the DiluFlow Pro gravimetric dilutor provides an accurate dilution of all types of samples from 10 to 375 g (at 1/10th). In compliance with ISO 7218 and ISO 6887.
Robotic arm and protective plate
The robotic arm enables you to place the sample safely in the bag without risk of cross contamination. Tested for over 1.3 million cycles, its reliability is guaranteed. The protective plate protects the beaker from contact with the sample.
Ultra-low profile
Widest possible opening for the bag and lowest loading threshold on the market ! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.
Removable drip tray
In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED
GeckoGrip holding system
This patented system replaces adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED
Traceability of results
The DiluFlow Pro exports the analysis data to the printer and to the supervision software (Export data to ExcelTM, Open OfficeTM, CSV file, printer).
LightCode
LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.
Green
Accuracy > 98%
Orange
Accuracy > 95%
Red
Accuracy < 95%
Blue
Scale stabilizing
Magnetic BagOpen
The shape of the bag rack allows easy and ergonomic insertion of the bag. Its attachment by 2 magnetic points ensures a better distribution of the weight of the sample and contributes to the stability of the weighing platform.
PATENTED SHAPE
New
Pure water, instantly, with Steriwater
Steriwater is an instant solution for the production of sterile water in the laboratory. This solution simplifies sample dilution with sterile water using a DiluFlow gravimetric dilutor and instaBAG dehydrated media bags. Set-up is quick and easy.
< !—>
Applications
The DiluFlow Pro gravimetric dilutor is used for sample preparation for microbiological analysis. It is adapted to the sample pooling protocol and allows a sample weight of up to 375 g diluted to 1/10th with the Jumbo kit and is also adapted to the preparation protocol for PCR analysis. It also allows the weighing of 25 g for the research of quality indicators.
Vidéos
From sample preparation to bacterial analyses - Overview
Download the videoFrom sampling to bacterial counting - Overview
Download the videoBagSystem - Increase your sample preparation
Download the videoDiluFlow - Gravimetric dilutors: Overview of the range
Download the videoUnboxing - Gravimetric dilutors: DiluFlow Pro model
Download the videoSteriwater - instant water sterilization solution: Overview
Download the videoRessources
Spécifications
| DiluFlow Pro 5 kg (single pump) | DiluFlow Pro 5 kg (double pump) | |
| Reference | 502 105 | 502 205 |
| OVERVIEW | ||
| 304L stainless steel body | N | N |
| BagOpen height < 30 cm | N | N |
| Removable drip tray (Patented) | N | N |
| BagOpen with GeckoGrip system (Patented) | N | N |
| Magnetic stand for BagOpen (Patented shape) | N | N |
| LightCode: color status LED | N | N |
| Compatible with Booster Kit | N | N |
| Stainless casting electromechanical core | N | N |
| Robotic arm | N | N |
| Compatible with Jumbo kit | N | N |
| Protection for dispensing nozzle | N | N |
| SPECIFICATIONS | ||
| Resolution up to 200 g | 0.01 g | |
| Weighing range | 0.1 to 5000 g | |
| Max weight without support | 7000 g | |
| Weighing accuracy | 0 g to 100 g : ± 0.05 g / 100 g to 5000 g : ± 0.1% | |
| Dilution factor | 1/2 to 1/99 | |
| Minimum weight required for dilution | 5 g | |
| Minimum weight required for distribution | 5 g | |
| Dilution/distribution accuracy | > 99% in Standard or Accurate mode (in optimal conditions) | |
| Dilution time for a 25g sample diluted to 1/10 | < 9 s (with Booster Kit in Fast mode) | |
| Dilution time for a 375g sample diluted to 1/10 | < 80 s (with Booster Kit in Fast mode) | |
| Distribution time for 90 mL | < 7 s (with Booster Kit in Fast mode) | |
| Distribution time for 225 mL | < 10 s (with Booster Kit in Fast mode) | |
| Max number of pumps | 2 integrated | |
| Dilution/distribution mode | Fast / Standard / Accurate | |
| Language | English | |
| Voltage - Frequencies | 100-240 V~ 50/60 Hz | |
| Fuses | T3.15A L 250V 5x20 mm | |
| Power max. | 60 W | |
| Warranty | 1 year | |
| International protection marking | IP32 | |
| Spare parts availability | 10 years | |
| In compliance with | ISO 7218 - ISO 6887 | |
| TRACEABILITY | ||
| Traceability | Printer / Supervision software (export to ExcelTM/ OpenOfficeTM, CSV file, printer) | |
| Exported data | Sample weight / Total weight / Dilution factor / Dilution accuracy / Right or left pump + with supervision software: Sample number / Name of operator / Date / Time | |
| Connection | RS232 output for printer / USB port for computer / Jack output for foot pedal connection | |
| WEIGHT AND DIMENSIONS | ||
| Dimensions (w x d x h): DiluFlow | 31.3 x 42.1 x 37.7 cm | 37 x 42.1 x 37.7 cm |
| Dimensions (w x d x h): DiluFlow + Booster Kit (Ref. 511 000) | 36.8 x 42.1 x 37.7 cm (1 Booster Kit) | 48.7 x 42.1 x 37.7 cm (2 Booster Kits) |
| Dimensions (w x d x h): DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) | 47.1 x 42.9 x 54.1 cm | 47.1 x 42.9 x 54.1 cm |
| Dimensions (w x d x h): DiluFlow + Jumbo Kit (Ref. 505 006) | 46.5 x 42.1 x 37.7 cm | 46.5 x 42.1 x 37.7 cm |
| Net weight: DiluFlow | 12.30 kg | 14.80 kg |
| Net weight: DiluFlow + Booster Kit (Ref. 511 000) | 12.60 kg (1 Booster Kit) | 15.40 kg (2 Booster Kits) |
| Net weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) | 13.40 kg | 15.90 kg |
| Net weight: DiluFlow + Jumbo Kit (Ref. 505 006) | 13 kg | 15.50 kg |
| Box (w x d x h): DiluFlow | 55 x 55 x 53 cm | 55 x 55 x 53 cm |
| Box (w x d x h): Jumbo Kit (Réf. 505 006) | 40 x 30 x 18 cm | 40 x 30 x 18 cm |
| Gross weight: DiluFlow | 18.10 kg | 21.20 kg |
| Gross weight: DiluFlow + Booster Kit (Ref. 511 000) | 18.40 kg (1 Booster Kit) | 21.50 kg (2 Booster Kits) |
| Gross weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) | 20.10 kg | 23.20 kg |
| Gross weight: DiluFlow + Jumbo Kit (Ref. 505 006) | 18.80 kg (2 boxes) | 21.90 kg (2 boxes) |
| DELIVERED WITH | ||
|
1 drip tray 400, 1 or 2 pumps, 1 protection for dispensing nozzles, 1 dispensing assembly (GL45 - Ø 6.4 mm) per pump, 1 USB cable , 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutors, 1 user manual, 1 set of 10 GeckoGrip, 1 set of adhesive gum, 1 Allen wrench, blender bags samples, 1 conformity certificate / warranty card. | 1 drip tray 400, 1 or 2 pumps, 1 protection for dispensing nozzles, 1 dispensing assembly (GL45 - Ø 6.4 mm) per pump, 1 USB cable , 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutors, 1 user manual, 1 set of 10 GeckoGrip, 1 set of adhesive gum, 1 Allen wrench, blender bags samples, 1 conformity certificate / warranty card. |
Conforme à une utilisation selon les Bonnes Pratiques de Laboratoire (BPL).
Produit fabriqué pour Interscience par Interlab, entreprise certifiée ISO 9001.
Accessoires
Film for printer
Printer
BagOpen 400 for dilutors
Weighing platform
Tongs platform
Adjustable distribution system
Jumbo kit
GeckoGrip for BagOpen 400/3500
Integrable stand for broth bags
BagOpen 80/100 mL for dilutors
GeckoGrip for BagOpen 80/100
BagOpen 400 for dilutors (stainless steel)
Foot pedal
Booster kit
5L bottle (GL45)
Certified standard weight (500 g)
Independent stand for broth bags
Holder for dispensing assembly set with 0.2 µm filter
Sticker for printer
Paper for printer
Film for printer
Thermal transfer film for dataLink printer
Box dimensions: 12x10x8 cm
Gross weight: 0.08 kg
Quantity: 1
Printer
Thermal printer (RS 232 and USB output). Delivered with 1 thermal transfer film + power cable + USB cable
Box dimensions: 37x35x25 cm
Gross weight: 3.50 kg
Quantity: 1
BagOpen 400 for dilutors
Stand for 400 mL bags.
Box: 22x25x12 cm
Gross weight: 0,50 kg
Quantity: 1
Weighing platform
To weigh and support a container. Non delivered with container.
Box: 25x15x10 cm
Gross weight: 0.25 kg
Quantity: 1
Tongs platform
To hold a tube (ø 10 to 60 mm). Non delivered with tube.
Adjustable distribution system
Ideal to fill various containers
Jumbo kit
BagOpen 3500 + 3500 mL DripTray + anti splash extension for nozzle holder + GeckoGrip
GeckoGrip for BagOpen 400/3500
Set of 10 adhesives for DiluFlow BagOpen 400 and 3500
Integrable stand for broth bags
Integrated to the unit, to hold one broth bag. Delivered with 4 screws + Torx screwdriver
BagOpen 80/100 mL for dilutors
Bag holder for 80/100 mL bags for DiluFlow
GeckoGrip for BagOpen 80/100
Set of 10 adhesives for DiluFlow BagOpen 80/100
BagOpen 400 for dilutors (stainless steel)
Stainless steel stand for 400 mL bags
Foot pedal
For hands-free dispensing. Connection with a 3.5 mm Jack
Box: 15x10x10 cm
Gross weight: 0.15 kg
Quantity: 1
Booster kit
Booster pump + 2 silicone tubings for pump part (20 cm each), inner ø 6.4 mm + 2 “Y”
5L bottle (GL45)
GL45 glass bottle (5L), autoclavable
Box: 37x35x25 cm
Gross weight: 1.70 kg
Quantity: 1
Certified standard weight (500 g)
500 g COFRAC calibrated weight, type F1
Independent stand for broth bags
Independent stand for 2 broth bags
Box: 59x37x29 cm
Gross weight: 1.90 kg
Quantity: 1
Holder for dispensing assembly set with 0.2 µm filter
1 holder for dispensing assembly with 0.2 µm filter + 1 knurled head screw
Box dimensions: 13x11.5x8.5 cm
Gross weight: 0.105 kg
Quantity: 1
Sticker for printer
Set of 2 rolls of 1000 stickers for thermal printer - Label size: 70 x 45 mm
Box dimensions: 20x10x10 cm
Gross weight: 1.00 kg
Quantity: 2x1000
Paper for printer
Set of 2 thermal paper rolls for printer
Box dimensions: 25x10x10 cm
Gross weight: 1.50 kg
Quantity: 2
Tubulures
A dispensing assembly
B dispensing assembly for Booster Kit
- C Tube weights
- D Trocar
- E PTFE filter
- F Autoclavable GL45 stopper
- G Silicone tubings
- H Straight connectors
- I Y connectors
- J TygonTM tubings for pump
- K TygonTM tubings for pump with filter 0.2 µm
- L Nozzles
- M Protection cap
Adjustable nozzles
(L 23.5 cm - tubings Ø 3.2 mm)
Adjustable nozzles (L 12 cm - tubings Ø 6.4 mm)
Nozzle cap for trocar
Booster kit dispensing assembly
(GL45 - Ø 3.2 mm)
Tubings + Y
(Ø 3.2 mm)
Tubings for pump (Ø 4.8 mm)
Dispensing assembly for broth bags (Ø 4.8 mm)
Trocar
PTFE filters 0.2 µm
(Ø 25 mm)
Nozzles
(tubings Ø 4.8 - 8 mm)
Tube weights
(Ø 6 mm)
Nozzles (tubings Ø 1.6 - 3.2 mm)
Booster kit dispensing assembly (GL45 - Ø 6.4 mm)
Tubings + Y
(Ø 6.4 mm)
Dispensing assembly
(GL45 - Ø 6.4 mm)
Tubings
(Ø 6.4 mm)
Dispensing assembly
(GL45 - Ø 3.2 mm)
Tubings
(Ø 3.2 mm)
Nozzle cap
(Ø 1.6 - 3.2 mm)
Dispensing assembly with 0.2 µm filter (GL45 - Ø 6.4 mm)
Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm)
Tubings for pump with filter 0.2 µm (Ø 6.4 mm)
Tubings for pump
(Ø 3.2 mm)
Tubings for pump
(Ø 6.4 mm)
Autoclavable GL45 stopper + 0.2 µm filter
Straight connectors (tubings Ø 6.4 - 8 mm)
Straight connectors (tubings Ø 3.2 - 4.8 mm)
Y connectors
(tubings Ø 6.4 - 8 mm)
Y connectors
(tubings Ø 3.2 mm)
Adjustable nozzles
(L 23.5 cm - tubings Ø 3.2 mm)
Set of 5 adjustable nozzles (Length: 23.5 cm - For inner Ø 3.2 mm tubings)
Box dimensions: 27x42 cm
Gross weight: 0.35 kg
Quantity: 5
Adjustable nozzles (L 12 cm - tubings Ø 6.4 mm)
Set of 5 adjustable nozzles (Length: 12 cm - For inner Ø 6.4 mm tubings)
Box: 14x8 cm
Gross weight: 0.15 kg
Quantity: 5
Nozzle cap for trocar
Set of 10 nozzle caps for trocar
Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10
Booster kit dispensing assembly
(GL45 - Ø 3.2 mm)
Set of silicone tubings inner Ø 3.2 mm + GL45 screw cap + tube weight + nozzle + filter "Y"
Box: 39x27x15 cm
Gross weight: 0.70 kg
Quantity: 1
Tubings + Y
(Ø 3.2 mm)
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 3.2 mm
Box dimensions: 35x45 cm
Gross weight: 0.47 kg
Quantity: 5
Tubings for pump (Ø 4.8 mm)
Set of 6 TygonTM tubings for pump part (20 cm). inner Ø 4.8 mm
Box: 26x21x11 cm
Gross weight: 0.06 kg
Quantity: 6
Dispensing assembly for broth bags (Ø 4.8 mm)
Distribution assembly Ø 4.8 mm for broth bags
Box dimensions: 20x20 cm
Gross weight: 0.12 kg
Quantity: 1
Trocar
Trocar for broth bags
Box: 12x10x8 cm
Gross weight: 0.03 kg
Quantity: 1
PTFE filters 0.2 µm
(Ø 25 mm)
Set of 5 autoclavable filters (0.2 µm) for GL45 bottle
Box: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 5
Nozzles
(tubings Ø 4.8 - 8 mm)
Set of 5 nozzles + caps for tubings from 4.8 to 8 mm inner diameter
Box: 15x15x6 cm
Gross weight: 0.10 kg
Quantity: 5
Tube weights
(Ø 6 mm)
Set of 5 tube weights - Ø 6 mm
Box: 8x12 cm
Gross weight: 0.30 kg
Quantity: 5
Nozzles (tubings Ø 1.6 - 3.2 mm)
Set of 5 nozzles + caps for tubings from 1.6 to 3.2 mm inner diameter
Box: 8x12 cm
Gross weight: 0.07 kg
Quantity: 5
Booster kit dispensing assembly (GL45 - Ø 6.4 mm)
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + filter + "Y"
Box dimensions: 23x35 cm
Gross weight: 0.24 kg
Quantity: 1
Tubings + Y
(Ø 6.4 mm)
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 6.4 mm
Box dimensions: 35x45 cm
Gross weight: 0.63 kg
Quantity: 5
Dispensing assembly
(GL45 - Ø 6.4 mm)
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + filter
Box dimensions: 23x35 cm
Gross weight: 0.22 kg
Quantity: 1
Tubings
(Ø 6.4 mm)
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + straight connectors) - inner Ø 6.4 mm
Box dimensions: 35x45 cm
Gross weight: 0.59 kg
Quantity: 5
Dispensing assembly
(GL45 - Ø 3.2 mm)
Set of silicone tubings inner Ø 3.2 mm + GL45 screw cap + tube weight + nozzle + filter
Box dimensions: 23x35 cm
Gross weight: 0.20 kg
Quantity: 1
Tubings
(Ø 3.2 mm)
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + straight connectors) - inner Ø 3.2 mm
Box dimensions: 35x45 cm
Gross weight: 0.45 kg
Quantity: 5
Nozzle cap
(Ø 1.6 - 3.2 mm)
Set of 10 protection cap for nozzles. For tubings from 1.6 to 3.2 mm inner diameter.
Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10
Dispensing assembly with 0.2 µm filter (GL45 - Ø 6.4 mm)
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + filter + tube weight + nozzle + 0.2 µm filter
Box dimensions: 22x36x10 cm
Gross weight: 0.25 kg
Quantity:1
Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm)
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + filter + tube weight + nozzle + "Y" + 2 filters 0.2 µm
Box dimensions: 22x36x10 cm
Gross weight: 0.38 kg
Quantity:1
Tubings for pump with filter 0.2 µm (Ø 6.4 mm)
Set of 2 TygonTM tubing for pump part (50 cm) + 2 filters 0.2 µm. inner Ø 6.4 mm
Box dimensions: 22x36x10 cm
Gross weight: 0.23 kg
Quantity: 2
Tubings for pump
(Ø 3.2 mm)
Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 3.2 mm
Box dimensions: 26x21.1x11 cm
Gross weight: 0.04 kg
Quantity: 6
Tubings for pump
(Ø 6.4 mm)
Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 6.4 mm
Box dimensions: 26x21.1x11 cm
Gross weight: 0.07 kg
Quantity: 6
Autoclavable GL45 stopper + 0.2 µm filter
Autoclavable GL45 stopper + 0.2 µm filter
Box dimensions: 10x12 cm
Gross weight: 0.04 kg
Quantity: 1
Straight connectors (tubings Ø 6.4 - 8 mm)
Set of 6 straight connectors for inner Ø 6.4 and 8 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.02 kg
Quantity: 6
Straight connectors (tubings Ø 3.2 - 4.8 mm)
Set of 6 straight connectors for inner Ø 4.8 and 3.2 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.01 kg
Quantity: 6
Y connectors
(tubings Ø 6.4 - 8 mm)
Set of 6 "Y" connectors for Ø 6.4 and 8 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.02 kg
Quantity: 6
Y connectors
(tubings Ø 3.2 mm)
Set of 6 "Y" connectors for Ø 3.2 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.05 kg
Quantity: 6
Produits complémentaires
Products marked with an asterisk are compatible with the DiluFlow Pro after the purchase of an accessory :
* with Jumbo kit option - Ref 505 006
** with BagOpen 80/100 mL option - Ref 505 014
