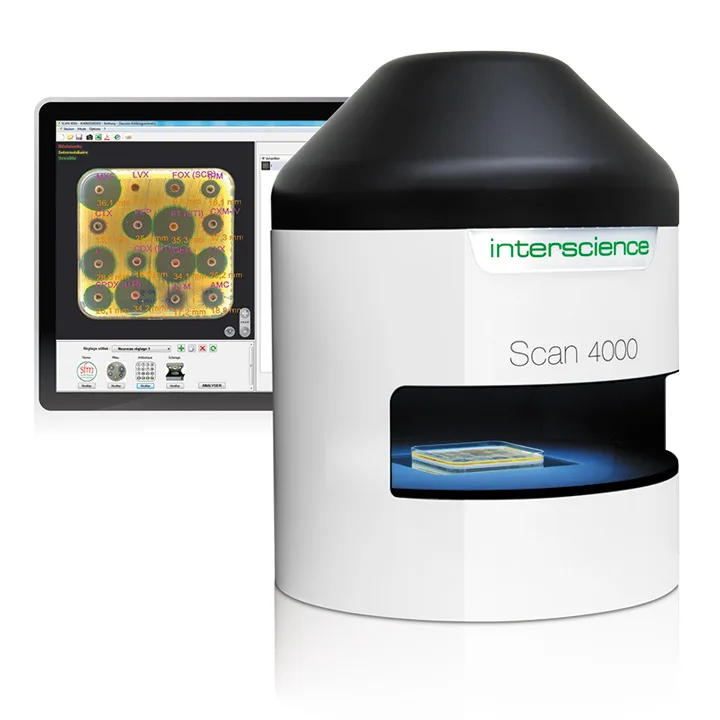

Scan 4000

Ultra HD inhibition zone reader

State-of-the-art technology

Ref. 438 000

Scan 4000

Ultra HD inhibition zone reader

State-of-the-art technology

Ref. 438 000

Scan 4000 is an ultra HD inhibition zone reader. It has been designed for the pharmaceutical industries, medical research and animal health. It reads 120 mm square dishes 120 mm and round dishes up to 150 mm. Scan 4000 also counts colonies on Petri dishes.

  • Inhibition zone measurement accuracy : ± 0.2 mm
  • Fast : up to 16 inhibition zones in 2 to 4 seconds
  • Protocols : wells, peni-cylinders, paper disks
  • Interpretation systems : EUCAST, CA-SFM, CLSI and customizable
  • Automatic colony counting

Présentation

Free trial version of the Scan software

Download to test its efficiency with your samples.


Scan demo software


Square petri dishes

Quick results

Scan 4000 reads up to 16 antibiotics on a Petri dish in just 2-4 seconds.

The result is categorized SIR :

Green : susceptible
Yellow : intermediate
Red : resistant


Pills on Mueller Hinton before/after reading

Detection on all Petri dishes

Scan 4000 automatically detects the peni-cylinders, present or removed, made of steel or plastic. It also reads agar wells or paper disks (any brand). Add/remove disks manually.The inhibition zones can also be resized. Scan 4000 allows reading on blood, chocolate or Mueller Hinton agar. In its automatic colony counter mode, Scan 4000 counts colonies on round or square Petri dishes.


Inhibition zone reading - 120 mm square diameter dishes

Ø 90 mm - Ø 150 mm


 Inhibition zone reading - 120 mm square dishes

Square 120 mm




Peni-cylinders
on TSA agar



Removed peni-cylinders
on TSA agar



Agar wells
on TSA



Paper disks
on blood agar



Paper disks
on Mueller Hinton agar


Colony counting - en masse and surface

Pour and surface


Colony counting - Spiral

Spiral



 Colony counting - Filtration membranes

Filtration membrane



21 CFR Part 11 included

The Scan software complies with FDA recommendations, particularly on audit trail and security of results.

The user account management, integrated in the software, allows the creation of up to 5 levels of rights. The Supervisor-Administrator has all the roles while the other roles are subject to certain rights. Password management secures user accounts.


Picto 21 CFR Part 11


Scan 4000 - 21 CFR Part 11 intégré

Traceability


Traceability export data - Connection SIL/LIMS

SIL/LIMS connection


 Import data traceability - bar code

Bar-code



 Import data traceability - DataLink

dataLink

Scan 4000 connects to the LIMS in bi-directionality and can be connected to the diluter and plater via dataLink traceability system.


Traceability export data - Connection SIL/LIMS

SIL/LIMS connection


 Traceability export data - 21 CFR Part 11

Audit trail



Traceability export data - Saving and archiving sessions

Backup and archive sessions


Traceability export data - PDF

PDF




Traceability export data - JPG

JPG, PNG, BMP


 Traceability export data

ExcelTM OpenOfficeTM


 Traceability export data - CSV

CSV

Scan 4000 offers multiple export possibilities to save manual input time. It also increases the security and quality of your analyses.

Usually, Petri dishes are thrown away after counting and no further verification is possible in the event of a claim. With Scan 4000, all reports are archived.

Export your results to your PC or archive them in CSV, ExcelTM, OpenOfficeTM, PDF, SCA, BIO format. You can also export images from the camera in JPEG, PNG and BMP format.

Printed results

All data, images, photos and results are exportable in printed reports, sca, pdf, jpg, xls, csv.


Scan 4000 ZI rapport imprimé EN


Printed report example

Integrated databases

The Scan software is equipped with a database of antibiotics from the French Society of Microbiology (CA-SFM 2020), the European Committee of Antibiograms (EUCAST 2020), the Clinical and Laboratory Standards Institute (CLSI). This database can be modified by the user.


Logo - SFM - Société Française de Microbiologie


Clinical and Laboratory Standards Institute - CLSI


Logo EUCAST

Warranty

Scan 4000 inhibition zone readers have 3-YEAR warranty (parts and labour) just by sending the warranty card back.


3 year warranty

Applications

Scan 4000 makes it possible to check the effectiveness of an antibiotic on a microorganism by measuring the zone of inhibition. In addition, it adapts to perform titration and/or antibiotic dosage in the pharmaceutical industry. In the field of animal health, the Scan evaluates antimicrobial resistance with its SIR interpretation.


Pharmaceutical


Veterinary

Vidéos

Vidéos

From sample preparation to bacterial analyses - Overview

Download the video

Scan 4000 - Inhibition zone reader : Overview

Download the video

Unboxing - Automatic colony counters: Scan 4000 model

Download the video

dataLink pro - Labelling on the edge of the Petri dish

Download the video

Téléchargements

Téléchargements

Title
Language
Type
Size
Download
Scan 4000 brochure
English
PDF
7.9 Mb
Scan 4000 Inhibition zone reader technical file
English
PDF
306.4 kb
Bar-code reader technical file
English
PDF
235.3 kb
EC Certificate
English
PDF
98.6 kb
UKCA Certificate
English
PDF
101.2 kb
ISO 9001-2015 Certificate
English
PDF
789.1 kb
21 CFR Certificate
English
PDF
198.4 kb
Purosol Safety Data Sheet
English
PDF
113.9 kb
Flyer dataLink
English
PDF
1.4 Mb
English catalog
English
PDF
46.9 Mb
Z
Scan 4000 - Inhibition zone photo
Zip
800.3 kb
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Z
410 100 - dataLink photo
Zip
817.7 kb
Z
410 100 - dataLink 2 photo
Zip
842.5 kb
Z
410 130 - Film for printer photo
Zip
322.6 kb
Z
522 000 - Bar-code reader photo
Zip
499 kb
Title
Language
Type
Size
Download

Spécifications

Spécifications

Scan 4000 inhibition zones
Reference 438 000
Camera Ultra HD CMOS color camera
Lens HD japanese lens
Zoom x 69
Resolution 5 megapixels
Counting time Up to 1000 colonies per second
Minimal size of a colony 0.05 mm
Inhibition zone measurement accuracy ± 0.2 mm
Lighting technology White Dome LED
Lighting system Automatic with 7 combinations, top and/or bottom light, white or black background
Counting Automatic with manual control
Counting on Petri dishes Ø 55 to 150 mm round Petri dishes and 120 mm square Petri dishes
Inhibition zone reading on Petri dishes Ø 90 mm - Ø 100 mm round Petri dishes and 120 mm square Petri dishes
Inhibition zone measurement Automatic with manual control
Colony counter N
Inhibition zone reader N
Automatic detection of the Petri dish N
100% reading of the Petri dish N
Counting on pour, surface, Spiral and circle plated Petri dishes N
Creation of polygonal exclusion zones N
Manual control to add or substract colonies N
LIMS/SIL connection N
USB connection N
Compatible with dataLink traceability system N
All stainless steel N
Automatic detection Paper disks (several brands simultaneously), wells, peni-cylinder (steel, plastic), with possibility to add or remove manually
Antibiotics detection Automatic with possibility of adding/removing manually
Color detection 7 colors on the same dish + 1 color to exclude
Number of antibiotic paper disks Up to 16 antibiotics on 120 mm square dish
Reading time 16 inhibition zone reading between 1 to 4 seconds max
Interpretation system CA-SFM Human health / EUCAST / CA-SFM Veterinary / CLSI (Clinical, Laboratory Standards Institute) / Customizable list
Data export Printed report, PDF, png, jpg, bmp, ExcelTM recountable session
Data security Modified data traceability in conformity with 21 CFR part 11 / Connection with LIMS/SIL systems
Results/Traceability Image / saple number and antibiotic name / bacteria name / read diameter / result with category SIR by color code / critical diameter mini and maxi / comments / date / time
Languages French, english, japanese, chinese, russian, spanish, german
Dimensions (w x d x h) 47 x 47 x 64 cm
Weight 25 kg
Box (w x d x h) 60 x 63 x 80 cm
Gross weight 32 kg
Voltage - Frequencies 100-240 V~ 50-60 Hz
Fuses T3,15A L 250V 5x20 mm
Power 140 W
International protection marking 00
Processor Intel i5 or better, 2.8 GHz, quad core recommended
Operating sytem WindowsTM 10 or 11
RAM 4 GB (2 GB of RAM must be reserved for the exclusif use of the Scan)
Equipments USB 3.0 port free
Screen 1280 X 1024 pixels or superior
Software updates after recording the warranty card 3 years
Warranty after recording the warranty card 3 years
In compliance with 21 CFR Part 11, ISO 7218 and AOAC 977.27
Delivered with: 1 Scan software, 1 connection cable, 3 validation plates, 1 user's manual
Scan 4000 inhibition zones
Reference 438 000
Camera Ultra HD CMOS color camera
Lens HD japanese lens
Zoom x 69
Resolution 5 megapixels
Counting time Up to 1000 colonies per second
Minimal size of a colony 0.05 mm
Inhibition zone measurement accuracy ± 0.2 mm
Lighting technology White Dome LED
Lighting system Automatic with 7 combinations, top and/or bottom light, white or black background
Counting Automatic with manual control
Counting on Petri dishes Ø 55 to 150 mm round Petri dishes and 120 mm square Petri dishes
Inhibition zone reading on Petri dishes Ø 90 mm - Ø 100 mm round Petri dishes and 120 mm square Petri dishes
Inhibition zone measurement Automatic with manual control
Colony counter N
Inhibition zone reader N
Automatic detection of the Petri dish N
100% reading of the Petri dish N
Counting on pour, surface, Spiral and circle plated Petri dishes N
Creation of polygonal exclusion zones N
Manual control to add or substract colonies N
LIMS/SIL connection N
USB connection N
Compatible with dataLink traceability system N
All stainless steel N
Automatic detection Paper disks (several brands simultaneously), wells, peni-cylinder (steel, plastic), with possibility to add or remove manually
Antibiotics detection Automatic with possibility of adding/removing manually
Color detection 7 colors on the same dish + 1 color to exclude
Number of antibiotic paper disks Up to 16 antibiotics on 120 mm square dish
Reading time 16 inhibition zone reading between 1 to 4 seconds max
Interpretation system CA-SFM Human health / EUCAST / CA-SFM Veterinary / CLSI (Clinical, Laboratory Standards Institute) / Customizable list
Data export Printed report, PDF, png, jpg, bmp, ExcelTM recountable session
Data security Modified data traceability in conformity with 21 CFR part 11 / Connection with LIMS/SIL systems
Results/Traceability Image / saple number and antibiotic name / bacteria name / read diameter / result with category SIR by color code / critical diameter mini and maxi / comments / date / time
Languages French, english, japanese, chinese, russian, spanish, german
Dimensions (w x d x h) 47 x 47 x 64 cm
Weight 25 kg
Box (w x d x h) 60 x 63 x 80 cm
Gross weight 32 kg
Voltage - Frequencies 100-240 V~ 50-60 Hz
Fuses T3,15A L 250V 5x20 mm
Power 140 W
International protection marking 00
Processor Intel i5 or better, 2.8 GHz, quad core recommended
Operating sytem WindowsTM 10 or 11
RAM 4 GB (2 GB of RAM must be reserved for the exclusif use of the Scan)
Equipments USB 3.0 port free
Screen 1280 X 1024 pixels or superior
Software updates after recording the warranty card 3 years
Warranty after recording the warranty card 3 years
In compliance with 21 CFR Part 11, ISO 7218 and AOAC 977.27
Delivered with: 1 Scan software, 1 connection cable, 3 validation plates, 1 user's manual

Conforme à l'utilisation selon les Bonnes Pratiques de Laboratoire (BPL).

Produit fabriqué pour Interscience par Interlab, entreprise certifiée ISO 9001.

Accessoires

Accessoires

Stickers for printer

Ref. 410 120

2 rolls of 2500 labels for thermal printer - Label size: 45 x 10 mm

Box dimensions: 18x25 cm
Gross weight: 0.47 kg
Quantity: 2x2500

Film for printer

Ref. 410 130

Thermal transfer film

Box dimensions: 12x10x8 cm
Gross weight: 0.08 kg
Quantity: 1

Optical cleaner + wipes

Ref. 435 702

Optical cleaner and wipes

Box dimensions: 25x19x5 cm
Gross weight: 0.32 kg
Quantity: 1

Stickers for printer (dataLink pro)

Ref. 439 051

Set of 3 Labels roll for dataLink pro printer
Label size: 5x50mm

Box dimensions: 25.7x21.5x10.5 cm
Gross weight: 0.6 kg
Quantity: 3x2500

Film for printer (dataLink pro)

Ref. 439 052

Thermal transfer film for dataLink pro printer

Box dimensions: 12.88x11.5x8.5 cm
Gross weight: 0.22 kg
Quantity: 1

Bar-code reader

Ref. 522 000

Bar-code reader (1D)

Box dimensions: 26x16.5x11 cm
Gross weight: 0.66 kg
Quantity: 1

IQOQ

Ref. 800 240

IQOQ document for Scan 4000

Quantity: 1
