Ref. 439 200

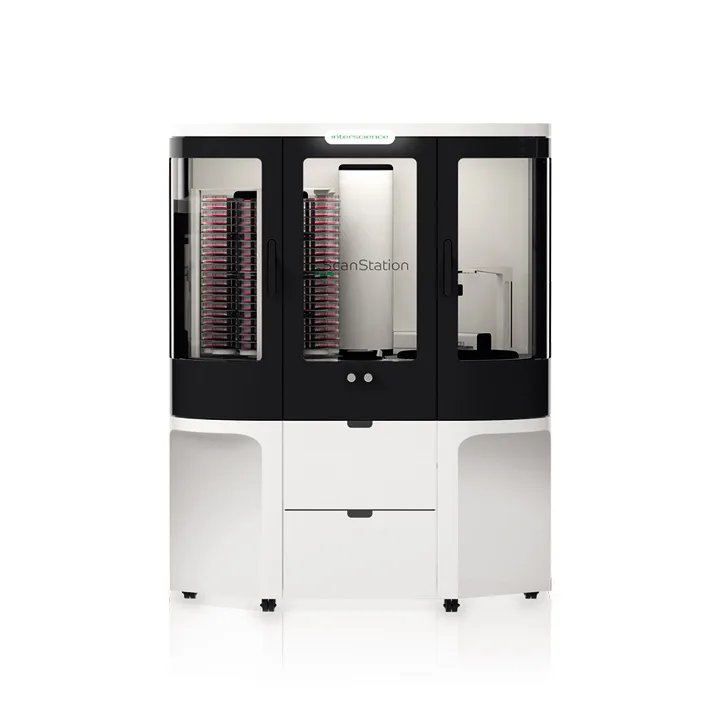

ScanStation 200 performs incubation, detection and counting on Petri dishes. Colonies are detected & counted as soon as they appear. Their growth is monitored in real time. ScanStation 200 can accomodate up to 200 Petri dishes.
E.g.: Coliforms on VRBL agar incubated at 37°C
From the beginning of the incubation, the 200 Petri dishes are photographed every 30 min / 1 hour. Colonies are detected and counted as soon as they appear. Discover their bacterial growth hour by hour and get anticipated results.
Colony counting is done automatically during incubation.
You get a video of the bacterial growth in real time.
ScanStation 200 is composed of a rotating storage carousel with a 200 Petri dishes capacity.
The 200 Petri dishes are processed simultaneously in this thermoregulated incubator with Peltier module ± 1°C.
The robotic arm transfers the Petri dishes from the carousel to the camera to perform a time-lapse photography.
ScanStation is equipped with a pressure-sensitive gripper which adapts itself to all Petri dishes.
The 5 megapixel ultra-HD camera detects colonies as soon as they appear before clustering or covering can occur, while dissociating the artefacts.
So that you get more accurate and faster results. You can see the video of bacterial growth during and after incubation.
Results in 8 h instead of 24 h
Up to 200 Petri
dishes counted together
Elimination of artefacts
Keep your agar & method
mp4
PDF
JPG, PNG,
BMP
CSV
ExcelTM
The data are archived and accessible throughout incubation till the final validation of the results.
ScanStation saves images and videos of bacterial growth from the start till the end of the incubation. You can recover the data beyond the incubation date.
The bacterial growth video helps validate the results by showing the distinction between a particle and a bacterium, avoiding false positives. Images taken at regular intervals enable to visualize the beginning of the growth of micro-organisms such as molds in order to facilitate counting.
ScanStation software complies with FDA 21 CFR Part 11 guidelines. It allows electronic signatures, audit trails and encrypted data for security reasons. You can assign different users rights depending on the access levels.
The loading of Petri dishes can be done at the beginning or during the incubation. ScanStation simultaneously processes batches with different light settings or different incubation time.
The integrated barcode reader can read most 1D/2D barcodes on the market, including QR codes and datamatrix.
ScanStation is compatible with Spiral platers and the dataLink system. This will avoid double data entry, a source of error, and save time.
The central screen reduces the ScanStation’s side space requirement. The linear space required is reduced from 245 cm to 175 cm compared to a ScanStation with a side screen and keyboard support. This is an attractive option for our customers looking to couple multiple ScanStations in their lab. This accessory is available on all ScanStation range: ScanStation 100 , ScanStation 200 and ScanStation 300.
To facilitate access to the bottom of the carousel, the 5-petal blocks removable can be removed by pulling on it, using a magnetic connection, so that the surface below the carousel can be cleaned easily. This makes 100% of the ScanStation floor area easily accessible and cleanable. This new feature is standard on the entire ScanStation range: ScanStation 100 , ScanStation 200 and ScanStation 300.
The ScanStation, incubator and automatic colony counter, integrated itself into different fields of application. Its flexibility allows it to adapt to any protocol such as bioburden, challenge tests, counting and quality control. Real-time monitoring offers anticipated results for validation.
ScanStation 200 | |
Reference | 439 200 |
OVERVIEW | |
Bacterial growth monitoring | N |
Molds detection with AI | N |
Remote access (included in Connect Module) |
N |
Automatic Petri dish identification | N |
LIMS connection (included in Connect Module) |
N |
Compatible with dataLink pro traceability system | N |
ANALYTICAL PROTOCOL | |
Capacity | 200 Petri dishes |
Reading time in between Petri dishes | 30 minutes or 1 hour |
Loading strategy for Petri dishes | Mono or multi batch |
Max. incubation time | 10 days |
Camera resolution | 5 megapixels |
Type of plating accepted | Pour plate, surface, Spiral, filtration membrane, air sampling, contact plate, Petrifilm™ |
Petri dish size | Ø 85-96 mm and Ø 54-67 mm with adapter (right-side up or upside down) |
INCUBATION | |
Incubation temperature | 20 °C to 45 °C (68 °F to 113 °F) |
Temperature resolution | ± 0.1 °C |
Incubation temperature accuracy | ± 1 °C (according to FX15-140 standard) |
Recording temperature | Every minute |
Heating and cooling technology | Peltier modules, compressor free |
SOFTWARE | |
ScanStation Software | Application web, application mobile |
Languages | English, French, Japanese, Chinese, Spanish, German |
Video player | Play, zoom, pause, replay, during and after incubation |
Included computer system | Windows 11 LTSC tower PC with Intel i7 processor |
Screen | 23 inches touch screen |
Automatic export of Petri dishes | mp4, jpg, CSV Excel™ compatible |
Image storage capacity | 5 months on 5 To (reading interval: 30 min) 5 years on 5 To (read interval: 1 h) |
In compliance with | 21 CFR Part 11 |
ENVIRONMENT | |
Storage conditions | 5-40°C with max. 80% relative humidity up to 31°C and linear decrease to 50% at 40°C |
Terms and conditions of use | In a ventilated room, between 18 °C and 25 °C (64.4 °F and 77 °F), max. altitude 2000 m |
Max. external humidity temperature | 70% |
Warranty | 1 year |
Spare parts availability | 10 years |
ELECTRICAL SPECIFICATIONS | |
Power supply without UPS | 100-240V~50/60Hz / Input1(Machine): 11.5A / Computer + Screen: 4.5A |
Power supply with UPS | 100-125V~50/60Hz (with 110V UPS) / Input1: 11.5A / Input2: 4.5A 200-240V~50/60Hz (with 220V UPS) / 13 A |
Number of phases | 1: Single-phase |
Distribution type | TT |
Max. power | 2000 W |
International protection marking | IP20 (Whole device), IP40 (electronical enclosure) |
WEIGHT AND DIMENSIONS | |
Dimensions (w x d x h): ScanStation (without option) |
135.3 x 82.3 x 174.5 cm |
Dimensions (w x d x h): ScanStation (without option) with handles unmounted | 135.3 x 78.6 x 174.5 cm |
Dimensions (w x d x h): ScanStation + Lateral stands for screen and keyboard (Ref. 439 110) | 219 x 82.3 x 174.5 cm |
Dimensions (w x d x h): ScanStation + Central stands for screen and keyboard (Ref. 439 111) | 135.3 x 103 x 174.5 cm |
Net weight: ScanStation (without option) | 408 kg |
Net weight: ScanStation + Lateral stands for screen and keyboard (Ref. 439 110) |
416 kg |
Net weight: ScanStation + Central stands for screen and keyboard (Ref. 439 111) |
414 kg |
Box (w x d x h) | 168.6 x 96 x 226 cm |
Gross weight: ScanStation (without option) | 587 kg |
Gross weight: ScanStation + Lateral stands for screen and keyboard (Ref. 439 110) |
595 kg |
Gross weight: ScanStation + Central stands for screen and keyboard (Ref. 439 111) |
593 kg |
DELIVERED WITH | |
1 computer with power cable, 1 Wi-Fi antenna connected to the computer, 1 monitor with power cable, 1 Display Port cable, 1 USB 3 cable, 1 wireless keyboard, 1 wireless mouse, 1 dongle for keyboard and wireless mouse, 1 mains power cable, 1 temperature map,1 user manual, 1 maintenance kit including 1 optical cleaner bottle and 1 grease pump, 1 test pattern, 1 conformity certificate / warranty card |
GLP-Compliant use (Good Laboratory Practice)
Products made for Interscience by Interlab, an ISO 9001 certified company.
Optical cleaner and 50 wipes
Box dimensions: 25x19x5 cm
Gross weight: 0.32 kg
Quantity: 1

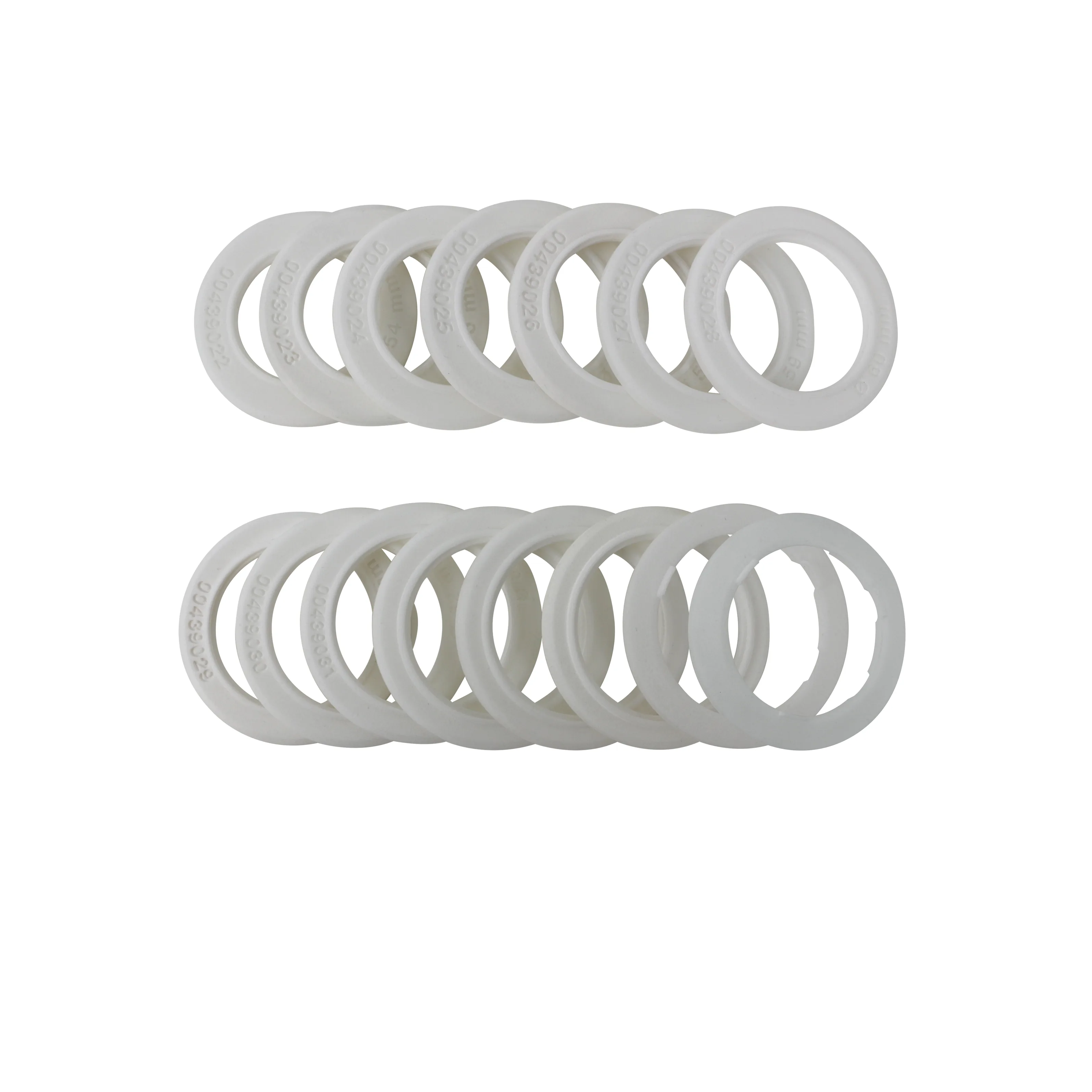

Set of 15 adaptors for ScanStation: for Petri dishes Ø 54mm, Ø 55mm, Ø 56mm, Ø 57mm, Ø 58 mm, Ø 59 mm, Ø 60 mm, Ø 61 mm, Ø 62 mm, Ø 63 mm, Ø 64 mm, Ø 65 mm, Ø 66 mm, for contact plate: Ø 65 mm, Ø 67 mm
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 7
Set of 10 adaptors for Ø 54 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Set of 10 adaptators Ø 55 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Set of 10 adaptatorsfor Ø 56 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Set of 10 adaptators for Ø 57 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Set of 10 adaptators for Ø 58 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Set of 10 adaptors for Ø 59 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0,15 kg
Quantity: 10
Set of 10 adaptors for ScanStation for Ø 60 mm Petri dishes
Box: 12x10x8 cm
Gross weight: 0,15 kg
Quantity: 10
Set of 10 adaptors for Ø 61 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10
Set of 10 adaptors for Ø 62 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10
Set of 10 adaptors for Ø 63 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10
Set of 10 adaptors for Ø 64 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10
Set of 10 adaptors for Ø 65 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10
Set of 10 adaptors for Ø 66 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Set of 10 adaptors for Ø 65 mm contact plates for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Set of 10 adaptors for Ø 67 mm contact plates for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Disinfection unit for ScanStation (Phileas GeniusTM)
Box: 41x36x32 cm
Gross weight: 8.40 kg
Quantity: 1
Support for Phileas GeniusTM disinfection unit
Box: 31x25.1x10 cm
Gross weight: 0.70 kg
Quantity: 1
O2SAFE 7.4 disinfectant for Phileas GeniusTM disinfection unit. 10L
Box: 30x20x20 cm
Gross weight: 10.0 kg
Quantity: 1
1 keyboard shelf support + 1 screen support on articulated arms for ScanStation. They allow the height and orientation of the keyboard and screen to be adjusted. Position: right or left side of the ScanStation
Box: 52x29x38 cm
Gross weight: 8.00 kg
Quantity: 1
1 keyboard shelf support + 1 screen support for ScanStation. They allow the height of the keyboard and screen to be adjusted. Position: front side of the ScanStation
Box: 55x35x20 cm
Gross weight: 5.80 kg
Quantity: 1
ScanStation furniture for PC and accessories storage
Box: 135x80x62 cm
Gross weight: 70.0 kg
Quantity: 1
Protection in case of power failure (220V) for ScanStation
Box: 75x59x19 cm
Gross weight: 35.0 kg
Quantity: 1
Protection in case of power failure (110V) for ScanStation
Box: 75x59x34 cm
Gross weight: 50.0 kg
Quantity: 1
Bar-code (1D) and datamatrix (2D) reader with a turntable for automatic identification of Petri dishes with ScanStation
Box: 25x15x10 cm
Gross weight: 0.75 kg
Quantity: 1
Test pattern to check camera sharpness and centering
Module Data Integrity for accounts management, electronic signatures, audit trail and results validation functions on ScanStation.
Quantity: 1
