ScanStation 300

Real-time incubator and colony counter

300 Petri dishes

Ref. 439 300

ScanStation 300

Real-time incubator and colony counter

300 Petri dishes

Ref. 439 300

ScanStation 300 is a device centralizing incubation, detection and counting of Petri dishes. Colonies are detected & counted as soon as they appear. Follow the growth curve of the colonies. ScanStation 300 can accommodate up to 300 Petri dishes.

  • Capacity: up to 300 Petri dishes
  • Counting on pour plate, surface, Spiral, filtration membranes
  • Petri dish sizes: Ø 55 to 65 mm, Ø 90 mm
  • Telecentric lens
  • Reading time in between each dish: 1 hour

Presentation


Coliforms

E.g.: Coliforms on VRBL agar incubated at 37°C

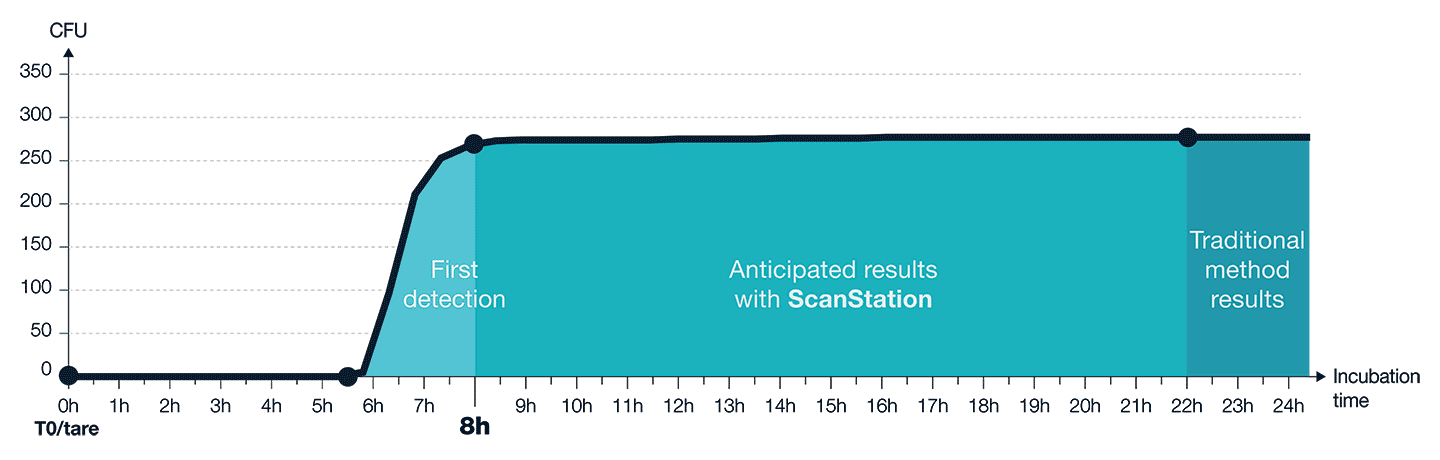

Real-time bacterial growth

From the beginning of the incubation, the 300 Petri dishes are photographed every hour. Colonies are detected and counted as soon as they appear. Discover their bacterial growth hour by hour and get anticipated results.


ScanStation - Bacterial growth in real-time

A revolutionary concept

Colony counting is done automatically during incubation.
You get a video of the bacterial growth in real time.


ScanStation - Inside - Incubateur

An incubator of 300 Petri dishes

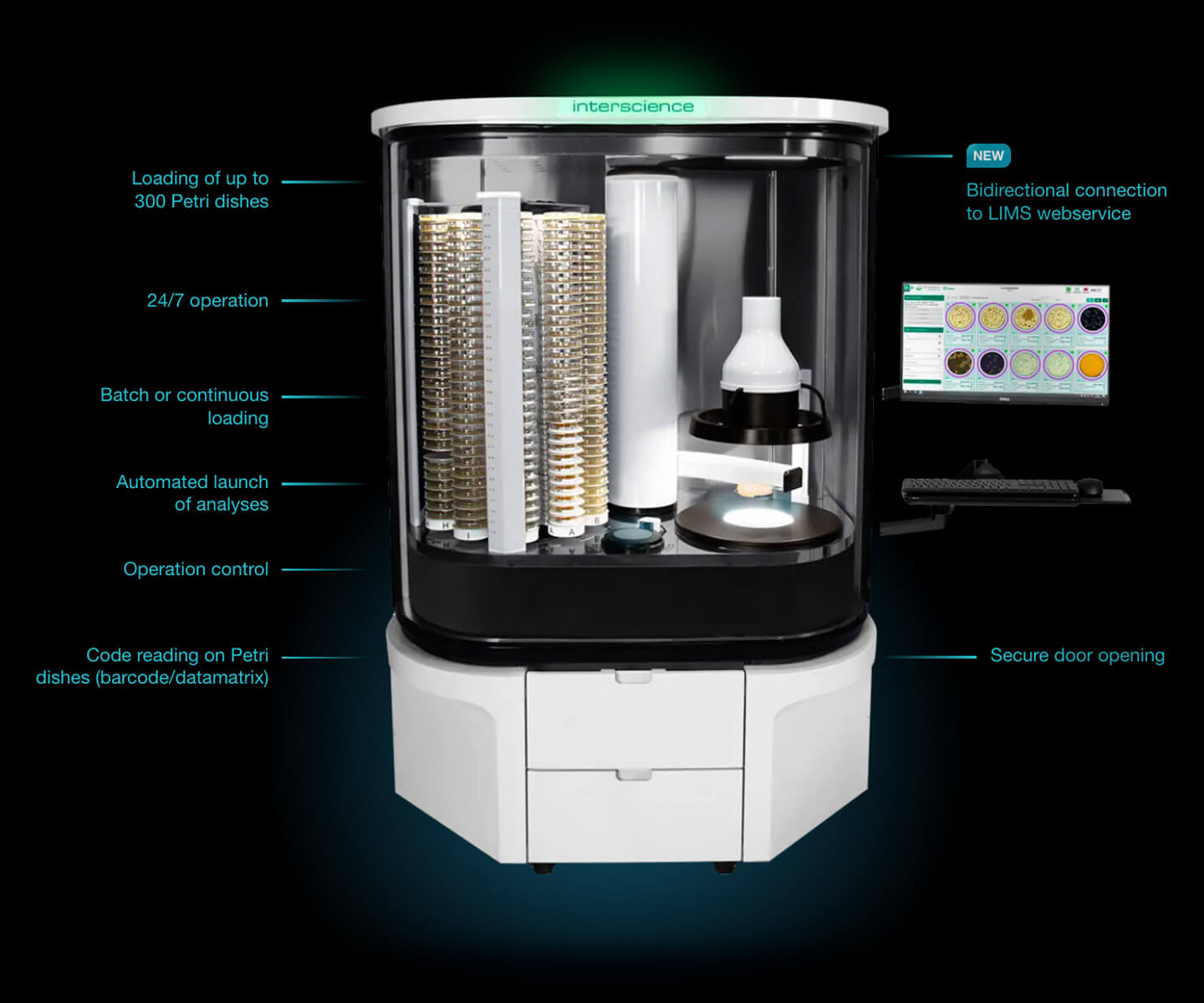

ScanStation 300 is composed of a rotating storage carousel with a 300 Petri dishes capacity.

The 300 Petri dishes are processed simultaneously in this thermoregulated incubator with Peltier module ± 1°C.


ScanStation - Inside - Bras robotisé

A robotic arm transfers the Petri dishes for a time-lapse photography

The robotic arm transfers the Petri dishes from the carousel to the camera to perform a time-lapse photography.

ScanStation is equipped with a pressure-sensitive gripper which adapts itself to all Petri dishes.


ScanStation - Inside - Compteur

The automatic colony counter detects and counts colonies as soon as they appear

The 5 megapixel ultra-HD camera detects colonies as soon as they appear before clustering or covering can occur, while dissociating the artefacts.
So that you get more accurate and faster results. You can see the video of bacterial growth during and after incubation.

High performance results


ScanStation - 3x sooner

sooner

Results in 8 h instead of 24 h



ScanStation - faster

faster

Up to 300 Petri
 dishes counted together


<multi>[fr]ScanStation - + précis[en]ScanStation - +precise<multi>

accurate

 Elimination of artefacts



ScanStation - Identical

equal

Keep your agar & method



Picto MP4

mp4


Traceability export data - PDF

PDF


Traceability export data - JPG

JPG, PNG,
BMP


 Traceability export data - CSV

CSV


 Traceability export data

ExcelTM

Traceability

The data are archived and accessible throughout incubation till the final validation of the results.

Data integrity

ScanStation saves images and videos of bacterial growth from the start till the end of the incubation. You can recover the data beyond the incubation date.

The bacterial growth video helps validate the results by showing the distinction between a particle and a bacterium, avoiding false positives. Images taken at regular intervals enable to visualize the beginning of the growth of micro-organisms such as molds in order to facilitate counting.

ScanStation software complies with FDA 21 CFR Part 11 guidelines. It allows electronic signatures, audit trails and encrypted data for security reasons. You can assign different users rights depending on the access levels.


Data integrity

Mono or multi-batch

The loading of Petri dishes can be done at the beginning or during the incubation. ScanStation simultaneously processes batches with different light settings or different incubation time.


Multi-batch

dataLink

The integrated barcode reader can read most 1D/2D barcodes on the market, including QR codes and datamatrix.

ScanStation is compatible with Spiral platers and the dataLink system. This will avoid double data entry, a source of error, and save time.


Traceability system with DataLink

New Feature

Telecentric lens

Upgraded counting accuracy

The high performance telecentric lens allows the Petri dish to be viewed in an absolute vertical position, without perspective distortion. The surface area around the edge of the dish, where the agar meniscus makes counting more difficult, is reduced. By reducing this area from 9% to 5% of the total surface of the Petri dish, counting performance increases. Typical counting accuracy increases from 95% to 97.5%. This is crucial for the pharmaceutical industry, where a colony on the edge of the dish can make the difference between a positive or negative result, especially in the monitoring of air quality in clean rooms. This new feature is standard on the ScanStation 300 model.


ScanStation 300 telecentric lens

 }
Standard camera


ScanStation 100 standard camera

New Feature
Telecentric lens


ScanStation 300 telecentric lens





New Feature

Central screen

Ergonomics optimized for your laboratory

The central screen reduces the ScanStation’s side space requirement. The linear space required is reduced from 245 cm to 175 cm compared to a ScanStation with a side screen and keyboard support. This is an attractive option for our customers looking to couple multiple ScanStations in their lab. This accessory is available on all ScanStation range: ScanStation 100 , ScanStation 200 and ScanStation 300.


ScanStation 200 with central screen

 }
Footprint with lateral screen


Footprint ScanStation with lateral screen

New Feature
Footprint with central screen


Footprint ScanStation with central screen

New Feature

Removable petals

Easy to clean and disinfect

To facilitate access to the bottom of the carousel, the 5-petal blocks removable can be removed by pulling on it, using a magnetic connection, so that the surface below the carousel can be cleaned easily. This makes 100% of the ScanStation floor area easily accessible and cleanable. This new feature is standard on the entire ScanStation range: ScanStation 100 , ScanStation 200 and ScanStation 300.


ScanStation: Easy disinfection with the removable petals

Applications

The ScanStation, incubator and automatic colony counter, integrated itself into different fields of application. Its flexibility allows it to adapt to any protocol such as bioburden, challenge tests, counting and quality control. Real-time monitoring offers anticipated results for validation.


Application - Food


Application - Environmental


Application - Pharmaceutical


Application - Cosmetics


Applications - Veterinary


Application - Public research

Videos

Videos

From sample preparation to bacterial analyses - Overview

Download the video

ScanStation - Real-time incubator and colony counter: Overview of the range

Download the video

ScanStation - Real-time incubator and colony counter: Real-time bacterial growth

Download the video

Unboxing - Real-time incubator and colony counter: ScanStation 100 model

Download the video

ScanStation - What is ScanStation? - Interview

Download the video

ScanStation - For the Food Industry - How does it work?

Download the video

ScanStation - For the Pharmaceutical Industry - How does it work?

Download the video

ScanStation - For the Cosmetic Industry - How does it work?

Download the video

dataLink pro - Labelling on the edge of the Petri dish

Download the video

Documents

Documents

Title
Language
Type
Size
Download
ScanStation brochure
English
PDF
4.6 Mb
ScanStation 300 technical file
English
PDF
200.9 kb
CBVus certificate
English
PDF
4.4 Mb
CEM Security certificate
ScanStation 100 200 300
English
PDF
411.9 kb
IEC Security certificate
ScanStation 100 200 300
English
PDF
413.2 kb
EC Certificate
English
PDF
141.5 kb
UKCA Certificate
English
PDF
150.8 kb
ISO 9001-2015 Certificate
English
PDF
789.1 kb
Purosol Safety Data Sheet
English
PDF
113.9 kb
ScanStation - Environment - Application note
English
PDF
2.6 Mb
English catalog
English
PDF
5.9 Mb
Z
ScanStation range photo
Zip
1.1 Mb
Z
ScanStation range - Lab assistant photo
Zip
1.1 Mb
Z
ScanStation 300 photo
Zip
860.3 kb
Z
ScanStation 300 Lab assistant photo
Zip
244.4 kb
Z
ScanStation - Inside photo
Zip
1.2 Mb
Title
Language
Type
Size
Download
ScanStation in food testing
English
PDF
241.3 kb
Using the ScanStation in Food industry
(Study performed on Symphony and TBX media)
English
PDF
882.1 kb
Performance of the ScanStation (study carried out with Salmonella typhimurium and Listeria monocytogenes)
English
PDF
1.1 Mb
Title
Language
Type
Size
Download
Z
439 022 - Adaptator for Petri dishes 54 mm photo
Zip
162.4 kb
Z
439 023 - Adaptator for Petri dishes 55 mm photo
Zip
730.6 kb
Z
439 024 - Adaptator for Petri dishes 56 mm photo
Zip
730.3 kb
Z
439 025 - Adaptator for Petri dishes 57 mm photo
Zip
729.8 kb
Z
439 026 - Adaptator for Petri dishes 58 mm photo
Zip
730.6 kb
Z
439 027 - Adaptator for Petri dishes 59 mm photo
Zip
243.2 kb
Z
439 028 - Adaptator for Petri dishes 60 mm photo
Zip
243.5 kb
Z
439 029 - Adaptator for Petri dishes 61 mm photo
Zip
242.9 kb
Z
439 030 - Adaptator for Petri dishes 62 mm photo
Zip
243.7 kb
Z
439 031 - Adaptator for Petri dishes 63 mm photo
Zip
243.4 kb
Z
439 032 - Adaptator for Petri dishes 64 mm photo
Zip
243.5 kb
Z
439 033 - Adaptator for Petri dishes 65 mm photo
Zip
244 kb
Z
439 034 - Adaptator for Petri dishes 66 mm photo
Zip
729.8 kb
Z
439 040 - Adaptor for contact plate (Ø 65 mm) photo
Zip
266 kb
Z
439 060 - Nebulizer for real-time incubator and colony counter photo
Zip
11.2 Mb
Z
439 061 - Stand for nebulizer photo
Zip
343.9 kb
Z
439 062 - Disinfectant for nebulizer photo
Zip
598.9 kb
Z
439 110 - Lateral stands for screen and keyboard photo
Zip
1.2 Mb
Z
439 170 - Module for Petri dish automatic identification photo
Zip
726 kb
Z
439 111 - Central stands for screen and keyboard photo
Zip
1 Mb
Z
439 120 - Storage furniture photo
Zip
695.9 kb
Z
439 190 - Maintenance kit for real-time incubator and colony counter photo
Zip
75.2 kb
Z
439 140 - Uninterrupted power supply (220 V) photo
Zip
924.9 kb
Z
Test pattern for real-time incubator and colony counter photo - 439 192
Zip
1.1 Mb
Z
439 145 - Uninterrupted power supply (110 V) photo
Zip
1.3 Mb
Title
Language
Type
Size
Download

Specifications

Specifications

ScanStation 300
Reference 439 300
Capacity 300 Petri dishes
Reading time in between each dish 1 hour
Petri dish size Ø 90 mm right-side or upside down and Ø 55-65 mm (with adaptor)
Type of plating accepted Pour plate, surface, Spiral, filtration membrane
Loading Single or multi-batch
Camera resolution 5 megapixels
Telecentric lens N
Interface 23 inches touch screen
Data export Excel™
Video player Play, zoom, pause, replay, during and after incubation
Included computer system PC Windows 10 LTSC desktop with Intel i7 processor
Software ScanStation software
Incubation temperature From 20°C to 45°C
Accuracy of incubation temperature ± 1°C (checked by a 9-point mapping system)
Recording of the temperature Every minute
Heating and cooling technology Peltier modules, compressor free
External temperature From 18°C to 25°C
Max external humidity temperature 70%
Max incubation time 10 days
LED internal light N
Electronic locking door N
Pressure sensitive gripper to adapt itself to any kind of dish N
Robotic architecture with incubator, gripper and colony counter N
Extra rigid mass aluminum platform N
Dimensions (w x d x h) 135.3 x 82.3 x 149.4 cm
Net weight of the ScanStation (without option) 350 kg
Dimensions with handles dismantled (w x d x h) 135.3 x 78.6 x 149.4 cm
Furniture dimensions (height) 59.6 cm
Net weight of the storage furniture 70 kg
Total height with storage furniture 201 cm
Box (w x d x h) 168.6 x 96 x 226 cm
Gross weight (without option) 520 kg
In compliance with 21 CFR Part 11
Voltage and frequency 100-240V~ 50-60 Hz
International protection marking 20
Max power 2000 W
Warranty 1 year
Delivered with: 1 computer and its power cable OR 1 server with its power cable, 1 Wifi antenna connected to the computer or server, 1 monitor with its power cable, 1 Display Port cable, 1 USB 3 cable, 1 wireless keyboard, 1 wireless mouse, 1 dongle for keyboard and wireless mouse, 1 general unit power cable, 1 temperature map, 1 user’s manual, 1 maintenance kit including 1 optical cleaner bottle and 1 grease pump, 1 test pattern
ScanStation 300
Reference 439 300
Capacity 300 Petri dishes
Reading time in between each dish 1 hour
Petri dish size Ø 90 mm right-side or upside down and Ø 55-65 mm (with adaptor)
Type of plating accepted Pour plate, surface, Spiral, filtration membrane
Loading Single or multi-batch
Camera resolution 5 megapixels
Telecentric lens N
Interface 23 inches touch screen
Data export Excel™
Video player Play, zoom, pause, replay, during and after incubation
Included computer system PC Windows 10 LTSC desktop with Intel i7 processor
Software ScanStation software
Incubation temperature From 20°C to 45°C
Accuracy of incubation temperature ± 1°C (checked by a 9-point mapping system)
Recording of the temperature Every minute
Heating and cooling technology Peltier modules, compressor free
External temperature From 18°C to 25°C
Max external humidity temperature 70%
Max incubation time 10 days
LED internal light N
Electronic locking door N
Pressure sensitive gripper to adapt itself to any kind of dish N
Robotic architecture with incubator, gripper and colony counter N
Extra rigid mass aluminum platform N
Dimensions (w x d x h) 135.3 x 82.3 x 149.4 cm
Net weight of the ScanStation (without option) 350 kg
Dimensions with handles dismantled (w x d x h) 135.3 x 78.6 x 149.4 cm
Furniture dimensions (height) 59.6 cm
Net weight of the storage furniture 70 kg
Total height with storage furniture 201 cm
Box (w x d x h) 168.6 x 96 x 226 cm
Gross weight (without option) 520 kg
In compliance with 21 CFR Part 11
Voltage and frequency 100-240V~ 50-60 Hz
International protection marking 20
Max power 2000 W
Warranty 1 year
Delivered with: 1 computer and its power cable OR 1 server with its power cable, 1 Wifi antenna connected to the computer or server, 1 monitor with its power cable, 1 Display Port cable, 1 USB 3 cable, 1 wireless keyboard, 1 wireless mouse, 1 dongle for keyboard and wireless mouse, 1 general unit power cable, 1 temperature map, 1 user’s manual, 1 maintenance kit including 1 optical cleaner bottle and 1 grease pump, 1 test pattern

Calibrated according to the G.L.P (Good Laboratory Practice)

Products made for INTERSCIENCE by Interlab, an ISO 9001 certified company.

Accessories

Accessories

Optical cleaner + wipes

Ref. 435 702

Optical cleaner and wipes

Box dimensions: 25x19x5 cm
Gross weight: 0.32 kg
Quantity: 1

Set of adaptors

Ref. 439 021

Set of 14 adaptators for ScanStation: for Petri dishes Ø 54mm, Ø 55mm, Ø 56mm, Ø 57mm, Ø 58 mm, Ø 59 mm, Ø 60 mm, Ø 61 mm, Ø 62 mm, Ø 63 mm, Ø 64 mm, Ø 65 mm, Ø 66 mm, for contact plate

Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 7

Adaptor for Petri dishes (Ø 54 mm)

Ref. 439 022

Set of 10 adaptators for Ø 54 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10

Adaptor for Petri dishes (Ø 55 mm)

Ref. 439 023

Set of 10 adaptators Ø 55 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10

Adaptor for Petri dishes (Ø 56 mm)

Ref. 439 024

Set of 10 adaptatorsfor Ø 56 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10

Adaptor for Petri dishes (Ø 57 mm)

Ref. 439 025

Set of 10 adaptators for Ø 57 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10

Adaptor for Petri dishes (Ø 58 mm)

Ref. 439 026

Set of 10 adaptators for Ø 58 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10

Adaptor for Petri dishes (Ø 59 mm)

Ref. 439 027

Set of 10 adaptors for Ø 59 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0,15 kg
Quantity: 10

Adaptor for Petri dishes (Ø 60 mm)

Ref. 439 028

Set of 10 adaptors for ScanStation for Ø 60 mm Petri dishes

Box: 12x10x8 cm
Gross weight: 0,15 kg
Quantity: 10

Adaptor for Petri dishes (Ø 61 mm)

Ref. 439 029

Set of 10 adaptors for Ø 61 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10

Adaptor for Petri dishes (Ø 62 mm)

Ref. 439 030

Set of 10 adaptors for Ø 62 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10

Adaptor for Petri dishes (Ø 63 mm)

Ref. 439 031

Set of 10 adaptors for Ø 63 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10

Adaptor for Petri dishes (Ø 64 mm)

Ref. 439 032

Set of 10 adaptors for Ø 64 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10

Adaptor for Petri dishes (Ø 65 mm)

Ref. 439 033

Set of 10 adaptors for Ø 65 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10

Adaptor for Petri dishes (Ø 66 mm)

Ref. 439 034

Set of 10 adaptors for Ø 66 mm Petri dishes for ScanStation

Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10

Adaptor for contact plate (Ø 65 mm)

Ref. 439 040

Set of 10 adaptors for Ø 65 mm contact plates for ScanStation

Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10

Nebulizer for real-time incubator and colony counter

Ref. 439 060

Disinfection unit for ScanStation (Phileas GeniusTM)

Box: 41x36x32 cm
Gross weight: 8.40 kg
Quantity: 1

Stand for nebulizer

Ref. 439 061

Support for Phileas GeniusTM disinfection unit

Box: 31x25.1x10 cm
Gross weight: 0.70 kg
Quantity: 1

Disinfectant for nebulizer

Ref. 439 062

O2SAFE 7.4 disinfectant for Phileas GeniusTM disinfection unit. 10L

Box: 30x20x20 cm
Gross weight: 10.0 kg
Quantity: 1

Lateral stands for screen and keyboard

Ref. 439 110

1 keyboard shelf support + 1 screen support on articulated arms for ScanStation. They allow the height and orientation of the keyboard and screen to be adjusted. Position: right or left side of the ScanStation

Box: 52x29x38 cm
Gross weight: 8.00 kg
Quantity: 1

Central stands for screen and keyboard

Ref. 439 111

1 keyboard shelf support + 1 screen support for ScanStation. They allow the height of the keyboard and screen to be adjusted. Position: front side of the ScanStation

Box: 55x35x20 cm
Gross weight: 5.80 kg
Quantity: 1

Storage furniture for real-time incubator and colony counter

Ref. 439 120

ScanStation furniture for PC and accessories storage

Box: 135x80x62 cm
Gross weight: 70.0 kg
Quantity: 1

Uninterrupted power supply (220 V)

Ref. 439 140

Protection in case of power failure (220V) for ScanStation

Box: 75x59x19 cm
Gross weight: 35.0 kg
Quantity: 1

Uninterrupted power supply (110 V)

Ref. 439 145

Protection in case of power failure (110V) for ScanStation

Box: 75x59x34 cm
Gross weight: 50.0 kg
Quantity: 1

Module for Petri dish automatic identification

Ref. 439 170

Bar-code reader (1D) and datamatrix (2D) for automatic identification of thePetri dishes for ScanStation

Box: 25x15x10 cm
Gross weight: 0.75 kg
Quantity: 1

Maintenance kit for real-time incubator and colony counter

Ref. 439 190

Maintenance kit for ScanStation with : 1 grease pump, 1 grease, 1 brush, 1 Torx T10 wrench, 1 Torx T20 Torx Wrench, 1 hexagon key hexagonal 2.5mm, 4 Fan Filters, 1 Optical Cleaner, 50 Cleaning Wipes, 4 "Biohazards" labels

Box: 25x20x10 cm
Gross weight: 0.76 kg
Quantity: 1

Test pattern for real-time incubator and colony counter

Ref. 439 192

Test pattern for ScanStation 100/200/300

IQOQPQ

Ref. 800 253

IQOQPQ document for ScanStation 300. For IQOQ service, please contact us.

Quantity: 1

21 CFR Part 11 module

Ref. 800 700

21CFR part 11 module for audit trail, validation of results and management of the software for ScanStation.

Quantity: 1
