easySpiral Dilute is an automatic diluter and plater of Petri dishes. It allows 1/10th serial dilutions and plating up to 6 log. dilution on 1 single Petri dish. For a sample of 30 to 1 x 1012 bacteria, no more manual dilutions and plating is automatic.

  • Automatic cycle of 5 successive dilutions at 1/10th
  • Plating modes: exponential, constant, circle, pour plate
  • Counting range: from 30 to 1x1012 CFU/mL
  • Plating cycle time: 134 seconds

Presentation

A revolution for your serial dilutions!

You no longer need to prepare 9 mL tubes, easySpiral Dilute automatizes serial dilutions to 10-5 or more. PATENTED


easySpiral Dilute - Placer l'échantillon EN

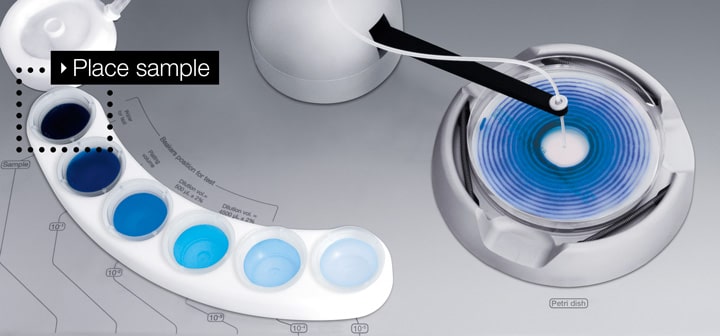

Place the sample

Place your sample in a beaker and choose your dilution factor: from 10-1 to 10-5


easySpiral Dilute - Diluer EN

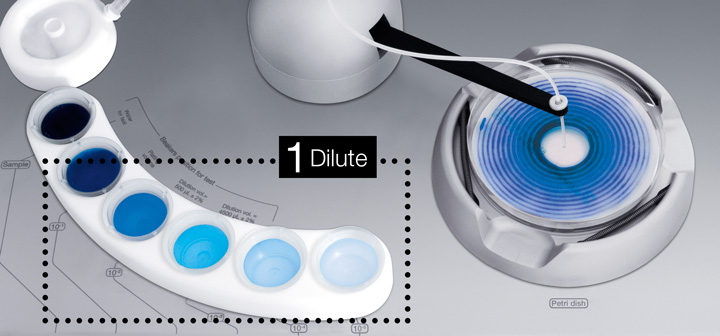

Dilute automatically

easySpiral Dilute automatically dilutes the sample up to 5 times.


easySpiral Dilute - Plate and dilute

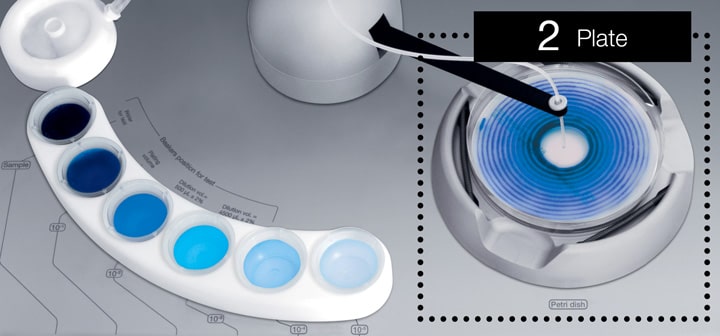

Plate automatically

easySpiral Dilute plates a sample on 1 Petri dish from 30 to 1x1012 CFU/mL

The Spiral method

With the Spiral method, increase your analysis capabilities: without intermediate dilutions, perform standardized automatic plating with a counting range from 100 to 1 x 107 CFU/mL on 1 single Petri dish !


easySpiral Dilute - Ensemencement manuel EN

Manual plating method requires repetitive actions: at least 4 dilutions and 4 successive platings are necessary to obtain one good and readable Petri dish.


easySpiral Dilute - Methode automatique EN

With Automatic Spiral method, make your analyses on 1 single Petri dish!

50% time-saving
and consumables savings

easySpiral Dilute saves you 50% in consumables and 50% in time. 134 seconds for plating (1 disinfection + 5 dilutions + 1 plating of a dilution).

Example on 50 samples with a 10-7 dilution and a 10-5, 10-6 and 10-7 plating

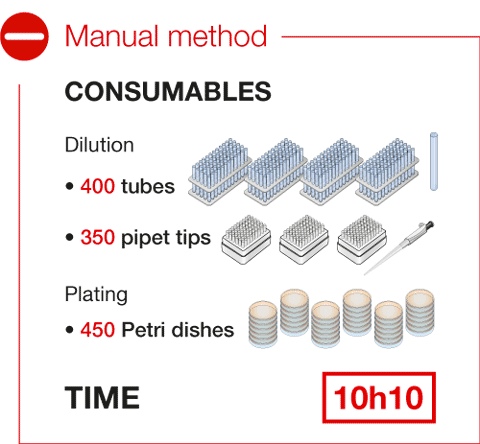

easySpiral Dilute - Ensemencement manuel consommables EN

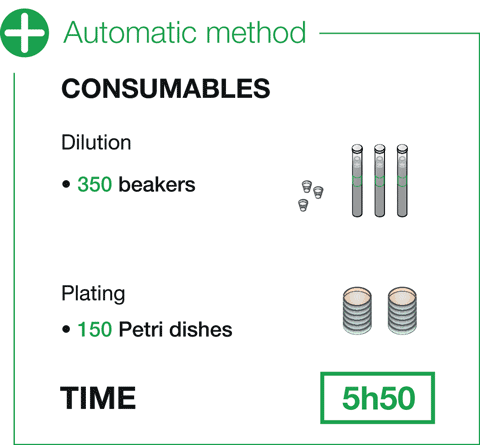

easySpiral Dilute - Consumables Automatic method

One touch plating

Plate easily and quickly your 55, 90 and 150 mm Petri dishes.
Choose from 4 plating modes: exponential, constant, circle and pour.

Exponential mode

The exponential mode is a plating in surface with a decreasing surface concentration. Plate 50 µL, 100 µL, 200 µL or program a customizable volume.

Obtain a countable Petri dish from 100 to 1 x 1012 CFU/mL


Exponential plater mode part 1


Exponential plater mode part 2

Constant mode

The constant mode is a homogenous surface deposition plating. Plate 50 µL, 100 µL, 200 µL or program a customizable volume.

Colony counting is then easy because there are no colonies on the edges of the Petri dish.


Constant plater mode part 1


Constant plater mode part 2

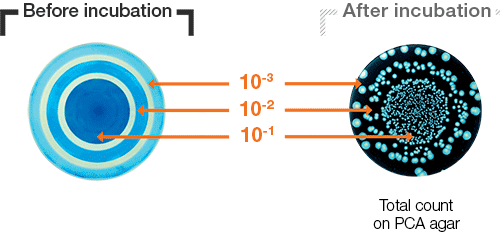

Circle mode

The circle mode is plating 3 or 6 dilutions in surface on 1 Petri dish. The volumes are 10 µL for the inner circle, 16 µL for the middle circle and 25 µL for the outer circle.

Great savings on Petri dishes!


Circle plater mode part 1

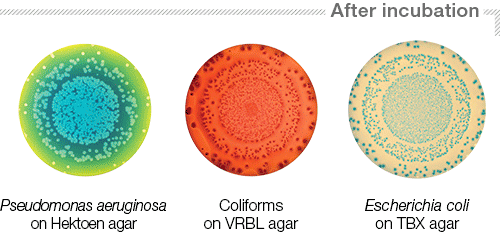

Circle plater mode part 2

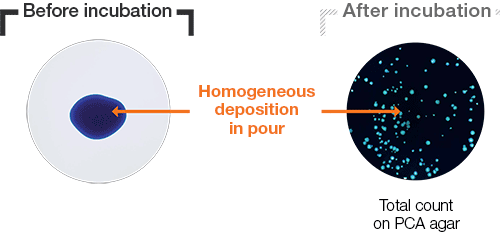

Pour mode

The pour mode is a homogeneous deposition in pour plate mode.
easySpiral Dilute deposits one sample drop at the bottom of an empty Petri dish. Then the user adds the molten agar on top and homogenizes it with the sample.
You can plate 50 µL, 100 µL, 200 µL or program your personalized volume.

Colony counting is easier in case of invasive colonies. Pharmacopea compliant.


 Plater mode en mass part 1


 Plater mode en mass part 2


 easySpiral Dilute - High accuracy glass syringe

High accuracy glass syringe

Typical accuracy of glass syringe is 0.5 %.
Higher accuracy than an ordinary pipette and no more pipet calibration.


 easySpiral - Automatic désinfection

Automatic disinfection

Overflow technology cleaning system and stylus disinfection. A light is activated in case of empty disinfecting liquid.
PATENTED

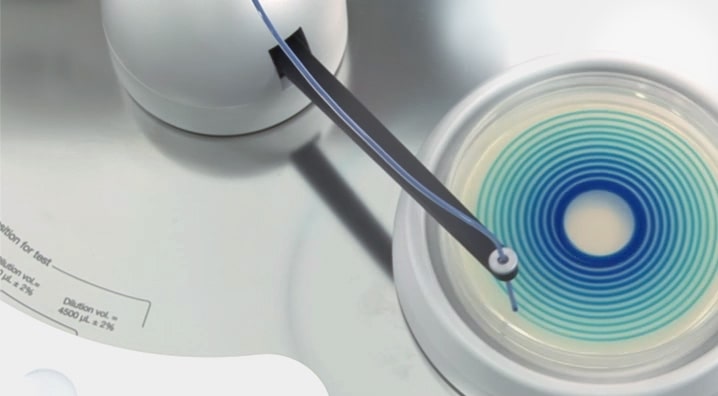

High speed automation

The fast rotating arm adapts itself to all types of agar without risks of ploughing. It makes it possible to obtain a plating in 134 seconds (disinfection + 5 dilutions + 1 plating of a dilution).
PATENTED


easySpiral Dilute - High speed automation

Traceability ensured
with dataLink

With dataLink and dataLink pro, you can track the sample from plating to automatic colony counting.

Parameter the label that will be stuck on the edge of the dish. The colony counting is then optimised.


Traceability system with DataLink


easySpiral Dilute - Compact and ergonomic

Compact
and ergonomic


easy connection

Simple and secure
connections


easySpiral Dilute - High autonomy

Long
autonomy


traceability

USB programmable
volume

Applications

easySpiral Dilute platers are used for all types of microbiological analyses in the food, pharmaceutical, cosmetic and public research institutes ...


Food


Pharmaceutical


Cosmetic


Public research

Videos

Videos

From sample preparation to bacterial analyses - Overview

Download the video

easySpiral - Automatic platers: Overview of the range

Download the video

Unboxing - Automatic platers: easySpiral Dilute model

Download the video

Spiral plating - How does it work? (french)

Download the video

dataLink pro - Labelling on the edge of the Petri dish

Download the video

Downloads

Downloads

Title
Language
Type
Size
Download
easySpiral Dilute Brochure
English
PDF
3.9 Mb
easySpiral range brochure
English
PDF
3.8 Mb
easySpiral Dilute technical file
English
PDF
161.4 kb
Bar-code reader technical file
English
PDF
235.3 kb
Beakers DB 50 technical file
English
PDF
226.8 kb
EC Certificate
English
PDF
100 kb
UKCA Certificate
English
PDF
102.7 kb
ISO 9001 Certificate
English
PDF
789.1 kb
EnzyClear Safety Data Sheet
(413 029)
English
PDF
2.9 Mb
Safety Data Sheet Blue dye (415 530)
English
PDF
2 Mb
Flyer dataLink
English
PDF
1.4 Mb
English catalog
English
PDF
46.9 Mb
Z
easySpiral Dilute - Beakers photo
Zip
1.2 Mb
Z
easySpiral Dilute - Bottle photo
Zip
1.2 Mb
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Z
410 100 - dataLink photo
Zip
817.7 kb
Z
410 100 - dataLink 2 photo
Zip
842.5 kb
Z
410 130 - Film for printer photo
Zip
322.6 kb
Z
413 001 - Housing protection for platers photo
Zip
434.5 kb
Z
413 029 - EnzyClear photo
Zip
1017.8 kb
Z
414 002 - Support for Eppendorf (1.5 mL) photo
Zip
722 kb
Z
414 003 -Maintenance kit for platers (1 mL) photo
Zip
1.1 Mb
Z
415 100 - Beakers (DB 50) photo
Zip
323.6 kb
Z
415 530 - Blue dye for platers photo
Zip
605.6 kb
Z
522 000 - Bar-code reader photo
Zip
499 kb
Title
Language
Type
Size
Download
Z
413 003 - Connection kit for GL45 bottle photo
Zip
254.2 kb
Z
413 006 - Tubings photo
Zip
597 kb
Z
413 009 - Filters for rinsing bath photo
Zip
1.6 Mb
Z
413 028 - Tube weights 3 mm photo
Zip
2.5 Mb
Z
414 004 - Double connection kit for GL45 bottle photo
Zip
491.8 kb
Z
513 023 - PTFE filters 0.2 µL Ø 25 mm photo
Zip
745.4 kb

Specifications

Specifications

easySpiral Dilute
Reference 414 000
Number of dilutions at 1/10th for 1 cycle 5
Syringe capacity 1 000 µL
Autonomy in disinfection (in normal mode) 1000 cycles (2L bottles)
Autonomy in diluents 63 cycles (2L bottles)
Approved diluents Saline water, Ringer solution
Pressure in the stylus Up to 8 bars
Traceability Excel™, LIMS, dataLink
Exponential plating mode (Spiral mode):
Petri dish diameters Ø available:
90 mm and 150 mm
Circle plating mode:
Petri dish diameters Ø available:
3 dilutions on a 90 mm and 6 dilutions on a 150 mm
Constant plating mode:
Petri dish diameters Ø available:
55 mm, 90 mm and 150 mm
Pour plating mode:
Petri dish diameters Ø available:
55 mm, 90 mm and 150 mm
Counting range from 30 to 1x1012 CFU/mL
Programmable dispensed volume (via USB) from 10 µL to 1000 µL
Preset dispensed volumes 50 µL, 100 µL and 200 µL
Successive plating capacity with the same sample up to 20 Petri dishes (50 μL)
Time for 1 sample intake + 1 disinfection + 1 plating 25 s
Time for 1 disinfection + 5 dilutions + 1 plating of 1 dilution 134 s
Time for 1 disinfection + 5 dilutions + 1 plating of each dilution 234 s
Controlled by a microprocessor N
All stainless steel N
Disinfection process N
My diluent key N
Sample mixing before dilution/plating N
Filling time and volume programmable via USB N
Sampling from beakers (DB50) N
Dimensions (w x d x h) 39.4 x 42.1 x 28.9 cm
Net weight 16.6 kg
Box (w x d x h) 60 x 50 x 55 cm
Gross weight 26.7 kg
Voltage - Frequencies 100-240 V~ 50-60 Hz
Fuses T1.6A L 250V 5x20 mm
Power 45 W
International protection marking 10
Warranty 1 year
In compliance with ISO 7218, ISO 4833-2, FDA BAM (Bacteriological Analytical Manual) and AOAC 977.27
Delivered with: 1 turntable ring for Ø 90 mm Petri dishes, 1 blue dye for testing, 1 syringe with silicone tubing, 1 plating ring for Ø 55 mm Petri dishes, 1 plating ring for Ø 150 mm Petri dishes, 1 Spiral counting grid for Ø 90 mm Petri dishes, 1 circle mode counting grid for Ø 90 mm Petri dish, 1 set of 2 filters, 1 software, 1 USB cable A/B, 1 Spiral counting grid for Ø 150 mm Petri dishes, 1 circle mode counting grid for Ø 150 mm Petri dish, 1000 DB50 beakers, 1 EnzyClear liquid detergent, 4 connection kits for GL45 bottle, 1 double kit for GL45 bottles, 1 stylus, 1 power cable, 1 user’s manual, 1 EnzyClear quick user guide.
easySpiral Dilute
Reference 414 000
Number of dilutions at 1/10th for 1 cycle 5
Syringe capacity 1 000 µL
Autonomy in disinfection (in normal mode) 1000 cycles (2L bottles)
Autonomy in diluents 63 cycles (2L bottles)
Approved diluents Saline water, Ringer solution
Pressure in the stylus Up to 8 bars
Traceability Excel™, LIMS, dataLink
Exponential plating mode (Spiral mode):
Petri dish diameters Ø available:
90 mm and 150 mm
Circle plating mode:
Petri dish diameters Ø available:
3 dilutions on a 90 mm and 6 dilutions on a 150 mm
Constant plating mode:
Petri dish diameters Ø available:
55 mm, 90 mm and 150 mm
Pour plating mode:
Petri dish diameters Ø available:
55 mm, 90 mm and 150 mm
Counting range from 30 to 1x1012 CFU/mL
Programmable dispensed volume (via USB) from 10 µL to 1000 µL
Preset dispensed volumes 50 µL, 100 µL and 200 µL
Successive plating capacity with the same sample up to 20 Petri dishes (50 μL)
Time for 1 sample intake + 1 disinfection + 1 plating 25 s
Time for 1 disinfection + 5 dilutions + 1 plating of 1 dilution 134 s
Time for 1 disinfection + 5 dilutions + 1 plating of each dilution 234 s
Controlled by a microprocessor N
All stainless steel N
Disinfection process N
My diluent key N
Sample mixing before dilution/plating N
Filling time and volume programmable via USB N
Sampling from beakers (DB50) N
Dimensions (w x d x h) 39.4 x 42.1 x 28.9 cm
Net weight 16.6 kg
Box (w x d x h) 60 x 50 x 55 cm
Gross weight 26.7 kg
Voltage - Frequencies 100-240 V~ 50-60 Hz
Fuses T1.6A L 250V 5x20 mm
Power 45 W
International protection marking 10
Warranty 1 year
In compliance with ISO 7218, ISO 4833-2, FDA BAM (Bacteriological Analytical Manual) and AOAC 977.27
Delivered with: 1 turntable ring for Ø 90 mm Petri dishes, 1 blue dye for testing, 1 syringe with silicone tubing, 1 plating ring for Ø 55 mm Petri dishes, 1 plating ring for Ø 150 mm Petri dishes, 1 Spiral counting grid for Ø 90 mm Petri dishes, 1 circle mode counting grid for Ø 90 mm Petri dish, 1 set of 2 filters, 1 software, 1 USB cable A/B, 1 Spiral counting grid for Ø 150 mm Petri dishes, 1 circle mode counting grid for Ø 150 mm Petri dish, 1000 DB50 beakers, 1 EnzyClear liquid detergent, 4 connection kits for GL45 bottle, 1 double kit for GL45 bottles, 1 stylus, 1 power cable, 1 user’s manual, 1 EnzyClear quick user guide.

G.L.P.-Compliant use (Good Laboratory Practice)

Products made for Interscience by Interlab, an ISO 9001 certified company.

Accessories

Accessories

Stickers for printer

Ref. 410 120

2 rolls of 2500 labels for thermal printer - Label size: 45 x 10 mm

Box dimensions: 18x25 cm
Gross weight: 0.47 kg
Quantity: 2x2500

Film for printer

Ref. 410 130

Thermal transfer film

Box dimensions: 12x10x8 cm
Gross weight: 0.08 kg
Quantity: 1

Plate for Petri dish (50-60 mm)

Ref. 412 010

Multiadaptable support for Petri dishes from ø 50 to 60 mm

Plate for Petri dish (60-70 mm)

Ref. 412 011

Multiadaptable support for Petri dishes from ø 60 to 70 mm

Plate for Petri dish (70-80 mm)

Ref. 412 012

Multiadaptable support for Petri dishes from ø 70 to 80 mm

Plate for Petri dish (80-90 mm)

Ref. 412 013

Multiadaptable support for Petri dishes from ø 80 to 90 mm

Housing protection for platers

Ref. 413 001

Transparent housing for working outside laminar flow

2L bottle (GL45)

Ref. 413 002

Set of 3 GL45 glass bottle (2L), autoclavable

Syringue (1mL)

Ref. 413 004

Syringe (capacity 1000 µL)

Spiral counting grid (90 mm)

Ref. 413 014

Spiral counting grid for ø 90 mm Petri dishes

Spiral counting grid (150 mm)

Ref. 413 015

Spiral counting grid for ø 150 mm Petri dishes

Adjustable plate for Petri dish (90-150 mm)

Ref. 413 019

Multiadaptable support for Petri dishes of 90 to 150 mm

Circle counting grid (90 mm)

Ref. 413 026

Circle mode counting grid for ø 90 mm Petri dishes

Circle counting grid (150 mm)

Ref. 413 027

Circle mode counting grid for ø 150 mm Petri dishes

EnzyClear

Ref. 413 029

Spiral plater detergent recommended for cleaning and pre-disinfection

Stylus (1 mL)

Ref. 414 001

Support for EppendorfTM (1.5 mL)

Ref. 414 002

Support for EppendorfTM - Sample intake 1.5 mL for easySpiral Dilute

Maintenance kit for platers (1 mL)

Ref. 414 003

Maintenance kit including: 1 stylus, 1 syringe, 1 silicone tubing (ref 413 006), 1 grease tube, 8 filters, 2 quick connectors

Box dimensions: 31x21.5x10 cm
Gross weight: 0.52 kg
Quantity: 1

Beakers (DB 50)

Ref. 415 100

1 000 beakers for Spiral plater (5 mL)

Box: 34x22x12 cm
Gross weight: 1.50 kg
Quantity: 1000

Blue dye for platers

Ref. 415 530

Color dye for Spiral tests (125 mL)

Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 1

Stickers for printer (dataLink pro)

Ref. 439 051

Set of 3 Labels roll for dataLink pro printer
Label size: 5x50mm

Box dimensions: 25.7x21.5x10.5 cm
Gross weight: 0.6 kg
Quantity: 3x2500

Film for printer (dataLink pro)

Ref. 439 052

Thermal transfer film for dataLink pro printer

Box dimensions: 12.88x11.5x8.5 cm
Gross weight: 0.22 kg
Quantity: 1

Bar-code reader

Ref. 522 000

Bar-code reader (1D)

Box dimensions: 26x16.5x11 cm
Gross weight: 0.66 kg
Quantity: 1

Tubings

Tubings

A Connection kit for GL45 bottle

413 003 - Kit de raccordement pour bouteille GL45

  • C Tube weights
  • E PTFE filter

A

Connection kit for GL45 bottle

Ref. 413 003

Autoclavable connection set for GL45 bottle

Box dimensions: 12x10x8 cm
Gross weight: 0.08 kg
Quantity: 1

Tubings

Ref. 413 006

Silicone tubing with filter for cleaning pump

Box dimensions: 12x10x8 cm
Gross weight: 0.04 kg
Quantity: 1

Filters for rinsing bath

Ref. 413 009

Set of 2 filters for rinsing bath

Box dimensions: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 2

C

Tube weights (Ø 3 mm)

Ref. 413 028

Set of 5 tube weights (inner Ø 3 mm)

Box dimensions: 12x8 cm
Gross weight: 0.04 kg
Quantity: 5

Double connection kit for GL45 bottle

Ref. 414 004

Double connection kit for GL45 bottle to be use on the same bottle

Box dimensions: 18x25 cm
Gross weight: 0.08 kg
Quantity: 1

E

PTFE filters 0.2 µm
(Ø 25 mm)

Ref. 513 023

Set of 5 autoclavable filters (0.2 µm) for GL45 bottle

Box: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 5
