Scan 100

Manual colony counter

The classic

Ref 435 000

Scan 100

Manual colony counter

The classic

Ref 435 000

<span lang='fr'>435001 Loupe option</span>

In option
Magnifying lens
Ref 435 001

Scan 100 enables the accurate counting of colonies on any type of media. The integrated USB key enables to export the results to guarantee traceability.

  • Counting on Petri dishes (Ø 55 to 150 mm), PetriFilmTM, MC-media PadsTM, Compact DryTM, filtration membranes
  • White LED lighting with adjustable intensity
  • Data export via USB, LIMS, ExcelTM

Presentation

Compatible with all types of media

Scan 100 is a manual colony counter suitable for all types of media: Petri dishes (Ø 55, 65, 90 and 150 mm), PetriFilmTM, MC-Media PadsTM, filtration membranes... The counting is done by simple touch, and then recorded. You can count from 0 to 1998 CFU.


Colony counting - en masse and surface

Surface and pour plate


Colony counting - Spiral

Spiral



 Colony counting - Circle

Circle



 Chromogenics

Chromogenic


Colony counting - PetriFilm

PetriFilmTM
Compact DryTM
MC-Media PadsTM


 Colony counting - Filtration membranes

Filtration membranes




Colony Counting - 150 mm diameter

Ø 55, 65, 90 and 150 mm

Dark Field: the best lighting for accuracy

INTERSCIENCE has designed a long-lasting white LED lighting system. Their design in a circle allows optimized contrast and highlights each colony for a accurate and fast counting. The brightness is adjustable.


<span lang='EN'>standard light - colony counter</span>

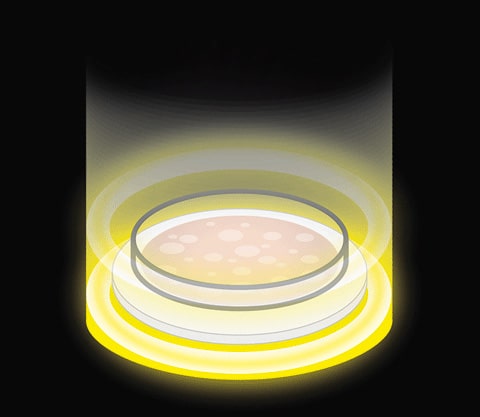

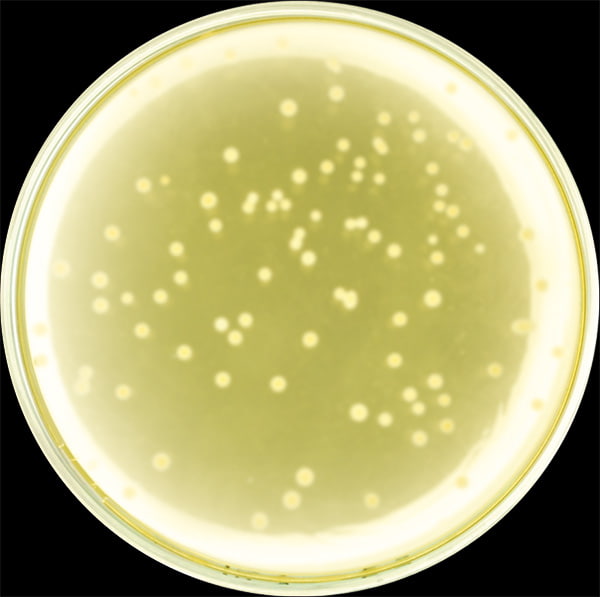

Standard neon lighting

The yellowish light spreads itself in the agar and the colonies. Lighting is uneven and contrast is imperfect.

The colonies are difficult to count. The operator is hindered by the lighting.


standard light - colony counter


Scan 100 - Dark-field lighting

Dark Field Technology

The light is diffused in the colony, the colony is highlighted on a perfectly black background.

The contrast is optimal with this indirect white lighting, the colonies are easy to count. The operator gains in working comfort and precision.


Scan 100 - Dark-field lighting

Touch surface with adjustable sensitivity

Counting with Scan 100 is intuitive: count the colonies on your dish, the touch pulse is doubled by a beeping sound. Sensitivity is adjustable via the "sensitivity" wheel.


`

Great ergonomics

The inclined reading plane and hand rest ensure comfort during the count. An integrated storage space is provided for the counting grids. Scan 100 is compatible with all types of pens or markers.


<span lang='EN'>Scan 100 - Ergonomics</span>


<span lang='EN'>Traceability - LIMS</span>


Traceability -USB


Traceability - Excel

Traceability

Save time by exporting via USB, LIMS, ExcelTM the data recorded during the count. This will prevent errors in rewriting results.

Warranty

Scan colony counters have 3-YEAR warranty (parts and labour) just by sending the warranty card back.


Logo Garantie 3 ans EN

Applications

The Scan 100 colony counter is used in the food, environmental, pharmaceutical, cosmetics, veterinary and public institutes research.


Application - Food


Application - Environmental


Application - Pharmaceutical


Application - Cosmetics


Applications - Veterinary


Application - Public research

Videos

Videos

Du prélèvement de l’échantillon à l’analyse bactérienne - Présentation

Download the video

Scan 100 - Manual colony counter: Overview

Download the video

Documents

Documents

Title
Language
Type
Size
Download
Scan 100 brochure
English
PDF
5.1 Mb
Scan 100 technical file
English
PDF
215.8 kb
EC Certificate
English
PDF
98.6 kb
UKCA Certificate
English
PDF
101.2 kb
ISO 9001-2015 Certificate
English
PDF
789.1 kb
Purosol Safety Data Sheet
English
PDF
113.9 kb
English catalog
English
PDF
5.9 Mb
Z
Scan 100 photo
Zip
1.1 Mb
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Z
435 001 - Magnifying lens photo
Zip
380.9 kb
Z
435 002 - Circle counting grids photo
Zip
949.7 kb
Z
435 010 - Spiral DS counting grids photo
Zip
349.1 kb
Z
435 020 - Wolffhuegel counting grids photo
Zip
1.1 Mb
Z
435 030 - Spiral counting grids (90 mm) photo
Zip
1 Mb
Z
435 035 - Spiral counting grids (150 mm) photo
Zip
349.2 kb
Z
435 037 - Circle counting grids photo
Zip
291.9 kb
Title
Language
Type
Size
Download

Specifications

Specifications

Scan 100
Reference 435 000
Type of colony counter Manual
Stainless steel N
Counting on pour, surface, Spiral and circle plated Petri dishes N
Counting on chromogenic dishes N
Counting on PetrifilmTM Manual
Counting on Compact DryTM Manual
Counting on MC-Media PadsTM Manual
Counting on filtration membranes Manual
Counting Manual (from 0 to 1998 CFU)
Adjustable counting beeps 4 sound levels
Counting zone Adjustable sensitivity of touch surface
Lighting technology White LED / Dark Field
Lighting system Adjustable LED intensity
Counting on Petri dishes Ø 55, Ø 65, Ø 90 and Ø 150 mm
Colony counter N
Data export Via USB, LIMS, ExcelTM
Voltage - Frequencies 100-240 V~ 50-60 Hz
Power 5 W
Warranty after recording the warranty card 3 years
International protection marking 20
In compliance with ISO 7218 and FDA BAM (Bacteriological Analytical Manual)
Dimensions (w x d x h) 24,9 x 31,2 x 17,3 cm
Net weight 4.57 kg
Box (w x d x h) 50 x 40 x 40 cm
Gross weight 7.85 kg
Delivered with: 1 white background plate, 1 Ø 90 mm Petri dish adapter, 1 black marker pen, 1 power cable, 1 USB cable, 1 quick user guide Attention : The magnifying lens is in option (Ref. 435 001)
Scan 100
Reference 435 000
Type of colony counter Manual
Stainless steel N
Counting on pour, surface, Spiral and circle plated Petri dishes N
Counting on chromogenic dishes N
Counting on PetrifilmTM Manual
Counting on Compact DryTM Manual
Counting on MC-Media PadsTM Manual
Counting on filtration membranes Manual
Counting Manual (from 0 to 1998 CFU)
Adjustable counting beeps 4 sound levels
Counting zone Adjustable sensitivity of touch surface
Lighting technology White LED / Dark Field
Lighting system Adjustable LED intensity
Counting on Petri dishes Ø 55, Ø 65, Ø 90 and Ø 150 mm
Colony counter N
Data export Via USB, LIMS, ExcelTM
Voltage - Frequencies 100-240 V~ 50-60 Hz
Power 5 W
Warranty after recording the warranty card 3 years
International protection marking 20
In compliance with ISO 7218 and FDA BAM (Bacteriological Analytical Manual)
Dimensions (w x d x h) 24,9 x 31,2 x 17,3 cm
Net weight 4.57 kg
Box (w x d x h) 50 x 40 x 40 cm
Gross weight 7.85 kg
Delivered with: 1 white background plate, 1 Ø 90 mm Petri dish adapter, 1 black marker pen, 1 power cable, 1 USB cable, 1 quick user guide Attention : The magnifying lens is in option (Ref. 435 001)

Calibrated according to the G.L.P (Good Laboratory Practice)

Products made for INTERSCIENCE by Interlab, an ISO 9001 certified company.

Accessories

Accessories

Magnifying lens

Ref. 435 001

Magnifying lens + 1 flexible arm for Scan 50, Scan 50 pro and Scan 100

Box: 25x19x5.5 cm
Gross weight: 0.68 kg
Quantity: 1

Adaptor for PetrifilmTM/MC-Media PadsTM/Compact DryTM

Ref. 435 002

Adapter for PetrifilmTM, MC-media PadsTM, Compact DrTM for Scan 100

Box: 16.5x16x6.5 cm
Gross weight: 0.15 kg
Quantity: 2

Spiral DS counting grids

Ref. 435 010

Spiral DS counting grids: 1 transparent & 1 white diffusing background - ø 90 mm / ø 150 mm
For Scan 100

Box: 16.5x16x6.5 cm
Gross weight: 0.09 kg
Quantity: 2

Wolffhuegel counting grids

Ref. 435 020

Wolffhuegel transparent and white counting grids for Scan 100

Box: 16.5x16x6.6 cm
Gross weight: 0.10 kg
Quantity: 2

Spiral counting grids (90 mm)

Ref. 435 030

easySpiral counting grids: 1 transparent and 1 white diffusing background for Scan 100 - ø 90 mm

Box: 16.5x16x6.7 cm
Gross weight: 0.10 kg
Quantity: 2

Spiral counting grids (150 mm)

Ref. 435 035

easySpiral counting grids: 1 transparent and 1 white diffusing background for Scan 100 - ø 150 mm

Box: 16.5x16x6.8 cm
Gross weight: 0.10 kg
Quantity: 2

Circle counting grids

Ref. 435 037

easySpiral Dilute circle counting grids: ø 90 mm / ø 150 mm - 1 transparent and 1 white diffusing background for Scan 100

Box: 15x25 cm
Gross weight: 0.09 kg
Quantity: 2

Optical cleaner + wipes

Ref. 435 702

Optical cleaner and wipes

Box dimensions: 25x19x5 cm
Gross weight: 0.32 kg
Quantity: 1
