FlexiPump Pro

Peristaltic dosing pump for liquid dispensing

High-tech and traceability

Ref. 562 000

FlexiPump Pro

Peristaltic dosing pump for liquid dispensing

High-tech and traceability

Ref. 562 000

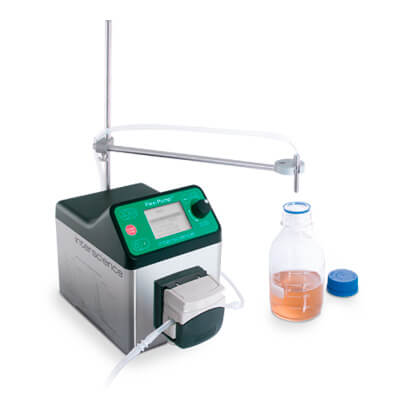

561 002 Adjustable dispensing arm - Accessoire


WORKING HANDS-FREE
Adjustable dispensing arm - ref. 561 002

FlexiPump Pro is a peristaltic pump with enhanced accuracy for the dispensing of culture media, agar and any type of diluent. Compact and ergonomic, it comes with a user-friendly interface. Traceability is guaranteed by printer and USB connection.

  • Dispensing mode: Continuous - Dose - Multi-dose
  • Dose volume: from 50 µL to 99.9 L
  • Flow rate: up to 2.5 L/min
  • Connection: USB, Jack 3.5 mm
Price request
More

Presentation


FlexiPump - Design

Designed for laboratories

FlexiPump is compact and easy to use with 3 dispensing modes: continuous, dose (predetermined volume) and multi-dose (predetermined volume, with an
adjustable pause between each dose). It has 32 customizable programs. FlexiPump easily calibrates and picks up in all types of containers.

Simplified distribution

The distribution can be done in series. The control is increased with the handy gun, the adjustable arm and the foot pedal.


Handy gun - dispensing gun
Culture media
E.g.: 9 mL
in test tubes


Handy gun - dispensing gun
Agar
E.g.: 18 mL
in Petri dish


FlexiPump - Adjustable dispensing arm
All liquid diluent
E.g.: 90 or 225 mL
in bottle or blender bag

Control and accuracy of the distributed volume

FlexiPump Pro is equipped with a powerful motor allowing the distribution of 50 µL to 99.9 L with a flow rate up to 2.5 L/min. The difference in precision between several distributions reaches 1%. FlexiPump Pro complies with ISO 7218 standards.


FlexiPump - distributed volume

Typical accuracy with 3.2 mm internal diameter tubing
9 mL 18 mL 225 mL
± 0,9 % ± 0,5 % ± 0,4 %


FlexiPump - Handy gun

Ergonomics of the workstation

FlexiPump Pro is compact: only 16 cm wide. The large screen and the rotating button enable easy programing. The standard distribution in all types of containers is simplified thanks to the ergonomic spray gun.

New

Pure water, instantly, with Steriwater

Steriwater is an instant solution for sterile water production in laboratories. This solution simplifies the distribution of sterile water with FlexiPump for the preparation of your media (tubes, bags, bottles). Set-up is quick and easy.

<!—>

Applications

FlexiPump Pro is used for all mass dispensing in the food, environmental, pharmaceutical, cosmetic, veterinary industries and public research institutes. It can also be used for chemical transfer or bottling applications such as e-liquid packaging.


Food


Environment


Pharmaceutical


Cosmetic


Veterinary


Public research

Videos

Videos

FlexiPump - Dispensing pumps: Overview of the range

Download the video

Unboxing - Dispensing pumps: FlexiPump model

Download the video

Steriwater - instant water sterilization solution: Overview

Download the video

From sample preparation to bacterial analyses - Overview

Download the video

From sampling to bacterial counting - Overview

Download the video

Resources

Resources

Title
Language
Type
Size
Download
PDF
1.4 Mb
Language: English
FlexiPump brochure
PDF
1.5 Mb
Language: English
Tubings guide
PDF
300.7 kb
Language: English
FlexiPump Pro technical file
PDF
199.7 kb
Language: English
EC Certificate Gravimetric dilutors and Dispensing pumps
PDF
161.3 kb
Language: English
UKCA Certificate Gravimetric dilutors and Dispensing pumps
PDF
557.3 kb
Language: English, french
ISO 9001 Certificate
PDF
46.9 Mb
Language: English
English catalog
Z
Zip
605.5 kb
FlexiPump Pro photo
Z
Zip
1020.1 kb
FlexiPump Pro - Screen photo
Title
Language
Type
Size
Download
PDF
251.2 kb
Language: English
Application note - Dispensing repeatability of 9 mL from a 2-liter bottle with FlexiPump
PDF
262 kb
Language: English
Application note - Dispensing repeatability of 9 mL diluent bag with FlexiPump
PDF
162.7 kb
Language: English
Application note - 50 ML dispensing test with FlexiPump Pro
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Z
Zip
322.6 kb
410 130 - Film for printer photo
Z
Zip
725.8 kb
410 150 - Printer photo
Z
Zip
1.8 Mb
507 008 - Foot pedal photo
Z
Zip
292.8 kb
513 001 - 5L bottle (GL45) photo
Z
Zip
862.1 kb
513 015 - Independent stand for 2 broth bags photo
Z
Zip
295 kb
521 012 - Sticker for printer photo
Z
Zip
2 Mb
521 110 - Paper for print photo
Z
Zip
1.7 Mb
561 001 - Handy Gun photo
Z
Zip
1 Mb
561 001 - Handy Gun - Gun photo
Z
Zip
324.5 kb
561 001 - Handy Gun - Mouse photo
Z
Zip
980.3 kb
561 001 - Handy Gun - Pen photo
Z
Zip
1.1 Mb
561 002 - Adjustable dispensing arm photo
Title
Language
Type
Size
Download
Z
Zip
2.5 Mb
413 028 - Tube weights 3 mm photo
Z
Zip
202.3 kb
505 017 - Nozzle cap for trocar photo
Z
Zip
215.6 kb
513 011 - Tubings for pump (Ø 4.8 mm) photo
Z
Zip
1.4 Mb
513 020 - Trocar for broth bags photo
Z
Zip
745.4 kb
513 023 - PTFE filters 0.2 µL Ø 25 mm photo
Z
Zip
253.1 kb
513 024 - Nozzle for tubings 4.8 to 8 mm photo
Z
Zip
184.8 kb
513 039 - Tube weights ø 6 mm photo
Z
Zip
246 kb
513 040 - Nozzles tubings (Ø 1.6 - 3.2 mm) photo
Z
Zip
627.9 kb
513 048 - Nozzle cap (Ø 1.6 - 3.2 mm) photo
Z
Zip
793.8 kb
513 052 - Tubings for pump with filter 0.2 µm (Ø 6.4 mm) photo
Z
Zip
194.9 kb
561 301 - Tubings for pump (Ø 1.6 mm) photo
Z
Zip
196.5 kb
561 302 - Tubings for pump (Ø 3.2 mm) photo
Z
Zip
195.2 kb
561 304 - Tubings for pump (Ø 6.4 mm) photo
Z
Zip
193.1 kb
561 305 - Tubings for pump (Ø 8 mm) photo
Z
Zip
388.1 kb
561 401 - Autoclavable GL45 stopper + 0.2 µm filter photo
Z
Zip
386.4 kb
562 051 - Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm)
Z
Zip
293.5 kb
562 101 - Dispensing assembly + Y (GL45 - Ø 1.6 mm) photo
Z
Zip
318 kb
562 102 - Dispensing assembly + Y (GL45 - Ø 3.2 mm) photo
Z
Zip
88.3 kb
562 201 - Tubings + Y (Ø 1.6 mm) photo
Z
Zip
317.4 kb
562 103 - Dispensing assembly + Y (GL45 - Ø 4.8 mm) photo
Z
Zip
316.9 kb
562 104 - Dispensing assembly + Y (GL45 - Ø 6.4 mm) photo
Z
Zip
313.3 kb
562 105 - Dispensing assembly + Y (GL45 - Ø 8 mm) photo
Z
Zip
213.2 kb
562 202 - Tubings + Y (Ø 3.2 mm) photo
Z
Zip
213.4 kb
562 203 - Tubings + Y (Ø 4.8 mm) photo
Z
Zip
212.2 kb
562 204 - Tubings + Y (Ø 6.4 mm) photo
Z
Zip
209.6 kb
562 205 - Tubings + Y (Ø 8 mm) photo
Z
Zip
124.2 kb
562 400 - Y connectors (tubings Ø 1.6 mm)
Z
Zip
194.8 kb
562 401 - Y connectors (tubings Ø 6.4 - 8 mm) photo
Z
Zip
7.3 Mb
562 402 - Y connectors (tubings Ø 3.2 mm) photo

Specifications

Specifications

FlexiPump Pro
Reference 562 000
OVERVIEW
All stainless steel 304 L N
Handy gun compatible N
Traceability (printer, computer,
USB stick) 		N
Double-head pump for high accuracy and high flow N
SPECIFICATIONS
Volume dispensed in dose mode and multi-dose mode 50 µL to 99 L
Typical dispensing accuracy with inner Ø 3.2 mm tubing 9 mL: ± 0.9% - 18 mL: ± 0.5% - 225 mL: ± 0.4%
Dispensing modes Continuous - Dose - Multi-dose
Number of customizable programs 32
Multi-dose pause Adjustable from 0.1 to 99.9 s
Number of dispensings for 9 mL tubes 40 x 9 mL tubes in 1 min (in multi-dose mode with a delay of 0.1 s under optimal conditions)
Number of dispensings for 18 mL dishes 29 x 18 mL plates in 1 min (in multi-dose mode with a delay of 0.1 s under optimal conditions)
Number of dispensings for 220 mL sample bags 8 dispensings of 220 mL in 1 min (in multi-dose mode with a delay of 0.1 s under optimal conditions)
Watson MarlowTM pump Low pulsation double pump head
Flow rates 3 mL/min to 2.5 L/min
Pump head rotating speed 10 to 550 rpm
Tubing material Tygon™ (for pump head) and silicon
Connections 2 x USB type A, USB type B, 3.5 mm jack
Voltage - Frequencies 100-240 V~ 50-60 Hz
Fuses T 2,5 A L 250 V 5x20 mm
Power 50 W
Warranty 1 year
International protection marking IP31
Spare parts availability 10 years
In compliance with ISO 7218, ISO 6887 to FDA BAM (Bacteriological Analytical Manual)
TRACEABILITY
Traceability Operator name, dispensing mode accuracy, last calibration, date, time, speed, Ø tubing
Links USB type A (printer, USB stick) USB type B (PC)
Data export Compatible CSV Excel™, Open Office Calc™, LIMS
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): FlexiPump 16.1 x 33.2 x 20.8 cm
Dimensions (w x d x h): FlexiPump + Handy gun (Ref. 561 001) 19.4 x 33.5 x 20.8 cm
Dimensions (w x d x h): FlexiPump + Adjustable dispensing arm
(Ref. 561 002) 		40.8 x 39.1 x 43.4 cm
Net weight: FlexiPump 5.55 kg
Net weight: FlexiPump + Handy gun (Ref. 561 001) 5.70 kg
Net weight: FlexiPump + Adjustable dispensing arm (Ref. 561 002) 6.10 kg
Box dimensions (w x d x h) 50 x 40 x 40 cm
Gross weight: FlexiPump 8.45 kg
Gross weight: FlexiPump + Handy gun (Ref. 561 001) 8.60 kg
Gross weight: FlexiPump + Adjustable dispensing arm (Ref. 561 002) 9.10 kg
DELIVERED WITH
2 peristaltic Watson Marlow™ pump heads, 1 set of 3.2 mm dispensing assembly (nozzle + GL45 bottle connector + filter + tubing + tube weight), 1 set of 6.4 mm dispensing assembly, 1 user’s manual, 1 power cord, 1 USB cable, 1 free pack of blender bags, 1 conformity certificate / warranty card
FlexiPump Pro
Reference 562 000
OVERVIEW
All stainless steel 304 L N
Handy gun compatible N
Traceability (printer, computer,
USB stick) 		N
Double-head pump for high accuracy and high flow N
SPECIFICATIONS
Volume dispensed in dose mode and multi-dose mode 50 µL to 99 L
Typical dispensing accuracy with inner Ø 3.2 mm tubing 9 mL: ± 0.9% - 18 mL: ± 0.5% - 225 mL: ± 0.4%
Dispensing modes Continuous - Dose - Multi-dose
Number of customizable programs 32
Multi-dose pause Adjustable from 0.1 to 99.9 s
Number of dispensings for 9 mL tubes 40 x 9 mL tubes in 1 min (in multi-dose mode with a delay of 0.1 s under optimal conditions)
Number of dispensings for 18 mL dishes 29 x 18 mL plates in 1 min (in multi-dose mode with a delay of 0.1 s under optimal conditions)
Number of dispensings for 220 mL sample bags 8 dispensings of 220 mL in 1 min (in multi-dose mode with a delay of 0.1 s under optimal conditions)
Watson MarlowTM pump Low pulsation double pump head
Flow rates 3 mL/min to 2.5 L/min
Pump head rotating speed 10 to 550 rpm
Tubing material Tygon™ (for pump head) and silicon
Connections 2 x USB type A, USB type B, 3.5 mm jack
Voltage - Frequencies 100-240 V~ 50-60 Hz
Fuses T 2,5 A L 250 V 5x20 mm
Power 50 W
Warranty 1 year
International protection marking IP31
Spare parts availability 10 years
In compliance with ISO 7218, ISO 6887 to FDA BAM (Bacteriological Analytical Manual)
TRACEABILITY
Traceability Operator name, dispensing mode accuracy, last calibration, date, time, speed, Ø tubing
Links USB type A (printer, USB stick) USB type B (PC)
Data export Compatible CSV Excel™, Open Office Calc™, LIMS
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): FlexiPump 16.1 x 33.2 x 20.8 cm
Dimensions (w x d x h): FlexiPump + Handy gun (Ref. 561 001) 19.4 x 33.5 x 20.8 cm
Dimensions (w x d x h): FlexiPump + Adjustable dispensing arm
(Ref. 561 002) 		40.8 x 39.1 x 43.4 cm
Net weight: FlexiPump 5.55 kg
Net weight: FlexiPump + Handy gun (Ref. 561 001) 5.70 kg
Net weight: FlexiPump + Adjustable dispensing arm (Ref. 561 002) 6.10 kg
Box dimensions (w x d x h) 50 x 40 x 40 cm
Gross weight: FlexiPump 8.45 kg
Gross weight: FlexiPump + Handy gun (Ref. 561 001) 8.60 kg
Gross weight: FlexiPump + Adjustable dispensing arm (Ref. 561 002) 9.10 kg
DELIVERED WITH
2 peristaltic Watson Marlow™ pump heads, 1 set of 3.2 mm dispensing assembly (nozzle + GL45 bottle connector + filter + tubing + tube weight), 1 set of 6.4 mm dispensing assembly, 1 user’s manual, 1 power cord, 1 USB cable, 1 free pack of blender bags, 1 conformity certificate / warranty card

GLP-Compliant use (Good Laboratory Practice)

Products made for Interscience by Interlab, an ISO 9001 certified company.

Accessories

Accessories

Film for printer

Ref. 410 130

Printer

Ref. 410 150

2L bottle (GL45)

Ref. 413 002

Foot pedal

Ref. 507 008

5L bottle (GL45)

Ref. 513 001

Independent stand for broth bags

Ref. 513 015

Sticker for printer

Ref. 521 012

Paper for printer

Ref. 521 110

Handy Gun

Ref. 561 001

Adjustable dispensing arm

Ref. 561 002

Film for printer

Ref. 410 130

Thermal transfer film for printer

Box dimensions: 12x10x8 cm
Gross weight: 0.08 kg
Quantity: 1

Printer

Ref. 410 150

Thermal printer (RS 232 and USB output). Delivered with 1 thermal transfer film + power cable + USB cable

Box dimensions: 37x35x25 cm
Gross weight: 3.50 kg
Quantity: 1

2L bottle (GL45)

Ref. 413 002

Set of 3 GL45 glass bottle (2L), autoclavable

Box: 37x37x37 cm
Gross weight: 4.10 kg
Quantity: 3

Foot pedal

Ref. 507 008

For hands-free dispensing. Connection with a 3.5 mm Jack

Box: 15x10x10 cm
Gross weight: 0.15 kg
Quantity: 1

5L bottle (GL45)

Ref. 513 001

GL45 glass bottle (5L), autoclavable

Box: 37x35x25 cm
Gross weight: 1.70 kg
Quantity: 1

Independent stand for broth bags

Ref. 513 015

Independent stand for 2 broth bags

Box: 59x37x29 cm
Gross weight: 1.90 kg
Quantity: 1

Sticker for printer

Ref. 521 012

Set of 2 rolls of 1000 stickers for thermal printer - Label size: 70 x 45 mm

Box dimensions: 20x10x10 cm
Gross weight: 1.00 kg
Quantity: 2x1000

Paper for printer

Ref. 521 110

Set of 2 thermal paper rolls for printer

Box dimensions: 25x10x10 cm
Gross weight: 1.50 kg
Quantity: 2

Handy Gun

Ref. 561 001

Dispensing control with handy gun including electronic start button

Box dimensions: 15x15x5 cm
Gross weight: 0.12 kg
Quantity: 1

Adjustable dispensing arm

Ref. 561 002

To fill various containers

Box dimensions: 34x22x12 cm
Gross weight: 0.60 kg
Quantity: 1

Tubings

Tubings

B FlexiPump Pro dispensing assembly + Y

Dispensing assembly for Booster Kit / FlexiPump Pro

  • C Tube weights
  • D Trocar
  • E PTFE filter
  • F Autoclavable GL45 stopper
  • G Silicone tubings
  • I Y connectors
  • J TygonTM tubings for pump
  • K TygonTM tubings for pump with filter 0.2 µm
  • L Nozzles
  • M Protection cap

C

Tube weights (Ø 3 mm)

Ref. 413 028
J

Tubings for pump (Ø 4.8 mm)

Ref. 513 011
D

Trocar

Ref. 513 020
E

PTFE filters 0.2 µm
(Ø 25 mm)

Ref. 513 023
L + M

Nozzles
(tubings Ø 4.8 - 8 mm)

Ref. 513 024
C

Tube weights
(Ø 6 mm)

Ref. 513 039
L + M

Nozzles (tubings Ø 1.6 - 3.2 mm)

Ref. 513 040
M

Cap
(Ø 1.6 - 3.2 mm)

Ref. 513 048
M

Cap
(Ø 4.8 - 8 mm)

Ref. 513 049
K

Tubings for pump Steriwater (Ø 6.4 mm)

Ref. 513 052
J

Tubings for pump (Ø 1.6 mm)

Ref. 561 301
J

Tubings for pump
(Ø 3.2 mm)

Ref. 561 302
J

Tubings for pump
(Ø 6.4 mm)

Ref. 561 304
J

Tubings for pump (Ø 8 mm)

Ref. 561 305
E + F

Autoclavable GL45 stopper + 0.2 µm filter

Ref. 561 401
B

Dispensing assembly + Y Steriwater (GL45 - Ø 6.4 mm)

Ref. 562 051
B

Dispensing assembly + Y
(GL45 - Ø 1.6 mm)

Ref. 562 101
B

Dispensing assembly + Y
(GL45 - Ø 3.2 mm)

Ref. 562 102
B

Dispensing assembly + Y
(GL45 - Ø 4.8 mm)

Ref. 562 103
B

Dispensing assembly + Y
(GL45 - Ø 6.4 mm)

Ref. 562 104
B

Dispensing assembly + Y
(GL45 - Ø 8 mm)

Ref. 562 105
G + J + I

Tubings + Y
(Ø 1.6 mm)

Ref. 562 201
G + J + I

Tubings + Y
(Ø 3.2 mm)

Ref. 562 202
G + J + I

Tubings + Y
(Ø 4.8 mm)

Ref. 562 203
G + J + I

Tubings + Y
(Ø 6.4 mm)

Ref. 562 204
G + J + I

Tubings + Y
(Ø 8 mm)

Ref. 562 205
I

Y connectors
(tubings Ø 1.6 mm)

Ref. 562 400
I

Y connectors
(tubings Ø 6.4 - 8 mm)

Ref. 562 401
I

Y connectors
(tubings Ø 3.2 mm)

Ref. 562 402
I

Y connectors
(tubings Ø 4.8 mm)

Ref. 562 403
C

Tube weights (Ø 3 mm)

Ref. 413 028

Set of 5 tube weights (inner Ø 3 mm)

Box dimensions: 12x8 cm
Gross weight: 0.04 kg
Quantity: 5

J

Tubings for pump (Ø 4.8 mm)

Ref. 513 011

Set of 6 TygonTM tubings for pump part (20 cm). inner Ø 4.8 mm

Box: 26x21x11 cm
Gross weight: 0.06 kg
Quantity: 6

D

Trocar

Ref. 513 020

Stainless steel trocar + cap for broth bags

Box: 12x10x8 cm
Gross weight: 0.03 kg
Quantity: 1

E

PTFE filters 0.2 µm
(Ø 25 mm)

Ref. 513 023

Set of 5 autoclavable PTFE filters (0.2 µm) for GL45 bottle

Box: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 5

L + M

Nozzles
(tubings Ø 4.8 - 8 mm)

Ref. 513 024

Set of 5 PEEK nozzles + caps for tubings from 4.8 to 8 mm inner diameter

Box: 15x15x6 cm
Gross weight: 0.10 kg
Quantity: 5

C

Tube weights
(Ø 6 mm)

Ref. 513 039

Set of 5 PTFE tube weights - Ø 6 mm

Box: 8x12 cm
Gross weight: 0.30 kg
Quantity: 5

L + M

Nozzles (tubings Ø 1.6 - 3.2 mm)

Ref. 513 040

Set of 5 PEEK nozzles + caps for tubings from 1.6 to 3.2 mm inner diameter

Box: 8x12 cm
Gross weight: 0.07 kg
Quantity: 5

M

Cap
(Ø 1.6 - 3.2 mm)

Ref. 513 048

Set of 5 protections for nozzles (tubings Ø 1.6 - 3.2 mm) or trocar.

Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10

M

Cap
(Ø 4.8 - 8 mm)

Ref. 513 049

Set of 5 protections for nozzles (tubings Ø 4.8 - 8 mm)

Box: 8x12 cm
Gross weight: 0.01 kg
Quantity: 5

K

Tubings for pump Steriwater (Ø 6.4 mm)

Ref. 513 052

Set of 2 TygonTM tubing for pump part (50 cm) + 2 filters 0.2 µm. inner Ø 6.4 mm

Box dimensions: 22x36x10 cm
Gross weight: 0.23 kg
Quantity: 2

J

Tubings for pump (Ø 1.6 mm)

Ref. 561 301

Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 1.6 mm

Box dimensions: 26x21.1x11 cm
Gross weight: 0.03 kg
Quantity: 6

J

Tubings for pump
(Ø 3.2 mm)

Ref. 561 302

Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 3.2 mm

Box dimensions: 26x21.1x11 cm
Gross weight: 0.04 kg
Quantity: 6

J

Tubings for pump
(Ø 6.4 mm)

Ref. 561 304

Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 6.4 mm

Box dimensions: 26x21.1x11 cm
Gross weight: 0.07 kg
Quantity: 6

J

Tubings for pump (Ø 8 mm)

Ref. 561 305

Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 8 mm

Box dimensions: 26x21.1x11 cm
Gross weight: 0.08 kg
Quantity: 6

E + F

Autoclavable GL45 stopper + 0.2 µm filter

Ref. 561 401

Autoclavable GL45 stopper for GL45 bottle + 0.2 µm filter

Box dimensions: 10x12 cm
Gross weight: 0.04 kg
Quantity: 1

B

Dispensing assembly + Y Steriwater (GL45 - Ø 6.4 mm)

Ref. 562 051

Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + filter + tube weight + nozzle + cap + "Y" + 2 filters 0.2 µm - Compatible with FlexiPump Pro and FlexiPump Scale

Box dimensions: 22x36x10 cm
Gross weight: 0.4 kg
Quantity: 1

B

Dispensing assembly + Y
(GL45 - Ø 1.6 mm)

Ref. 562 101

Set of silicone tubings inner Ø 1.6 mm + GL45 screw cap + tube weight + nozzle + cap + filter + "Y"

Box dimensions: 39x27x15 cm
Gross weight: 0.13 kg
Quantity: 1

B

Dispensing assembly + Y
(GL45 - Ø 3.2 mm)

Ref. 562 102

Set of silicone tubings inner Ø 3.2 mm + GL45 screw cap + tube weight + nozzle + cap + filter + "Y"

Box dimensions: 20x20x10 cm
Gross weight: 0.20 kg
Quantity: 1

B

Dispensing assembly + Y
(GL45 - Ø 4.8 mm)

Ref. 562 103

Set of silicone tubings inner Ø 4.8 mm + GL45 screw cap + tube weight + nozzle + cap + filter + "Y"

Box dimensions: 35x21x10 cm
Gross weight: 0.25 kg
Quantity: 1

B

Dispensing assembly + Y
(GL45 - Ø 6.4 mm)

Ref. 562 104

Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + cap + filter + "Y"

Box dimensions: 25x20x10 cm
Gross weight: 0.25 kg
Quantity: 1

B

Dispensing assembly + Y
(GL45 - Ø 8 mm)

Ref. 562 105

Set of silicone tubings inner Ø 8 mm + GL45 screw cap + tube weight + nozzle + cap + filter + "Y"

Box dimensions: 35x21x10 cm
Gross weight: 0.25 kg
Quantity: 1

G + J + I

Tubings + Y
(Ø 1.6 mm)

Ref. 562 201

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 1.6 mm

Box dimensions: 25x25x10 cm
Gross weight: 0.40 kg
Quantity: 5

G + J + I

Tubings + Y
(Ø 3.2 mm)

Ref. 562 202

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 3.2 mm

Box dimensions: 30x20x10 cm
Gross weight: 0.50 kg
Quantity: 5

G + J + I

Tubings + Y
(Ø 4.8 mm)

Ref. 562 203

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 4.8 mm

Box dimensions: 30x20x10 cm
Gross weight: 0.65 kg
Quantity: 5

G + J + I

Tubings + Y
(Ø 6.4 mm)

Ref. 562 204

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 6.4 mm

Box dimensions: 30x20x20 cm
Gross weight: 0.65 kg
Quantity: 5

G + J + I

Tubings + Y
(Ø 8 mm)

Ref. 562 205

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 8 mm

Box dimensions: 30x20x20 cm
Gross weight: 0.70 kg
Quantity: 5

I

Y connectors
(tubings Ø 1.6 mm)

Ref. 562 400

Set of 6 "Y" plastic connectors for Ø 1.6 mm tubings

Box dimensions: 12x8 cm
Gross weight: 0.02 kg
Quantity: 6

I

Y connectors
(tubings Ø 6.4 - 8 mm)

Ref. 562 401

Set of 6 "Y" plastic connectors for Ø 6.4 and 8 mm tubings

Box dimensions: 12x8 cm
Gross weight: 0.02 kg
Quantity: 6

I

Y connectors
(tubings Ø 3.2 mm)

Ref. 562 402

Set of 6 "Y" plastic connectors for Ø 3.2 mm tubings

Box dimensions: 12x8 cm
Gross weight: 0.05 kg
Quantity: 6

I

Y connectors
(tubings Ø 4.8 mm)

Ref. 562 403

Set of 6 "Y" plastic connectors for Ø 4.8 mm tubings

Dimensions de l’emballage : 12x8 cm
Poids brut : 0,01 kg
Quantité : 6

© Interscience 2025. All rights reserved
