DiluFlow
Gravimetric dilutor 3 kg
Tech must-have
Ref 501 103 (single pump)
Ref 501 203 (double pump)
DiluFlow
Gravimetric dilutor 3 kg
Tech must-have
Ref 501 103 (single pump)
Ref 501 203 (double pump)
The DiluFlow automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, and all traceability is guaranteed.
225 mL in 10 s Dilution factor: 1/2 to 1/99 Dilution accuracy: > 99%* Max weight: 3000 g
* in Standard or Accurate mode (in optimal conditions)
Presentation
User-friendly and efficient
With the press of only 2 keys, the DiluFlow gravimetric dilutor provides an accurate dilution of all types of samples from 5 to 300 g (at 1/10th ). In compliance with ISO 7218 and ISO 6887.
Ultra-low profile
Widest possible opening for the bag and lowest loading threshold on the market! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.
Removable drip tray
In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED
GeckoGrip holding system
This patented system replaces the adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED

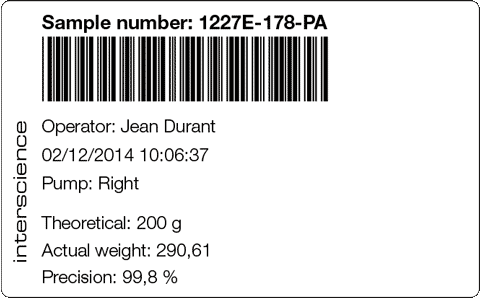

Traceability of results
DiluFlow exports the analysis data to the printer and to the supervision software (Export data to ExcelTM , Open OfficeTM , CSV file, printer).
LightCode
LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.
Green
Accuracy > 98%
Orange
Accuracy > 95%
Red
Accuracy < 95%
Blue
Scale stabilizing
Magnetic BagOpen
The shape of the bag rack allows easy and ergonomic insertion of the bag. Its attachment by 2 magnetic points ensures a better distribution of the weight of the sample and contributes to the stability of the weighing platform.
PATENTED SHAPE
Applications
The DiluFlow gravimetric dilutor is used for microbiological analyses in the food, environmental industries and public institutes research. It is used for the preparation of samples before their quality analysis for the control of raw materials, the control of products in production and the control of the finished products.
Documents
Documents
Title
Language
Type
Size
Download
DiluFlow range brochure
English
PDF
8.6 Mb
Tubings guide
English
PDF
1 Mb
DiluFlow 3 kg Technical file
English
PDF
762.6 kb
EC Certificate
English
PDF
100 kb
UKCA Certificate
English
PDF
102.7 kb
ISO 9001-2015 Certificate
English
PDF
789.1 kb
English catalog
English
PDF
5.9 Mb
Z
DiluFlow range photo
Zip
1.2 Mb
Z
DiluFlow photo
Zip
817.4 kb
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Z
410 130 - Film for printer photo
Zip
322.6 kb
Z
410 150 - Printer photo
Zip
725.8 kb
Z
505 001 - BagOpen 400 for dilutors photo
Zip
1 Mb
Z
505 002 - Weighing platform photo
Zip
503.1 kb
Z
505 003 - Tongs platform photo
Zip
608.6 kb
Z
505 004 - Adjustable distribution system photo
Zip
227.2 kb
Z
505 009 - GeckoGrip for BagOpen 400/3500 photo
Zip
435.4 kb
Z
505 014 - BagOpen 80-100 mL for dilutors photo
Zip
1.2 Mb
Z
505 015 - GeckoGrip for BagOpen 80-100 photo
Zip
272.4 kb
Z
505 016 - BagOpen 400 for dilutors (stainless steel) photo
Zip
1.4 Mb
Z
507 008 - Foot pedal photo
Zip
1.8 Mb
Z
511 000 - Booster kit photo
Zip
977 kb
Z
513 001 - 5L bottle (GL45) photo
Zip
292.8 kb
Z
513 005 - Certified standard weight (500 g) photo
Zip
171.2 kb
Z
513 015 - Independent stand for 2 broth bags photo
Zip
862.1 kb
Z
521 012 - Sticker for printer photo
Zip
295 kb
Z
521 110 - Paper for print photo
Zip
2 Mb
Title
Language
Type
Size
Download
Z
505 012 - Adjustable nozzles (L 23.5 cm - tubings Ø 3.2 mm) photo
Zip
285.3 kb
Z
505 013 - Adjustable nozzles (L 12 cm - tubings Ø 6.4 mm) photo
Zip
258.2 kb
Z
505 017 - Nozzle cap for trocar photo
Zip
202.3 kb
Z
513 008 - Booster kit dispensing assembly (GL45 - Ø 3.2 mm) photo
Zip
331.1 kb
Z
513 009 - Tubings + Y (Ø 3.2 mm) photo
Zip
191.5 kb
Z
513 011 - Tubings for pump (Ø 4.8 mm) photo
Zip
215.6 kb
Z
513 016 - Dispensing assembly for broth bags (Ø 4.8 mm) photo
Zip
220.4 kb
Z
513 020 - Trocar for broth bags photo
Zip
1.4 Mb
Z
513 023 - PTFE filters 0.2 µL Ø 25 mm photo
Zip
745.4 kb
Z
513 024 - Nozzle for tubings 4.8 to 8 mm photo
Zip
253.1 kb
Z
513 039 - Tube weights ø 6 mm photo
Zip
184.8 kb
Z
513 040 - Nozzles tubings (Ø 1.6 - 3.2 mm) photo
Zip
246 kb
Z
513 041 - Booster kit dispensing assembly (GL45 - Ø 6.4 mm) photo
Zip
366.8 kb
Z
513 042 - Tubings + Y (Ø 6.4 mm) photo
Zip
293.2 kb
Z
513 043 - Dispensing assembly (GL45 - Ø 6.4 mm) photo
Zip
320.6 kb
Z
513 044 - Tubings (Ø 6.4 mm) photo
Zip
249.4 kb
Z
513 045 - Dispensing assembly (GL45 - Ø 3.2 mm) photo
Zip
109.5 kb
Z
513 047 - Tubings (Ø 3.2 mm) photo
Zip
183.8 kb
Z
513 048 - Nozzle cap (Ø 1.6 - 3.2 mm) photo
Zip
205 kb
Z
561 302 - Tubings for pump (Ø 3.2 mm) photo
Zip
196.5 kb
Z
561 304 - Tubings for pump (Ø 6.4 mm) photo
Zip
195.2 kb
Z
561 401 - Autoclavable GL45 stopper + 0.2 μm filter photo
Zip
388.1 kb
Z
561 403 - Straight connectors (tubings Ø 3.2 - 4.8 mm) photo
Zip
252.8 kb
Z
561 404 - Straight connectors (tubings Ø 3.2 - 4.8 mm) photo
Zip
198.9 kb
Z
562 401 - Y connectors (tubings Ø 6.4 - 8 mm) photo
Zip
194.8 kb
Z
562 402 - Y connectors (tubings Ø 3.2 mm) photo
Zip
7.3 Mb
Specifications
Specifications
DiluFlow 3 kg (single pump)
Reference
501 103
BagOpen height < 30 cm
N
Removable drip tray (patented)
N
BagOpen with GeckoGrip system (patented)
N
Magnetic stand for BagOpen (patented shape)
N
LightCode: color status LED
N
Compatible with booster kit
N
304L stainless steel body
N
Stainless casting electromechanical core
N
Resolution up to 200 g
0.01 g
Weighing range
0.1 to 3000 g
Max weight without support
4500 g
Weighing accuracy
0 g to 100 g : ± 0.05 g / 100 g to 3000 g : ± 0.1%
Minimum weight required for dilution
5 g
Minimum weight required for distribution
5 g
Dilution factor
1/2 to 1/99
Dilution/distribution accuracy
> 99% in Standard or Accurate mode (in optimal conditions)
Dilution time for a 25g sample diluted to 1/10
< 9 s (with booster kit in Fast mode)
Distribution time for 90 mL
< 7 s (with booster kit in Fast mode)
Distribution time for 225 mL
< 10 s (with booster kit in Fast mode)
Max number of pumps
2 integrated
Dilution/distribution mode
Fast / Standard / Accurate
Traceability
Printer / Supervision software (export to ExcelTM / OpenOfficeTM , CSV file, printer)
Exported data
Sample weight / Total weight / Dilution factor / Dilution accuracy / Right or left pump + with supervision software: Sample number / Name of operator / Date / Time
Connection
RS232 output for printer / USB port for computer / Jack output for foot pedal connection
Net weight
10.1 kg
Dimensions (w x d x h)
31.3 x 43.7 x 39.4 cm
Box (w x d x h)
55 x 55 x 40.5 cm
Gross weight
16.1 kg
Language
English
Voltage - Frequencies
100-240 V~ 50/60 Hz
Fuses
T3.15A L 250V 5x20 mm
Power
60 W
International protection marking
22
Warranty
1 year
In compliance with
ISO 7218 - ISO 6887
Delivered with: 1 distribution arm, 1 drip tray 400, 1 or 2 pumps, 1 distribution assembly (GL45 - Ø 6.4 mm) per pump, 1 USB cable, 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutor, 1 user's manual, 1 conformity certificate / warranty card, 10 GeckoGrip, 1 pack of adhesive putty, blender bags samples
DiluFlow 3 kg (double pump)
Reference
501 203
BagOpen height < 30 cm
N
Removable drip tray (patented)
N
BagOpen with GeckoGrip system (patented)
N
Magnetic stand for BagOpen (patented shape)
N
LightCode: color status LED
N
Compatible with booster kit
N
304L stainless steel body
N
Stainless casting electromechanical core
N
Resolution up to 200 g
0.01 g
Weighing range
0.1 to 3000 g
Max weight without support
4500 g
Weighing accuracy
0 g to 100 g : ± 0.05 g / 100 g to 3000 g : ± 0.1%
Minimum weight required for dilution
5 g
Minimum weight required for distribution
5 g
Dilution factor
1/2 to 1/99
Dilution/distribution accuracy
> 99% (with booster kit in Standard or Accurate mode)
Dilution time for a 25g sample diluted to 1/10
< 9 s (with booster kit in Fast mode)
Distribution time for 90 mL
< 7 s (with booster kit in Fast mode)
Distribution time for 225 mL
< 10 s (with booster kit in Fast mode)
Max number of pumps
2 integrated
Dilution/distribution mode
Fast / Standard / Accurate
Traceability
Printer / Supervision software (export to ExcelTM / OpenOfficeTM , CSV file, printer)
Exported data
Sample weight / Total weight / Dilution factor / Dilution accuracy / Right or left pump + with supervision software: Sample number / Name of operator / Date / Time
Connection
RS232 output for printer / USB port for computer / Jack output for foot pedal connection
Net weight
12.5 kg
Dimensions (w x d x h)
37 x 43.7 x 39.4 cm
Box (w x d x h)
55 x 55 x 40.5 cm
Gross weight
18.6 kg
Language
English
Voltage - Frequencies
100-240 V~ 50/60 Hz
Fuses
T3.15A L 250V 5x20 mm
Power
60 W
International protection marking
22
Warranty
1 year
In compliance with
ISO 7218 - ISO 6887
Delivered with: 1 distribution arm, 1 drip tray 400, 1 or 2 pumps, 1 distribution assembly (GL45 - Ø 6.4 mm) per pump, 1 USB cable, 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutor, 1 user's manual, 1 conformity certificate / warranty card, 10 GeckoGrip, 1 pack of adhesive putty, blender bags samples
DiluFlow 3 kg (single pump)
DiluFlow 3 kg (double pump)
Reference
501 103
501 203
BagOpen height < 30 cm
N
N
Removable drip tray (patented)
N
N
BagOpen with GeckoGrip system (patented)
N
N
Magnetic stand for BagOpen (patented shape)
N
N
LightCode: color status LED
N
N
Compatible with booster kit
N
N
304L stainless steel body
N
N
Stainless casting electromechanical core
N
N
Resolution up to 200 g
0.01 g
Weighing range
0.1 to 3000 g
Max weight without support
4500 g
Weighing accuracy
0 g to 100 g : ± 0.05 g / 100 g to 3000 g : ± 0.1%
Minimum weight required for dilution
5 g
Minimum weight required for distribution
5 g
Dilution factor
1/2 to 1/99
Dilution/distribution accuracy
> 99% in Standard or Accurate mode (in optimal conditions)
Dilution time for a 25g sample diluted to 1/10
< 9 s (with booster kit in Fast mode)
Distribution time for 90 mL
< 7 s (with booster kit in Fast mode)
Distribution time for 225 mL
< 10 s (with booster kit in Fast mode)
Max number of pumps
2 integrated
Dilution/distribution mode
Fast / Standard / Accurate
Traceability
Printer / Supervision software (export to ExcelTM / OpenOfficeTM , CSV file, printer)
Exported data
Sample weight / Total weight / Dilution factor / Dilution accuracy / Right or left pump + with supervision software: Sample number / Name of operator / Date / Time
Connection
RS232 output for printer / USB port for computer / Jack output for foot pedal connection
Net weight
10.1 kg
12.5 kg
Dimensions (w x d x h)
31.3 x 43.7 x 39.4 cm
37 x 43.7 x 39.4 cm
Box (w x d x h)
55 x 55 x 40.5 cm
Gross weight
16.1 kg
18.6 kg
Language
English
Voltage - Frequencies
100-240 V~ 50/60 Hz
Fuses
T3.15A L 250V 5x20 mm
Power
60 W
International protection marking
22
Warranty
1 year
In compliance with
ISO 7218 - ISO 6887
Delivered with: 1 distribution arm, 1 drip tray 400, 1 or 2 pumps, 1 distribution assembly (GL45 - Ø 6.4 mm) per pump, 1 USB cable, 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutor, 1 user's manual, 1 conformity certificate / warranty card, 10 GeckoGrip, 1 pack of adhesive putty, blender bags samples
Calibrated according to the G.L.P (Good Laboratory Practice)
Products made for INTERSCIENCE by Interlab, an ISO 9001 certified company.
Accessories
Accessories
Film for printer
Ref. 410 130
Printer
Ref. 410 150
2L bottle (GL45)
Ref. 413 002
BagOpen 400 for dilutors
Ref. 505 001
Weighing platform
Ref. 505 002
Tongs platform
Ref. 505 003
Adjustable distribution system
Ref. 505 004
GeckoGrip for BagOpen 400/3500
Ref. 505 009
Integrable stand for broth bags
Ref. 505 010
BagOpen 80/100 mL for dilutors
Ref. 505 014
GeckoGrip for BagOpen 80/100
Ref. 505 015
BagOpen 400 for dilutors (stainless steel)
Ref. 505 016
Foot pedal
Ref. 507 008
Booster kit
Ref. 511 000
5L bottle (GL45)
Ref. 513 001
Certified standard weight (500 g)
Ref. 513 005
Independent stand for broth bags
Ref. 513 015
Holder for dispensing assembly set with 0.2 µm filter
Ref. 513 053
Sticker for printer
Ref. 521 012
Paper for printer
Ref. 521 110
Film for printer
Ref. 410 130
Thermal transfer film
×
Printer
Ref. 410 150
Thermal printer (RS 232 and USB output)
×
2L bottle (GL45)
Ref. 413 002
Set of 3 GL45 glass bottle (2L), autoclavable
×
BagOpen 400 for dilutors
Ref. 505 001
Stand for 400 mL bags.
Box: 22x25x12 cm
Gross weight: 0,50 kg
Quantity: 1
×
Weighing platform
Ref. 505 002
To weigh and support a container. Non delivered with container.
Box: 25x15x10 cm
Gross weight: 0.25 kg
Quantity: 1
×
Tongs platform
Ref. 505 003
To hold a tube (ø 10 to 60 mm). Non delivered with tube.
×
Adjustable distribution system
Ref. 505 004
Ideal to fill various containers
×
GeckoGrip for BagOpen 400/3500
Ref. 505 009
Set of 10 adhesives for DiluFlow BagOpen 400 and 3500
×
Integrable stand for broth bags
Ref. 505 010
Integrated to the unit, to hold one broth bag
×
BagOpen 80/100 mL for dilutors
Ref. 505 014
Bag holder for 80/100 mL bags for DiluFlow
×
GeckoGrip for BagOpen 80/100
Ref. 505 015
Set of 10 adhesives for DiluFlow BagOpen 80/100
×
BagOpen 400 for dilutors (stainless steel)
Ref. 505 016
Stainless steel stand for 400 mL bags
×
Foot pedal
Ref. 507 008
For hands-free dispensing. Connection with a 3.5 mm Jack
×
Booster kit
Ref. 511 000
Booster pump + 2 silicone tubings for pump part (20 cm each), inner ø 6.4 mm + 2 “Y”
×
5L bottle (GL45)
Ref. 513 001
GL45 glass bottle (5L), autoclavable
×
Certified standard weight (500 g)
Ref. 513 005
500 g COFRAC calibrated weight, type F1
×
Independent stand for broth bags
Ref. 513 015
Independent stand for 2 broth bags
×
Holder for dispensing assembly set with 0.2 µm filter
Ref. 513 053
1 holder for dispensing assembly with 0.2 µm filter + 1 knurled head screw
Box dimensions: 13x11.5x8.5 cm
Gross weight: 0.105 kg
Quantity: 1
×
Sticker for printer
Ref. 521 012
Set of 2 rolls of 1000 stickers for thermal printer - Label size: 70 x 45 mm
Box dimensions: 20x10x10 cm
Gross weight: 1.00 kg
Quantity: 2x1000
×
Paper for printer
Ref. 521 110
Set of 2 thermal paper rolls for printer
Box dimensions: 25x10x10 cm
Gross weight: 1.50 kg
Quantity: 2
×
Tubings
Tubings
A dispensing assembly
B dispensing assembly for Booster Kit
C Tube weights D Trocar E PTFE filter F Autoclavable GL45 stopper
G Silicone tubings H Straight connectors I Y connectors J TygonTM tubings for pump
K TygonTM tubings for pump with filter 0.2 µm L Nozzles M Protection cap
L
Adjustable nozzles (L 23.5 cm - tubings Ø 3.2 mm)
Ref. 505 012
L
Adjustable nozzles (L 12 cm - tubings Ø 6.4 mm)
Ref. 505 013
M
Nozzle cap for trocar
Ref. 505 017
B
Booster kit dispensing assembly (GL45 - Ø 3.2 mm)
Ref. 513 008
G + J + I
Tubings + Y (Ø 3.2 mm)
Ref. 513 009
J
Tubings for pump (Ø 4.8 mm)
Ref. 513 011
D + G + H + J + L + M
Dispensing assembly for broth bags (Ø 4.8 mm)
Ref. 513 016
D
Trocar
Ref. 513 020
E
PTFE filters 0.2 µm (Ø 25 mm)
Ref. 513 023
L + M
Nozzles (tubings Ø 4.8 - 8 mm)
Ref. 513 024
C
Tube weights (Ø 6 mm)
Ref. 513 039
L + M
Nozzles (tubings Ø 1.6 - 3.2 mm)
Ref. 513 040
B
Booster kit dispensing assembly (GL45 - Ø 6.4 mm)
Ref. 513 041
G + J + I
Tubings + Y (Ø 6.4 mm)
Ref. 513 042
A
Dispensing assembly (GL45 - Ø 6.4 mm)
Ref. 513 043
G + J + H
Tubings (Ø 6.4 mm)
Ref. 513 044
A
Ensemble de distribution (GL45 - Ø 3,2 mm)
Ref. 513 045
G + J + H
Tubings (Ø 3.2 mm)
Ref. 513 047
M
Nozzle cap (Ø 1.6 - 3.2 mm)
Ref. 513 048
A
Dispensing assembly with 0.2 µm filter (GL45 - Ø 6.4 mm)
Ref. 513 050
B
Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm)
Ref. 513 051
K
Tubings for pump with filter 0.2 µm (Ø 6.4 mm)
Ref. 513 052
J
Tubings for pump (Ø 3.2 mm)
Ref. 561 302
J
Tubings for pump (Ø 6.4 mm)
Ref. 561 304
E + F
Autoclavable GL45 stopper + 0.2 µm filter
Ref. 561 401
H
Straight connectors (tubings Ø 6.4 - 8 mm)
Ref. 561 403
H
Straight connectors (tubings Ø 3.2 - 4.8 mm)
Ref. 561 404
I
Y connectors (tubings Ø 6.4 - 8 mm)
Ref. 562 401
I
Y connectors (tubings Ø 3.2 mm)
Ref. 562 402
L
Adjustable nozzles (L 23.5 cm - tubings Ø 3.2 mm)
Ref. 505 012
Set of 5 adjustable nozzles (Length: 23.5 cm - For inner Ø 3.2 mm tubings)
Box dimensions: 27x42 cm
Gross weight: 0.35 kg
Quantity: 5
×
L
Adjustable nozzles (L 12 cm - tubings Ø 6.4 mm)
Ref. 505 013
Set of 5 adjustable nozzles (Length: 12 cm - For inner Ø 6.4 mm tubings)
Box: 14x8 cm
Gross weight: 0.15 kg
Quantity: 5
×
M
Nozzle cap for trocar
Ref. 505 017
Set of 10 protection cap for trocar.
Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10
×
B
Booster kit dispensing assembly (GL45 - Ø 3.2 mm)
Ref. 513 008
Set of silicone tubings inner Ø 3.2 mm + GL45 screw cap + tube weight + nozzle + filter "Y"
Box: 39x27x15 cm
Gross weight: 0.70 kg
Quantity: 1
×
G + J + I
Tubings + Y (Ø 3.2 mm)
Ref. 513 009
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 3.2 mm
Box dimensions: 35x45 cm
Gross weight: 0.47 kg
Quantity: 5
×
J
Tubings for pump (Ø 4.8 mm)
Ref. 513 011
Set of 6 TygonTM tubings for pump part (20 cm). inner Ø 4.8 mm
Box: 26x21x11 cm
Gross weight: 0.06 kg
Quantity: 6
×
D + G + H + J + L + M
Dispensing assembly for broth bags (Ø 4.8 mm)
Ref. 513 016
Distribution assembly Ø 4.8 mm for broth bags
Box dimensions: 20x20 cm
Gross weight: 0.12 kg
Quantity: 1
×
D
Trocar
Ref. 513 020
Trocar for broth bags
Box: 12x10x8 cm
Gross weight: 0.03 kg
Quantity: 1
×
E
PTFE filters 0.2 µm (Ø 25 mm)
Ref. 513 023
Set of 5 autoclavable filters (0.2 µm) for GL45 bottle
Box: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 5
×
L + M
Nozzles (tubings Ø 4.8 - 8 mm)
Ref. 513 024
Set of 5 nozzles + caps for tubings from 4.8 to 8 mm inner diameter
Box: 15x15x6 cm
Gross weight: 0.10 kg
Quantity: 5
×
C
Tube weights (Ø 6 mm)
Ref. 513 039
Set of 5 tube weights - Ø 6 mm
Box: 8x12 cm
Gross weight: 0.30 kg
Quantity: 5
×
L + M
Nozzles (tubings Ø 1.6 - 3.2 mm)
Ref. 513 040
Set of 5 nozzles + caps for tubings from 1.6 to 3.2 mm inner diameter
Box: 8x12 cm
Gross weight: 0.07 kg
Quantity: 5
×
B
Booster kit dispensing assembly (GL45 - Ø 6.4 mm)
Ref. 513 041
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + filter + "Y"
Box dimensions: 23x35 cm
Gross weight: 0.24 kg
Quantity: 1
×
G + J + I
Tubings + Y (Ø 6.4 mm)
Ref. 513 042
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 6.4 mm
Box dimensions: 35x45 cm
Gross weight: 0.63 kg
Quantity: 5
×
A
Dispensing assembly (GL45 - Ø 6.4 mm)
Ref. 513 043
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + filter
Box dimensions: 23x35 cm
Gross weight: 0.22 kg
Quantity: 1
×
G + J + H
Tubings (Ø 6.4 mm)
Ref. 513 044
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + straight connectors) - inner Ø 6.4 mm
Box dimensions: 35x45 cm
Gross weight: 0.59 kg
Quantity: 5
×
A
Ensemble de distribution (GL45 - Ø 3,2 mm)
Ref. 513 045
Jeu de tuyaux en silicone Ø interne 3,2 mm + bouchon GL45 + crépine + embout + filtre
Dimensions de l’emballage : 23x35 cm
Poids brut : 0,20 kg
Quantité : 1
×
G + J + H
Tubings (Ø 3.2 mm)
Ref. 513 047
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + straight connectors) - inner Ø 3.2 mm
Box dimensions: 35x45 cm
Gross weight: 0.45 kg
Quantity: 5
×
M
Nozzle cap (Ø 1.6 - 3.2 mm)
Ref. 513 048
Set of 10 protection cap for nozzles. For tubings from 1.6 to 3.2 mm inner diameter.
Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10
×
A
Dispensing assembly with 0.2 µm filter (GL45 - Ø 6.4 mm)
Ref. 513 050
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + filter + tube weight + nozzle + 0.2 µm filter
Box dimensions: 22x36x10 cm
Gross weight: 0.25 kg
Quantity:1
×
B
Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm)
Ref. 513 051
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + filter + tube weight + nozzle + "Y" + 2 filters 0.2 µm
Box dimensions: 22x36x10 cm
Gross weight: 0.38 kg
Quantity:1
×
K
Tubings for pump with filter 0.2 µm (Ø 6.4 mm)
Ref. 513 052
Set of 2 TygonTM tubing for pump part (50 cm) + 2 filters 0.2 µm. inner Ø 6.4 mm
Box dimensions: 22x36x10 cm
Gross weight: 0.23 kg
Quantity: 2
×
J
Tubings for pump (Ø 3.2 mm)
Ref. 561 302
Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 3.2 mm
Box dimensions: 26x21.1x11 cm
Gross weight: 0.04 kg
Quantity: 6
×
J
Tubings for pump (Ø 6.4 mm)
Ref. 561 304
Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 6.4 mm
Box dimensions: 26x21.1x11 cm
Gross weight: 0.07 kg
Quantity: 6
×
E + F
Autoclavable GL45 stopper + 0.2 µm filter
Ref. 561 401
Autoclavable GL45 stopper + 0.2 µm filter
Box dimensions: 10x12 cm
Gross weight: 0.04 kg
Quantity: 1
×
H
Straight connectors (tubings Ø 6.4 - 8 mm)
Ref. 561 403
Set of 6 straight connectors for inner Ø 6.4 and 8 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.02 kg
Quantity: 6
×
H
Straight connectors (tubings Ø 3.2 - 4.8 mm)
Ref. 561 404
Set of 6 straight connectors for inner Ø 4.8 and 3.2 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.01 kg
Quantity: 6
×
I
Y connectors (tubings Ø 6.4 - 8 mm)
Ref. 562 401
Set of 6 "Y" connectors for Ø 6.4 and 8 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.02 kg
Quantity: 6
×
I
Y connectors (tubings Ø 3.2 mm)
Ref. 562 402
Set of 6 "Y" connectors for Ø 3.2 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.05 kg
Quantity: 6
×
Associated products
Associated products
Products marked with an asterisk are compatible with the DiluFlow after the purchase of an accessory:
* with Jumbo kit option - Ref 505 006
** with BagOpen 80/100 mL option - Ref 505 014
