DiluFlow Elite 1 kg

Gravimetric dilutor 1 kg

Designed for pharmaceutical and cosmetics

Ref. 503 101 (single pump)
Ref. 503 201 (double pump)

DiluFlow Elite 1 kg

Gravimetric dilutor 1 kg

Designed for pharmaceutical and cosmetics

Ref. 503 101 (single pump)
Ref. 503 201 (double pump)

Tongs platform - Ref 505 003

COSMETIC PACK
Tongs platform - ref. 505 003
Adjustable distribution system - ref. 505 005
Dispensing assembly (GL45 - Ø 3,2 mm) - ref. 513 045

The DiluFlow Elite automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 1000 g. It offers the best solution to prepare your samples in the pharmaceutical and cosmetic industries, as well as animal health. Its full traceability enables the recording of all operations.

  • Weighing accuracy: ± 0.01 g from 0 to 20 g
  • Dilution factor: 1/2 to 1/1000, customizable fractions
  • Dilution accuracy: > 99%*
  • Max weight: 1000 g
  • Max number of pumps: 2 integrated + 4 external
  • Bi-directional Web Service connection

* in Standard or Accurate mode (in optimal conditions)

Presentation

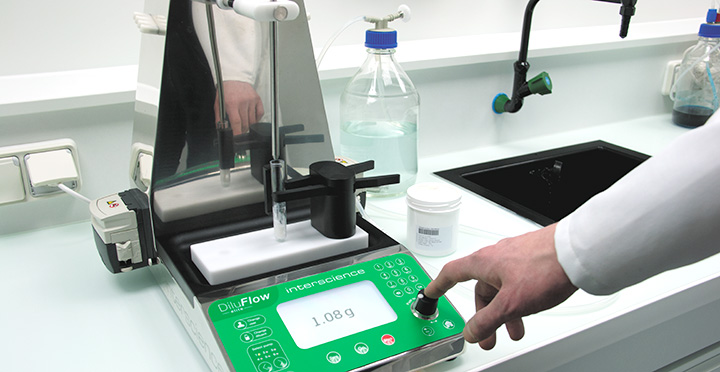

DiluFlow Elite 1 kg - Cosmetics and pharmaceuticals

For pharmaceutical and cosmetics industries

The DiluFlow Elite 1 kg is adapted to small volumes, as required in pharmaceutical and cosmetics industries. Its flexibility enables the preparation of the samples in tubes, pots...

High accuracy

The DiluFlow Elite 1 kg allows an accurate dilution of all sample types from 1 to 20 g (at 1/10th) with an accuracy of > 99%.

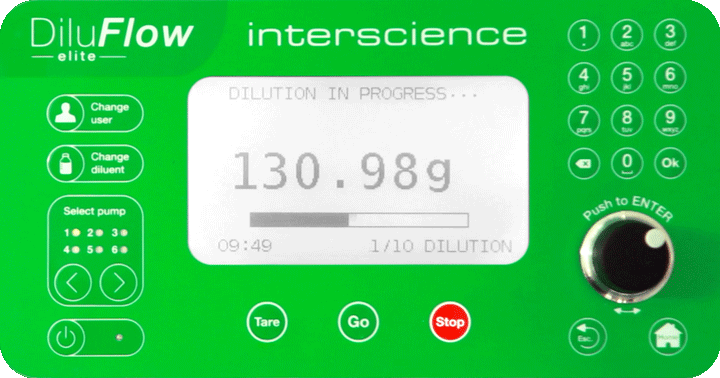

DiluFlow - Keyboard

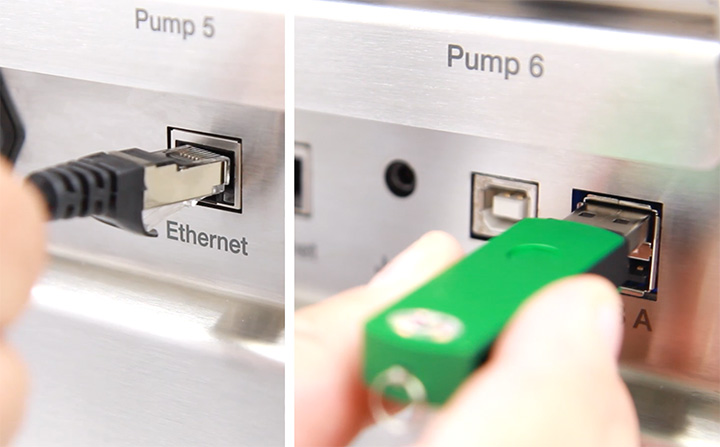

DiluFlow - Connectivity and traceability

Connectivity and full traceability

DiluFlow Elite is programmable via 24 customizable programs. Traceability is ensured by a bidirectional Ethernet connection to the LIMS. DiluFlow Elite exports analysis data to printer, USB stick, ExcelTM, Open OfficeTM, CSV and LIMS (CSV file sharing or Web Service).

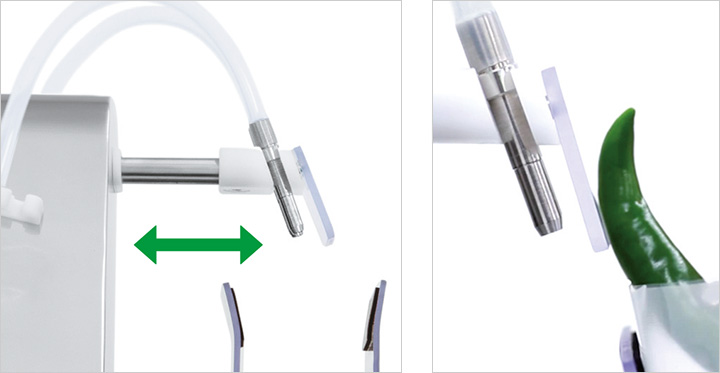

DiluFlow - Robotic arm

Robotic arm and protective plate

The robotic arm enables you to place the sample safely in the bag without risk of cross contamination. Tested for over 1.3 million cycles, its reliability is guaranteed. The protective plate protects the beaker from contact with the sample.

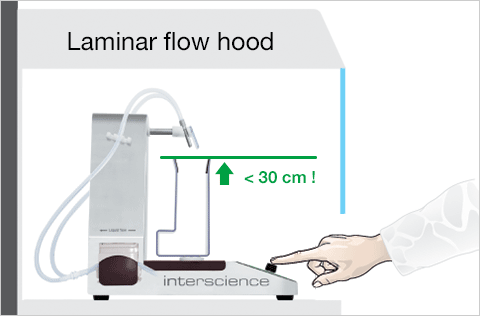

DiluFlow Hotte EN

Ultra-low profile

Widest possible opening for the bag and lowest loading threshold on the market! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.


DiluFlow - Removable recovery box

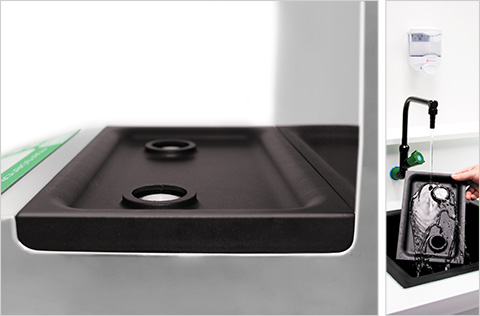

Removable drip tray

In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED

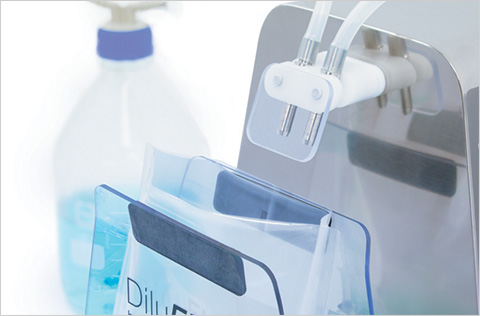

DiluFlow - GeckoGrip system

GeckoGrip holding system

This patented system replaces adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED

LightCode

LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.


DiluFlow green Lightcode

Green
Accuracy > 98%


DiluFlow orange Lightcode

Orange
Accuracy > 95%


DiluFlow red Lightcode

Red
Accuracy < 95%


DiluFlow blue Lightcode

Blue
Scale stabilizing


DiluFlow - auto tare mode

Autotare Function

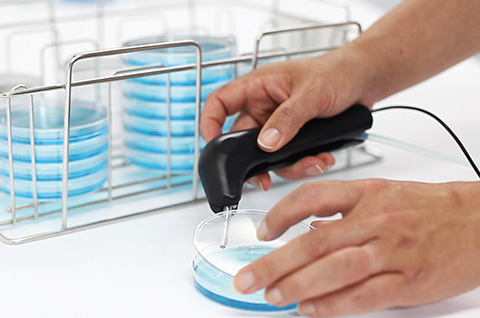

FlexiPump - Handy Gun

Multi-distribution mode

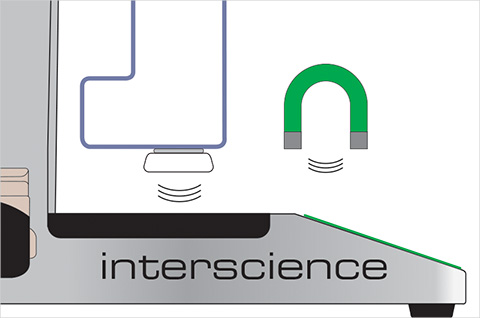

DiluFlow - BagOpen magnetized

Magnetic BagOpen

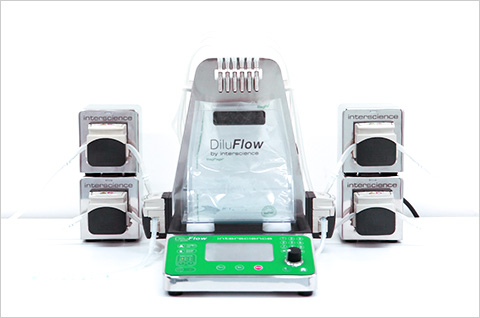

DiluFlow - diluents

Up to 6 diluents
New

Pure water, instantly, with Steriwater

Steriwater is an instant solution for the production of sterile water in the laboratory. This solution simplifies sample dilution with sterile water using a DiluFlow gravimetric dilutor and instaBAG dehydrated media bags. Set-up is quick and easy.

<!—>

Applications

DiluFlow Elite 1 kg gravimetric dilutor is used for the preparation of pharmaceutical and cosmetic samples for microbiological analysis. It is used for the preparation of 1 to 20 g sample diluted to 1/10th. With the DiluFlow Elite 1 kg, the samples to be analyzed can be prepared in a tube
or jar. Eg: active ingredients, cream, make-up...


Pharmaceutical


Cosmetic


Veterinary


Public research

Videos

Videos

From sample preparation to bacterial analyses - Overview

Download the video

From sampling to bacterial counting - Overview

Download the video

BagSystem - Increase your sample preparation

Download the video

DiluFlow - Gravimetric dilutors: Overview of the range

Download the video

DiluFlow Elite 1kg - Gravimetric dilutor: Cosmetic Pack

Download the video

Unboxing - Gravimetric dilutors: DiluFlow Pro model

Download the video

Steriwater - instant water sterilization solution: Overview

Download the video

Resources

Resources

Title
Language
Type
Size
Download
PDF
8.6 Mb
Language: English
DiluFlow range brochure
PDF
1.1 Mb
Language: English
Tubings guide
PDF
432.8 kb
Language: English
Technical file DiluFlow Elite 1 kg
PDF
100 kb
Language: English
EC Certificate
PDF
102.7 kb
Language: English
UKCA Certificate
PDF
557.3 kb
Language: English, french
ISO 9001 Certificate
PDF
46.9 Mb
Language: English
English catalog
Z
Zip
1.2 Mb
DiluFlow range photo
Z
Zip
1.2 Mb
DiluFlow Elite 1 kg photo
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Z
Zip
322.6 kb
410 130 - Film for printer photo
Z
Zip
725.8 kb
410 150 - Printer photo
Z
Zip
1.9 Mb
413 002 - 2L bottle (GL45) photo
Z
Zip
1 Mb
505 001 - BagOpen 400 for dilutors photo
Z
Zip
503.1 kb
505 002 - Weighing platform photo
Z
Zip
608.6 kb
505 003 - Tongs platform photo
Z
Zip
617.7 kb
505 005 - Adjustable distribution system Diluflow Pro / Elite photo
Z
Zip
660 kb
505 007 - Pump module photo
Z
Zip
1 Mb
505 008 - 6 nozzles holder photo
Z
Zip
435.4 kb
505 009 - GeckoGrip for BagOpen 400/3500 photo
Z
Zip
1.1 Mb
505 010 - Integrable stand for broth bags photo
Z
Zip
1.2 Mb
505 014 - BagOpen 80-100 mL for dilutors photo
Z
Zip
272.4 kb
505 015 - GeckoGrip for BagOpen 80-100 photo
Z
Zip
1.4 Mb
505 016 - BagOpen 400 for dilutors (stainless steel) photo
Z
Zip
1.8 Mb
507 008 - Foot pedal photo
Z
Zip
977 kb
511 000 - Booster kit photo
Z
Zip
292.8 kb
513 001 - 5L bottle (GL45) photo
Z
Zip
171.2 kb
513 005 - Certified standard weight (500 g) photo
Z
Zip
862.1 kb
513 015 - Independent stand for 2 broth bags photo
Z
Zip
273.8 kb
513 053 - Holder for dispensing assembly set with 0.2 µm filter photo
Z
Zip
295 kb
521 012 - Sticker for printer photo
Z
Zip
2 Mb
521 110 - Paper for print photo
Z
Zip
499 kb
522 000 - Bar-code reader photo
Z
Zip
1 Mb
561 001 - Handy Gun - Gun photo
Z
Zip
1.7 Mb
561 001 - Handy Gun photo
Z
Zip
324.5 kb
561 001 - Handy Gun - Mouse photo
Z
Zip
980.3 kb
561 001 - Handy Gun - Pen photo
Title
Language
Type
Size
Download
Z
Zip
285.3 kb
505 012 - Adjustable nozzles (L 23.5 cm - tubings Ø 3.2 mm) photo
Z
Zip
202.3 kb
505 017 - Nozzle cap for trocar photo
Z
Zip
331.1 kb
513 008 - Booster kit dispensing assembly (GL45 - Ø 3.2 mm) photo
Z
Zip
191.5 kb
513 009 - Tubings + Y (Ø 3.2 mm) photo
Z
Zip
1.4 Mb
513 020 - Trocar for broth bags photo
Z
Zip
745.4 kb
513 023 - PTFE filters 0.2 µL Ø 25 mm photo
Z
Zip
253.1 kb
513 024 - Nozzle for tubings 4.8 to 8 mm photo
Z
Zip
184.8 kb
513 039 - Tube weights ø 6 mm photo
Z
Zip
246 kb
513 040 - Nozzles tubings (Ø 1.6 - 3.2 mm) photo
Z
Zip
366.8 kb
513 041 - Booster kit dispensing assembly (GL45 - Ø 6.4 mm) photo
Z
Zip
293.2 kb
513 042 - Tubings + Y (Ø 6.4 mm) photo
Z
Zip
320.6 kb
513 043 - Dispensing assembly (GL45 - Ø 6.4 mm) photo
Z
Zip
249.4 kb
513 044 - Tubings (Ø 6.4 mm) photo
Z
Zip
109.5 kb
513 045 - Dispensing assembly (GL45 - Ø 3.2 mm) photo
Z
Zip
205 kb
513 048 - Nozzle cap (Ø 1.6 - 3.2 mm) photo
Z
Zip
183.8 kb
513 047 - Tubings (Ø 3.2 mm) photo
Z
Zip
246 kb
513 050 - Dispensing assembly with 0.2 µm filter (GL45 - Ø 6.4 mm) photo
Z
Zip
377.6 kb
513 051 - Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm) photo
Z
Zip
273.5 kb
513 052 - Tubings for pump with filter 0.2 µm (Ø 6.4 mm) photo
Z
Zip
196.5 kb
561 302 - Tubings for pump (Ø 3.2 mm) photo
Z
Zip
195.2 kb
561 304 - Tubings for pump (Ø 6.4 mm) photo
Z
Zip
388.1 kb
561 401 - Autoclavable GL45 stopper + 0.2 μm filter photo
Z
Zip
252.8 kb
561 403 - Straight connectors (tubings Ø 3.2 - 4.8 mm) photo
Z
Zip
198.9 kb
561 404 - Straight connectors (tubings Ø 3.2 - 4.8 mm) photo
Z
Zip
194.8 kb
562 401 - Y connectors (tubings Ø 6.4 - 8 mm) photo
Z
Zip
7.3 Mb
562 402 - Y connectors (tubings Ø 3.2 mm) photo

Specifications

Specifications

DiluFlow Elite 1 kg (single pump)
Reference 503 101
OVERVIEW
304L stainless steel body N
BagOpen height < 30 cm N
Removable drip tray (Patented) N
BagOpen with GeckoGrip system (Patented) N
Magnetic stand for BagOpen (Patented shape) N
LightCode: color status LED N
Compatible with Booster Kit N
Stainless casting electromechanical core N
Robotic arm N
Protection for dispensing nozzle N
Up to 6 pumps N
Multi-dispensing mode (patented) N
Powder mode N
Weighing mode N
Auto-tare function N
24 editable programs N
Bidirectional connectivity N
1 g dilution to 1/10 N
SPECIFICATIONS
Resolution up to 200 g 0.01 g
Weighing range 0.1 to 1000 g
Max weight without support 1500 g
Weighing accuracy 0 g to 20 g : ± 0.01 g / 20 g to 1000 g : ± 0.1%
Dilution factor 1/2 to 1/1000, customizable fractions
Minimum weight required for dilution 0.5 g (with a recommended dilution factor of 10)
Minimum weight required for distribution 5 g
Dilution/distribution accuracy > 99% in Standard or Accurate mode (in optimal conditions)
Dilution time for a 25g sample diluted to 1/10 < 8 s (with booster kit in Fast mode)
Distribution time for 90 mL < 6 s (with Booster Kit in Fast mode)
Distribution time for 225 mL < 9 s (with Booster Kit in Fast mode)
Max number of pumps 2 integrated + 4 external
Dilution/distribution mode Fast - Standard - Accurate
Language English, French
Voltage - Frequencies 100-240 V~ 50/60 Hz
Fuses T 3.15A L 250 V 5x20 mm
Power max. 60 W
Warranty 1 year
International protection marking IP32
Spare parts availability 10 years
In compliance with ISO 7218 - ISO 6887
TRACEABILITY
Traceability Printer / Export to ExcelTM file / CSV file Export on USB key / Bi-directional connection to LIMS
Type of LIMS connection File sharing, web service
Exported data Sample weight / Total weight / Dilution factor / Dilution accuracy / Diluent / Sample number / Diluent lot number / Date / Time / Last calibration date / Name of operator / Name of program
Connection 2 USB ports (type A) to connect a printer, keyboard, bar-code reader, USB key / 1 USB port (type B) to connect a computer / Jack socket to connect a foot pedal / Handy gun / Ethernet connection for LIMS
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): DiluFlow 31.3 x 42.1 x 37.7 cm
Dimensions (w x d x h): DiluFlow + Booster Kit (Ref. 511 000) 36.8 x 42.1 x 37.7 cm (1 Booster Kit)
Dimensions (w x d x h): DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) 47.1 x 42.9 x 54.1 cm
Net weight: DiluFlow 12.90 kg
Net weight: DiluFlow + Booster Kit (Ref. 511 000) 13.20 kg (1 Booster Kit)
Net weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) 14 kg
Box (w x d x h): DiluFlow 55 x 55 x 53 cm
Gross weight: DiluFlow 18.80 kg
Gross weight: DiluFlow + Booster Kit (Ref. 511 000) 19.10 kg (1 Booster Kit)
Gross weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) 20.80 kg
DELIVERED WITH
1 drip tray 400, 1 or 2 pumps, 1 protection for dispensing nozzles, 1 dispensing assembly (GL45 - Ø 3.2 mm) per pump, 1 USB stick, 1 USB cable, 1 USB A Male / A Female extension cable, 1 power cord, 1 BagOpen 400 for dilutors, 1 user Manual, 1 set of 10 GeckoGrip, 1 set of adhesive gum, 1 Allen wrench, blender bags samples, 1 conformity certificate / warranty card.
DiluFlow Elite 1 kg (double pump)
Reference 503 201
OVERVIEW
304L stainless steel body N
BagOpen height < 30 cm N
Removable drip tray (Patented) N
BagOpen with GeckoGrip system (Patented) N
Magnetic stand for BagOpen (Patented shape) N
LightCode: color status LED N
Compatible with Booster Kit N
Stainless casting electromechanical core N
Robotic arm N
Protection for dispensing nozzle N
Up to 6 pumps N
Multi-dispensing mode (patented) N
Powder mode N
Weighing mode N
Auto-tare function N
24 editable programs N
Bidirectional connectivity N
1 g dilution to 1/10 N
SPECIFICATIONS
Resolution up to 200 g 0.01 g
Weighing range 0.1 to 1000 g
Max weight without support 1500 g
Weighing accuracy 0 g to 20 g : ± 0.01 g / 20 g to 1000 g : ± 0.1%
Dilution factor 1/2 to 1/1000, customizable fractions
Minimum weight required for dilution 0.5 g (with a recommended dilution factor of 10)
Minimum weight required for distribution 5 g
Dilution/distribution accuracy > 99% in Standard or Accurate mode (in optimal conditions)
Dilution time for a 25g sample diluted to 1/10 < 8 s (with Booster Kit in Fast mode)
Distribution time for 90 mL < 6 s (with Booster Kit in Fast mode)
Distribution time for 225 mL < 9 s (with Booster Kit in Fast mode)
Max number of pumps 2 integrated + 4 external
Dilution/distribution mode Fast - Standard - Accurate
Language English, French
Voltage - Frequencies 100-240 V~ 50/60 Hz
Fuses T 3.15A L 250 V 5x20 mm
Power max. 60 W
Warranty 1 year
International protection marking IP32
Spare parts availability 10 years
In compliance with ISO 7218 - ISO 6887
TRACEABILITY
Traceability Printer / Export to ExcelTM file / CSV file Export on USB key / Bi-directional connection to LIMS
Type of LIMS connection File sharing, web service
Exported data Sample weight / Total weight / Dilution factor / Dilution accuracy / Diluent / Sample number / Diluent lot number / Date / Time / Last calibration date / Name of operator / Name of program
Connection 2 USB ports (type A) to connect a printer, keyboard, bar-code reader, USB key / 1 USB port (type B) to connect a computer / Jack socket to connect a foot pedal / Handy gun / Ethernet connection for LIMS
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): DiluFlow 37 x 42.1 x 37.7 cm
Dimensions (w x d x h): DiluFlow + Booster Kit (Ref. 511 000) 48.7 x 42.1 x 37.7 cm (2 Booster Kits)
Dimensions (w x d x h): DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) 47.1 x 42.9 x 54.1 cm
Net weight: DiluFlow 15.20 kg
Net weight: DiluFlow + Booster Kit (Ref. 511 000) 15.80 kg (2 Booster Kits)
Net weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) 16.30 kg
Box (w x d x h): DiluFlow 55 x 55 x 53 cm
Gross weight: DiluFlow 21.90 kg
Gross weight: DiluFlow + Booster Kit (Ref. 511 000) 22.20 kg (2 Booster Kits)
Gross weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) 23.90 kg
DELIVERED WITH
1 drip tray 400, 1 or 2 pumps, 1 protection for dispensing nozzles, 1 dispensing assembly (GL45 - Ø 3.2 mm) per pump, 1 USB stick, 1 USB cable, 1 USB A Male / A Female extension cable, 1 power cord, 1 BagOpen 400 for dilutors, 1 user Manual, 1 set of 10 GeckoGrip, 1 set of adhesive gum, 1 Allen wrench, blender bags samples, 1 conformity certificate / warranty card.
DiluFlow Elite 1 kg (single pump) DiluFlow Elite 1 kg (double pump)
Reference 503 101 503 201
OVERVIEW
304L stainless steel body N N
BagOpen height < 30 cm N N
Removable drip tray (Patented) N N
BagOpen with GeckoGrip system (Patented) N N
Magnetic stand for BagOpen (Patented shape) N N
LightCode: color status LED N N
Compatible with Booster Kit N N
Stainless casting electromechanical core N N
Robotic arm N N
Protection for dispensing nozzle N N
Up to 6 pumps N N
Multi-dispensing mode (patented) N N
Powder mode N N
Weighing mode N N
Auto-tare function N N
24 editable programs N N
Bidirectional connectivity N N
1 g dilution to 1/10 N N
SPECIFICATIONS
Resolution up to 200 g 0.01 g
Weighing range 0.1 to 1000 g
Max weight without support 1500 g
Weighing accuracy 0 g to 20 g : ± 0.01 g / 20 g to 1000 g : ± 0.1%
Dilution factor 1/2 to 1/1000, customizable fractions
Minimum weight required for dilution 0.5 g (with a recommended dilution factor of 10)
Minimum weight required for distribution 5 g
Dilution/distribution accuracy > 99% in Standard or Accurate mode (in optimal conditions)
Dilution time for a 25g sample diluted to 1/10 < 8 s (with booster kit in Fast mode)
Distribution time for 90 mL < 6 s (with Booster Kit in Fast mode)
Distribution time for 225 mL < 9 s (with Booster Kit in Fast mode)
Max number of pumps 2 integrated + 4 external
Dilution/distribution mode Fast - Standard - Accurate
Language English, French
Voltage - Frequencies 100-240 V~ 50/60 Hz
Fuses T 3.15A L 250 V 5x20 mm
Power max. 60 W
Warranty 1 year
International protection marking IP32
Spare parts availability 10 years
In compliance with ISO 7218 - ISO 6887
TRACEABILITY
Traceability Printer / Export to ExcelTM file / CSV file Export on USB key / Bi-directional connection to LIMS
Type of LIMS connection File sharing, web service
Exported data Sample weight / Total weight / Dilution factor / Dilution accuracy / Diluent / Sample number / Diluent lot number / Date / Time / Last calibration date / Name of operator / Name of program
Connection 2 USB ports (type A) to connect a printer, keyboard, bar-code reader, USB key / 1 USB port (type B) to connect a computer / Jack socket to connect a foot pedal / Handy gun / Ethernet connection for LIMS
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): DiluFlow 31.3 x 42.1 x 37.7 cm 37 x 42.1 x 37.7 cm
Dimensions (w x d x h): DiluFlow + Booster Kit (Ref. 511 000) 36.8 x 42.1 x 37.7 cm (1 Booster Kit) 48.7 x 42.1 x 37.7 cm (2 Booster Kits)
Dimensions (w x d x h): DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) 47.1 x 42.9 x 54.1 cm 47.1 x 42.9 x 54.1 cm
Net weight: DiluFlow 12.90 kg 15.20 kg
Net weight: DiluFlow + Booster Kit (Ref. 511 000) 13.20 kg (1 Booster Kit) 15.80 kg (2 Booster Kits)
Net weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) 14 kg 16.30 kg
Box (w x d x h): DiluFlow 55 x 55 x 53 cm 55 x 55 x 53 cm
Gross weight: DiluFlow 18.80 kg 21.90 kg
Gross weight: DiluFlow + Booster Kit (Ref. 511 000) 19.10 kg (1 Booster Kit) 22.20 kg (2 Booster Kits)
Gross weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010) 20.80 kg 23.90 kg
DELIVERED WITH
1 drip tray 400, 1 or 2 pumps, 1 protection for dispensing nozzles, 1 dispensing assembly (GL45 - Ø 3.2 mm) per pump, 1 USB stick, 1 USB cable, 1 USB A Male / A Female extension cable, 1 power cord, 1 BagOpen 400 for dilutors, 1 user Manual, 1 set of 10 GeckoGrip, 1 set of adhesive gum, 1 Allen wrench, blender bags samples, 1 conformity certificate / warranty card.

GLP-Compliant use (Good Laboratory Practice)

Products made for Interscience by Interlab, an ISO 9001 certified company.

Accessories

Accessories

Film for printer

Ref. 410 130

Thermal transfer film for dataLink printer

Box dimensions: 12x10x8 cm
Gross weight: 0.08 kg
Quantity: 1

Printer

Ref. 410 150

Thermal printer (RS 232 and USB output). Delivered with 1 thermal transfer film + power cable + USB cable

Box dimensions: 37x35x25 cm
Gross weight: 3.50 kg
Quantity: 1

2L bottle (GL45)

Ref. 413 002

Set of 3 GL45 glass bottle (2L), autoclavable

Box: 37x37x37 cm
Gross weight: 4.10 kg
Quantity: 3

BagOpen 400 for dilutors

Ref. 505 001

Stand for 400 mL bags.
Box: 22x25x12 cm
Gross weight: 0,50 kg
Quantity: 1

Weighing platform

Ref. 505 002

To weigh and support a container. Non delivered with container.
Box: 25x15x10 cm
Gross weight: 0.25 kg
Quantity: 1

Tongs platform

Ref. 505 003

To hold a tube (ø 10 to 60 mm). Non delivered with tube.

Adjustable distribution system

Ref. 505 005

Ideal to fill various containers

Pump module

Ref. 505 007

External module with single pump + 513 043: Dispensing assembly (GL45 - Ø 6.4 mm)

Box: 23x31x27 cm
Gross weight: 5 kg
Quantity: 1

6 nozzles holder

Ref. 505 008

Can hold up to 6 nozzles

GeckoGrip for BagOpen 400/3500

Ref. 505 009

Set of 10 adhesives for DiluFlow BagOpen 400 and 3500

Integrable stand for broth bags

Ref. 505 010

Integrated to the unit, to hold one broth bag. Delivered with 4 screws + Torx screwdriver

BagOpen 80/100 mL for dilutors

Ref. 505 014

Bag holder for 80/100 mL bags for DiluFlow

GeckoGrip for BagOpen 80/100

Ref. 505 015

Set of 10 adhesives for DiluFlow BagOpen 80/100

BagOpen 400 for dilutors (stainless steel)

Ref. 505 016

Stainless steel stand for 400 mL bags

Foot pedal

Ref. 507 008

For hands-free dispensing. Connection with a 3.5 mm Jack

Box: 15x10x10 cm
Gross weight: 0.15 kg
Quantity: 1

Kit Booster

Ref. 511 000

Bomba booster + 2 mangueras de silicona para bomba(20 cm cada uno), ø interno 6.4 mm + 2 “Y”

5L bottle (GL45)

Ref. 513 001

GL45 glass bottle (5L), autoclavable

Box: 37x35x25 cm
Gross weight: 1.70 kg
Quantity: 1

Certified standard weight (500 g)

Ref. 513 005

500 g COFRAC calibrated weight, type F1

Independent stand for broth bags

Ref. 513 015

Independent stand for 2 broth bags

Box: 59x37x29 cm
Gross weight: 1.90 kg
Quantity: 1

Holder for dispensing assembly set with 0.2 µm filter

Ref. 513 053

1 holder for dispensing assembly with 0.2 µm filter + 1 knurled head screw

Box dimensions: 13x11.5x8.5 cm
Gross weight: 0.105 kg
Quantity: 1

Sticker for printer

Ref. 521 012

Set of 2 rolls of 1000 stickers for thermal printer - Label size: 70 x 45 mm

Box dimensions: 20x10x10 cm
Gross weight: 1.00 kg
Quantity: 2x1000

Paper for printer

Ref. 521 110

Set of 2 thermal paper rolls for printer

Box dimensions: 25x10x10 cm
Gross weight: 1.50 kg
Quantity: 2

Bar-code reader

Ref. 522 000

Bar-code reader (1D)

Box dimensions: 26x16.5x11 cm
Gross weight: 0.66 kg
Quantity: 1

Handy Gun

Ref. 561 001

Dispensing control with handy gun including electronic start button

Box dimensions: 15x15x5 cm
Gross weight: 0.12 kg
Quantity: 1

Tubings

Tubings

A dispensing assembly

Dispensing assembly

B dispensing assembly for Booster Kit

Dispensing assembly for Booster Kit / FlexiPump Pro

  • C Tube weights
  • D Trocar
  • E PTFE filter
  • F Autoclavable GL45 stopper
  • G Silicone tubings
  • H Straight connectors
  • I Y connectors
  • J TygonTM tubings for pump
  • K TygonTM tubings for pump with filter 0.2 µm
  • L Nozzles
  • M Protection cap

L

Adjustable nozzles
(L 23.5 cm - tubings Ø 3.2 mm)

Ref. 505 012

Set of 5 adjustable nozzles (Length: 23.5 cm - For inner Ø 3.2 mm tubings)

Box dimensions: 27x42 cm
Gross weight: 0.35 kg
Quantity: 5

M

Nozzle cap for trocar

Ref. 505 017

Set of 10 nozzle caps for trocar

Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10

B

Booster kit dispensing assembly
(GL45 - Ø 3.2 mm)

Ref. 513 008

Set of silicone tubings inner Ø 3.2 mm + GL45 screw cap + tube weight + nozzle + filter "Y"

Box: 39x27x15 cm
Gross weight: 0.70 kg
Quantity: 1

G + J + I

Tubings + Y
(Ø 3.2 mm)

Ref. 513 009

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 3.2 mm

Box dimensions: 35x45 cm
Gross weight: 0.47 kg
Quantity: 5

D

Trocar

Ref. 513 020

Trocar for broth bags

Box: 12x10x8 cm
Gross weight: 0.03 kg
Quantity: 1

E

PTFE filters 0.2 µm
(Ø 25 mm)

Ref. 513 023

Set of 5 autoclavable filters (0.2 µm) for GL45 bottle

Box: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 5

L + M

Nozzles
(tubings Ø 4.8 - 8 mm)

Ref. 513 024

Set of 5 nozzles + caps for tubings from 4.8 to 8 mm inner diameter

Box: 15x15x6 cm
Gross weight: 0.10 kg
Quantity: 5

C

Tube weights
(Ø 6 mm)

Ref. 513 039

Set of 5 tube weights - Ø 6 mm

Box: 8x12 cm
Gross weight: 0.30 kg
Quantity: 5

L + M

Nozzles (tubings Ø 1.6 - 3.2 mm)

Ref. 513 040

Set of 5 nozzles + caps for tubings from 1.6 to 3.2 mm inner diameter

Box: 8x12 cm
Gross weight: 0.07 kg
Quantity: 5

B

Booster kit dispensing assembly (GL45 - Ø 6.4 mm)

Ref. 513 041

Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + filter + "Y"

Box dimensions: 23x35 cm
Gross weight: 0.24 kg
Quantity: 1

G + J + I

Tubings + Y
(Ø 6.4 mm)

Ref. 513 042

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 6.4 mm

Box dimensions: 35x45 cm
Gross weight: 0.63 kg
Quantity: 5

A

Dispensing assembly
(GL45 - Ø 6.4 mm)

Ref. 513 043

Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + filter

Box dimensions: 23x35 cm
Gross weight: 0.22 kg
Quantity: 1

G + J + H

Tubings
(Ø 6.4 mm)

Ref. 513 044

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + straight connectors) - inner Ø 6.4 mm

Box dimensions: 35x45 cm
Gross weight: 0.59 kg
Quantity: 5

A

Dispensing assembly
(GL45 - Ø 3.2 mm)

Ref. 513 045

Set of silicone tubings inner Ø 3.2 mm + GL45 screw cap + tube weight + nozzle + filter

Box dimensions: 23x35 cm
Gross weight: 0.20 kg
Quantity: 1

G + J + H

Tubings
(Ø 3.2 mm)

Ref. 513 047

Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + straight connectors) - inner Ø 3.2 mm

Box dimensions: 35x45 cm
Gross weight: 0.45 kg
Quantity: 5

M

Nozzle cap
(Ø 1.6 - 3.2 mm)

Ref. 513 048

Set of 10 protection cap for nozzles. For tubings from 1.6 to 3.2 mm inner diameter.

Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10

A

Dispensing assembly with 0.2 µm filter (GL45 - Ø 6.4 mm)

Ref. 513 050

Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + filter + tube weight + nozzle + 0.2 µm filter

Box dimensions: 22x36x10 cm
Gross weight: 0.25 kg
Quantity:1

B

Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm)

Ref. 513 051

Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + filter + tube weight + nozzle + "Y" + 2 filters 0.2 µm

Box dimensions: 22x36x10 cm
Gross weight: 0.38 kg
Quantity:1

K

Tubings for pump with filter 0.2 µm (Ø 6.4 mm)

Ref. 513 052

Set of 2 TygonTM tubing for pump part (50 cm) + 2 filters 0.2 µm. inner Ø 6.4 mm

Box dimensions: 22x36x10 cm
Gross weight: 0.23 kg
Quantity: 2

J

Tubings for pump
(Ø 3.2 mm)

Ref. 561 302

Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 3.2 mm

Box dimensions: 26x21.1x11 cm
Gross weight: 0.04 kg
Quantity: 6

J

Tubings for pump
(Ø 6.4 mm)

Ref. 561 304

Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 6.4 mm

Box dimensions: 26x21.1x11 cm
Gross weight: 0.07 kg
Quantity: 6

E + F

Autoclavable GL45 stopper + 0.2 µm filter

Ref. 561 401

Autoclavable GL45 stopper + 0.2 µm filter

Box dimensions: 10x12 cm
Gross weight: 0.04 kg
Quantity: 1

H

Straight connectors (tubings Ø 6.4 - 8 mm)

Ref. 561 403

Set of 6 straight connectors for inner Ø 6.4 and 8 mm tubings

Box dimensions: 12x8 cm
Gross weight: 0.02 kg
Quantity: 6

H

Straight connectors (tubings Ø 3.2 - 4.8 mm)

Ref. 561 404

Set of 6 straight connectors for inner Ø 4.8 and 3.2 mm tubings

Box dimensions: 12x8 cm
Gross weight: 0.01 kg
Quantity: 6

I

Y connectors
(tubings Ø 6.4 - 8 mm)

Ref. 562 401

Set of 6 "Y" connectors for Ø 6.4 and 8 mm tubings

Box dimensions: 12x8 cm
Gross weight: 0.02 kg
Quantity: 6

I

Y connectors
(tubings Ø 3.2 mm)

Ref. 562 402

Set of 6 "Y" connectors for Ø 3.2 mm tubings

Box dimensions: 12x8 cm
Gross weight: 0.05 kg
Quantity: 6

Associated products

Associated products

Les produits marqués d’un astérisque sont compatibles avec DiluFlow Elite 1 kg sous réserve de l’achat d’un accessoire :

*   avec option Kit Jumbo - Réf. 505 006
**  avec option BagOpen 80/100 mL - Réf. 505 014
