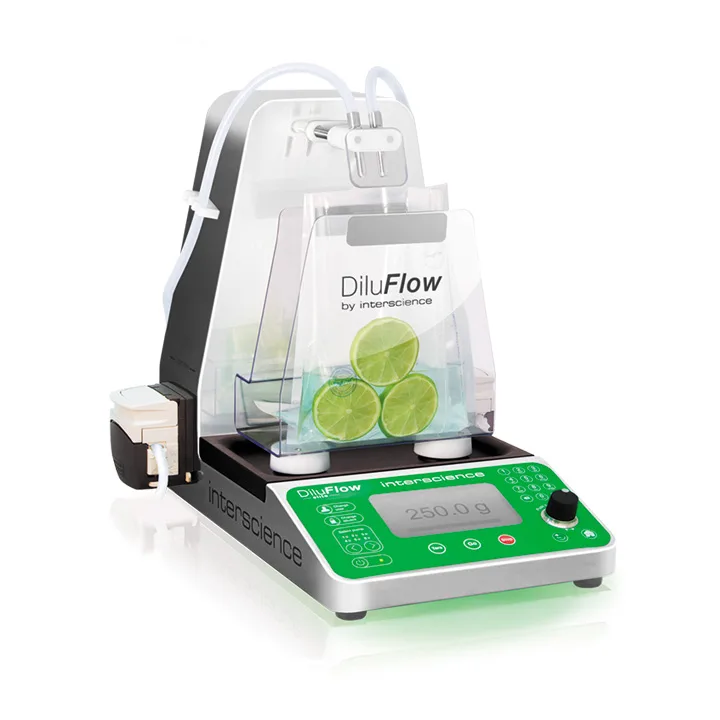

DiluFlow Elite 5 kg
Gravimetric dilutor 5 kg
Ref 503 105 (single pump)
Ref 503 205 (double pump)
The DiluFlow Elite automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 5 kg. Its full traceability enables the recording of all operations. It is programmable and connectable for up to 6 diluents and offers the best solution to dilute any type of sample.
- 225 mL in 8 seconds
- Dilution factor: 1/2 to 1/1000, customizable fractions
- Dilution accuracy: > 99 %*
- Max weight: 5000 g
- Max number of pumps: 2 integrated + 4 external
* in Standard or Accurate mode (in optimal conditions)
High accuracy
The DiluFlow Elite enables an accurate dilution of all types of samples from 10 to 375 g (at 1/10th) with an accuracy > 99% . The unit is in conformity with ISO 7218 and ISO 6887 standards.
Robotic arm and protective plate
The robotic arm enables you to place the sample safely in the bag without risk of cross contamination. Tested for over 1.3 million cycles, its reliability is guaranteed. The protective plate protects the beaker from contact with the sample.
Connectivity and full traceability
The DiluFlow Elite is programmable through its 24 customizable programs. Traceability is ensured by a bidirectional LIMS ethernet connection. DiluFlow Elite exports the analyses data to printer, USB key, ExcelTM, Open OfficeTM, CSV and LIMS.
Ultra-low profile
Widest possible opening for the bag and lowest loading threshold on the market! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.
Removable drip tray
In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED
GeckoGrip holding system
This patented system replaces adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED

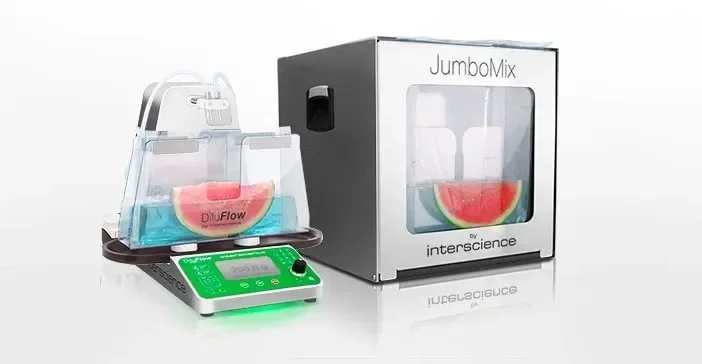

Powder Mode
The DiluFlow Elite, with the JumboKit option, offers an automated protocol for all samples with a low aw-value (Water Activity) according to ISO 6887: milk powders, dehydrated products, cereals...
LightCode
LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.
Green
Accuracy > 98%
Orange
Accuracy > 95%
Red
Accuracy < 95%
Blue
Scale stabilizing
Autotare Function
Multi-distribution mode
Magnetic BagOpen
Up to 6 diluents
New
Pure water, instantly, with Steriwater
Steriwater is an instant solution for the production of sterile water in the laboratory. This solution simplifies sample dilution with sterile water using a DiluFlow gravimetric dilutor and instaBAG dehydrated media bags. Set-up is quick and easy.
<!—>
Applications
The DiluFlow Elite 5 Kg gravimetric dilutor is used for microbiological analyses in the food, environmental industries and public institutes research. It is used for the preparation of samples before their quality analysis for the control of raw materials, the control of products in production, and the control of finished products.
Videos
From sample preparation to bacterial analyses - Overview
Download the videoDiluFlow - Gravimetric dilutors: Overview of the range
Download the videoUnboxing - Gravimetric dilutors: DiluFlow Pro model
Download the videoSteriwater - instant water sterilization solution: Overview
Download the videoDownloads
Specifications
| DiluFlow Elite 5 kg (single pump) | DiluFlow Elite 5 kg (double pump) | |
| Reference | 503 105 | 503 205 |
| BagOpen height < 30 cm | N | N |
| Removable drip tray (patented) | N | N |
| BagOpen with GeckoGrip system (patented) | N | N |
| Magnetic stand for BagOpen (patented shape) | N | N |
| LightCode: color status LED | N | N |
| Compatible with booster kit | N | N |
| 304L stainless steel body | N | N |
| Stainless casting electromechanical core | N | N |
| Robotic arm | N | N |
| Compatible with Jumbo kit | N | N |
| Protection for tubing nozzle | N | N |
| Up to 6 pumps | N | N |
| Multi-dispensing mode (patented) | N | N |
| Powder mode | N | N |
| 24 editable programs | N | N |
| Bidirectional connectivity | N | N |
| Auto-tare function | N | N |
| Weighing mode | N | N |
| Resolution up to 200 g | 0.01 g | |
| Weighing range | 0.1 to 5000 g | |
| Max weight without support | 7000 g | |
| Weighing accuracy | 0 g to 100 g: ± 0.05 g / 100 g to 5000 g: ± 0.1% | |
| Minimum weight required for dilution | 5 g | |
| Minimum weight required for distribution | 5 g | |
| Dilution factor | 1/2 to 1/1000, customizable fractions | |
| Dilution/distribution accuracy | > 99% in Standard or Accurate mode (in optimal conditions) | |
| Dilution time for a 25g sample diluted to 1/10 | < 8 s (with booster kit in Fast mode) | |
| Dilution time for a 375g sample diluted to 1/10 | < 75 s (with booster kit in Fast mode) | |
| Distribution time for 90 mL | < 6 s (with booster kit in Fast mode) | |
| Distribution time for 225 mL | < 9 s (with booster kit in Fast mode) | |
| Max number of pumps | 2 integrated + 4 external | |
| Dilution/distribution mode | Fast / Standard / Accurate | |
| Traceability | Printer / Export to ExcelTM file / CSV file Export on USB key / LIMS | |
| Exported data | Sample weight / Total weight / Dilution factor / Dilution accuracy / Diluent / Sample number / Diluent lot number / Date / Time / Last calibration date / Name of operator / Name of program | |
| Connection | 2 USB ports (type A) to connect a printer, keyboard, bar-code reader, USB key / 1 USB port (type B) to connect a computer / Jack socket to connect a foot pedal / Handy gun / Ethernet connection for LIMS | |
| Net weight | 12.8 kg | 15.3 kg |
| Dimensions (w x d x h) | 31.3 x 42.1 x 37.7 cm | 37 x 42.1 x 37.7 cm |
| Box (w x d x h) | 55 x 55 x 53 cm | |
| Gross weight | 18.8 kg | 21.4 kg |
| Language | English, French | |
| Voltage - Frequencies | 100-240 V~ 50/60 Hz | |
| Fuses | T3.15A L 250V 5x20 mm | |
| Power | 60 W | |
| International protection marking | 32 | |
| Warranty | 1 year | |
| In compliance with | ISO 7218 - ISO 6887 | |
|
Delivered with: 1 drip tray 400, 1 or 2 pumps, 1 protection for distribution nozzle, 1 distribution assembly (GL45 - Ø 6,4 mm) per pump, 1 USB key, 1 USB cable, 1 power cord, 1 BagOpen 400 for diluters, 1 user's manual, 1 conformity certificate / warranty card, 10 GeckoGrip, 1 pack of adhesive putty, 1 Allen wrench, blender bags samples | |
Calibrated according to the G.L.P (Good Laboratory Practice)
Products made for INTERSCIENCE by Interlab, an ISO 9001 certified company.
Accessories
Film for printer
Printer
2L bottle (GL45)
BagOpen 400 for dilutors
Weighing platform
Tongs platform
Adjustable distribution system
Jumbo kit
Pump module
6 nozzles holder
GeckoGrip for BagOpen 400/3500
Integrable stand for broth bags
BagOpen 80/100 mL for dilutors
GeckoGrip for BagOpen 80/100
BagOpen 400 for dilutors (stainless steel)
Foot pedal
Booster kit
5L bottle (GL45)
Certified standard weight (500 g)
Independent stand for broth bags
Holder for dispensing assembly set with 0.2 µm filter
Sticker for printer
Paper for printer
Bar-code reader
Handy Gun
Film for printer
Thermal transfer film
Box dimensions: 12x10x8 cm
Gross weight: 0.08 kg
Quantity: 1
Printer
Thermal printer (RS 232 and USB output)
2L bottle (GL45)
Set of 3 GL45 glass bottle (2L), autoclavable
BagOpen 400 for dilutors
Stand for 400 mL bags.
Box: 22x25x12 cm
Gross weight: 0,50 kg
Quantity: 1
Weighing platform
To weigh and support a container. Non delivered with container.
Box: 25x15x10 cm
Gross weight: 0.25 kg
Quantity: 1
Tongs platform
To hold a tube (ø 10 to 60 mm). Non delivered with tube.
Adjustable distribution system
Ideal to fill various containers

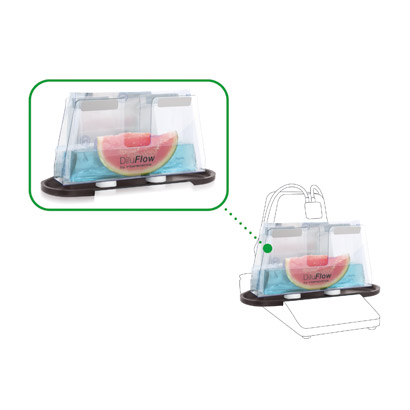

Jumbo kit
BagOpen 3500 + 3500 mL DripTray
Pump module
External module with single pump + 513 043: Dispensing assembly (GL45 - Ø 6.4 mm)
Box: 23x31x27 cm
Gross weight: 5 kg
Quantity: 1
6 nozzles holder
Can hold up to 6 nozzles
GeckoGrip for BagOpen 400/3500
Set of 10 adhesives for DiluFlow BagOpen 400 and 3500
Integrable stand for broth bags
Integrated to the unit, to hold one broth bag
BagOpen 80/100 mL for dilutors
Bag holder for 80/100 mL bags for DiluFlow
GeckoGrip for BagOpen 80/100
Set of 10 adhesives for DiluFlow BagOpen 80/100
BagOpen 400 for dilutors (stainless steel)
Stainless steel stand for 400 mL bags
Foot pedal
For hands-free dispensing. Connection with a 3.5 mm Jack
Booster kit
Booster pump + 2 silicone tubings for pump part (20 cm each), inner ø 6.4 mm + 2 “Y”
5L bottle (GL45)
GL45 glass bottle (5L), autoclavable
Certified standard weight (500 g)
500 g COFRAC calibrated weight, type F1
Independent stand for broth bags
Independent stand for 2 broth bags
Holder for dispensing assembly set with 0.2 µm filter
1 holder for dispensing assembly with 0.2 µm filter + 1 knurled head screw
Box dimensions: 13x11.5x8.5 cm
Gross weight: 0.105 kg
Quantity: 1
Sticker for printer
Set of 2 rolls of 1000 stickers for thermal printer - Label size: 70 x 45 mm
Box dimensions: 20x10x10 cm
Gross weight: 1.00 kg
Quantity: 2x1000
Paper for printer
Set of 2 thermal paper rolls for printer
Box dimensions: 25x10x10 cm
Gross weight: 1.50 kg
Quantity: 2
Bar-code reader
Bar-code reader (1D)
Box dimensions: 26x16.5x11 cm
Gross weight: 0.66 kg
Quantity: 1
Handy Gun
Dispensing control with handy gun including electronic start button
Box dimensions: 15x15x5 cm
Gross weight: 0.12 kg
Quantity: 1
Tubings
A dispensing assembly
B dispensing assembly for Booster Kit
- C Tube weights
- D Trocar
- E PTFE filter
- F Autoclavable GL45 stopper
- G Silicone tubings
- H Straight connectors
- I Y connectors
- J TygonTM tubings for pump
- K TygonTM tubings for pump with filter 0.2 µm
- L Nozzles
- M Protection cap
Adjustable nozzles (L 12 cm - tubings Ø 6.4 mm)
Nozzle cap for trocar
Booster kit dispensing assembly
(GL45 - Ø 3.2 mm)
Tubings + Y
(Ø 3.2 mm)
Tubings for pump (Ø 4.8 mm)
Dispensing assembly for broth bags (Ø 4.8 mm)
Trocar
PTFE filters 0.2 µm
(Ø 25 mm)
Nozzles
(tubings Ø 4.8 - 8 mm)
Tube weights
(Ø 6 mm)
Nozzles (tubings Ø 1.6 - 3.2 mm)
Booster kit dispensing assembly (GL45 - Ø 6.4 mm)
Tubings + Y
(Ø 6.4 mm)
Dispensing assembly
(GL45 - Ø 6.4 mm)
Tubings
(Ø 6.4 mm)
Dispensing assembly
(GL45 - Ø 3.2 mm)
Tubings
(Ø 3.2 mm)
Nozzle cap
(Ø 1.6 - 3.2 mm)
Dispensing assembly with 0.2 µm filter (GL45 - Ø 6.4 mm)
Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm)
Tubings for pump with filter 0.2 µm (Ø 6.4 mm)
Tubings for pump
(Ø 3.2 mm)
Tubings for pump
(Ø 6.4 mm)
Bouchon autoclavable GL45 + filtre 0,2 µm
Straight connectors (tubings Ø 6.4 - 8 mm)
Straight connectors (tubings Ø 3.2 - 4.8 mm)
Y connectors
(tubings Ø 6.4 - 8 mm)
Y connectors
(tubings Ø 3.2 mm)
Adjustable nozzles (L 12 cm - tubings Ø 6.4 mm)
Set of 5 adjustable nozzles (Length: 12 cm - For inner Ø 6.4 mm tubings)
Box: 14x8 cm
Gross weight: 0.15 kg
Quantity: 5
Nozzle cap for trocar
Set of 10 protection cap for trocar.
Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10
Booster kit dispensing assembly
(GL45 - Ø 3.2 mm)
Set of silicone tubings inner Ø 3.2 mm + GL45 screw cap + tube weight + nozzle + filter "Y"
Box: 39x27x15 cm
Gross weight: 0.70 kg
Quantity: 1
Tubings + Y
(Ø 3.2 mm)
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 3.2 mm
Box dimensions: 35x45 cm
Gross weight: 0.47 kg
Quantity: 5
Tubings for pump (Ø 4.8 mm)
Set of 6 TygonTM tubings for pump part (20 cm). inner Ø 4.8 mm
Box: 26x21x11 cm
Gross weight: 0.06 kg
Quantity: 6
Dispensing assembly for broth bags (Ø 4.8 mm)
Distribution assembly Ø 4.8 mm for broth bags
Box dimensions: 20x20 cm
Gross weight: 0.12 kg
Quantity: 1
Trocar
Trocar for broth bags
Box: 12x10x8 cm
Gross weight: 0.03 kg
Quantity: 1
PTFE filters 0.2 µm
(Ø 25 mm)
Set of 5 autoclavable filters (0.2 µm) for GL45 bottle
Box: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 5
Nozzles
(tubings Ø 4.8 - 8 mm)
Set of 5 nozzles + caps for tubings from 4.8 to 8 mm inner diameter
Box: 15x15x6 cm
Gross weight: 0.10 kg
Quantity: 5
Tube weights
(Ø 6 mm)
Set of 5 tube weights - Ø 6 mm
Box: 8x12 cm
Gross weight: 0.30 kg
Quantity: 5
Nozzles (tubings Ø 1.6 - 3.2 mm)
Set of 5 nozzles + caps for tubings from 1.6 to 3.2 mm inner diameter
Box: 8x12 cm
Gross weight: 0.07 kg
Quantity: 5
Booster kit dispensing assembly (GL45 - Ø 6.4 mm)
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + filter + "Y"
Box dimensions: 23x35 cm
Gross weight: 0.24 kg
Quantity: 1
Tubings + Y
(Ø 6.4 mm)
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + "Y" connectors) - inner Ø 6.4 mm
Box dimensions: 35x45 cm
Gross weight: 0.63 kg
Quantity: 5
Dispensing assembly
(GL45 - Ø 6.4 mm)
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + filter
Box dimensions: 23x35 cm
Gross weight: 0.22 kg
Quantity: 1
Tubings
(Ø 6.4 mm)
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + straight connectors) - inner Ø 6.4 mm
Box dimensions: 35x45 cm
Gross weight: 0.59 kg
Quantity: 5
Dispensing assembly
(GL45 - Ø 3.2 mm)
Set of silicone tubings inner Ø 3.2 mm + GL45 screw cap + tube weight + nozzle + filter
Box dimensions: 23x35 cm
Gross weight: 0.20 kg
Quantity: 1
Tubings
(Ø 3.2 mm)
Set of 5 dispensing tubings (silicone tubings + TygonTM tubings + straight connectors) - inner Ø 3.2 mm
Box dimensions: 35x45 cm
Gross weight: 0.45 kg
Quantity: 5
Nozzle cap
(Ø 1.6 - 3.2 mm)
Set of 10 protection cap for nozzles. For tubings from 1.6 to 3.2 mm inner diameter.
Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10
Dispensing assembly with 0.2 µm filter (GL45 - Ø 6.4 mm)
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + filter + tube weight + nozzle + 0.2 µm filter
Box dimensions: 22x36x10 cm
Gross weight: 0.25 kg
Quantity:1
Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm)
Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + filter + tube weight + nozzle + "Y" + 2 filters 0.2 µm
Box dimensions: 22x36x10 cm
Gross weight: 0.38 kg
Quantity:1
Tubings for pump with filter 0.2 µm (Ø 6.4 mm)
Set of 2 TygonTM tubing for pump part (50 cm) + 2 filters 0.2 µm. inner Ø 6.4 mm
Box dimensions: 22x36x10 cm
Gross weight: 0.23 kg
Quantity: 2
Tubings for pump
(Ø 3.2 mm)
Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 3.2 mm
Box dimensions: 26x21.1x11 cm
Gross weight: 0.04 kg
Quantity: 6
Tubings for pump
(Ø 6.4 mm)
Set of 6 TygonTM tubings for pump part (20 cm). Inner Ø 6.4 mm
Box dimensions: 26x21.1x11 cm
Gross weight: 0.07 kg
Quantity: 6
Bouchon autoclavable GL45 + filtre 0,2 µm
Bouchon autoclavable GL45 + filtre 0,2 µm
Dimensions de l’emballage : 10x12 cm
Poids brut : 0.04 kg
Quantité : 1
Straight connectors (tubings Ø 6.4 - 8 mm)
Set of 6 straight connectors for inner Ø 6.4 and 8 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.02 kg
Quantity: 6
Straight connectors (tubings Ø 3.2 - 4.8 mm)
Set of 6 straight connectors for inner Ø 4.8 and 3.2 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.01 kg
Quantity: 6
Y connectors
(tubings Ø 6.4 - 8 mm)
Set of 6 "Y" connectors for Ø 6.4 and 8 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.02 kg
Quantity: 6
Y connectors
(tubings Ø 3.2 mm)
Set of 6 "Y" connectors for Ø 3.2 mm tubings
Box dimensions: 12x8 cm
Gross weight: 0.05 kg
Quantity: 6
Associated products
Products marked with an asterisk are compatible with the DiluFlow Elite 5 kg after the purchase of an accessory:
* with Jumbo kit option - Ref 505 006
** with BagOpen 80/100 mL option - Ref 505 014
