JumboMix 3500 P CC

3500 mL lab blender

Essential features

Ref. 031 110
Ref. 031 230

JumboMix 3500 P CC

3500 mL lab blender

Essential features

Ref. 031 110
Ref. 031 230

037 000 JumboStand ergonomic trolley


Optimized organisation and handling
JumboStand - ref. 037 000

The JumboMix 3500 P CC efficiently blends any type of sample, up to 375 g, for optimal bacterial extraction. It is equipped with a patented system of adjustable paddles to adapt itself to any sample. It is also great for sample pooling. The multifunction screen enables easy control of the blending parameters.

  • Optimal blending volume: 200 - 3750 mL
  • Variable speed: 1.5 - 3 - 4.5 - 6 strokes / second
  • Variable blending time: 1 second - 1 hour or ∞ / count-down
  • Click & Clean click-on paddles

Presentation

Maximum capacity up to 3750 mL!

Suitable for any volume from 200 mL to 3500 mL, the JumboMix blends, in 30 to 60 seconds, all types of samples up to 375 g. It is compatible with 2000 and 3500 mL bags.


JumboMix P CC - Maximum capacity

Optimal bacterial extraction

The peristaltic movement of the paddles allows optimal bacterial extraction during blending, without risk of cross-contamination. In 30 seconds, the sample is ready for analysis.


Optimal bacterial extraction

Adjustable blending power

The adjustable blending power enables the blending of any type of sample. It is powerful, with a pressure up to 22.6 kg: even the hardest samples won’t resist (eg: pet food, nuts, pills, seeds).
PATENTED


Blending power - paddles forward

Small / hard samples:
Move the paddles forward
for more pressure


Blending power - Paddles backward

Big / soft samples:
Move the paddles back
for less pressure

Sample pooling

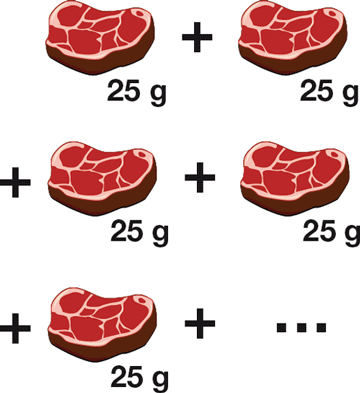

The JumboMix P CC is ideal for sample pooling. The large capacity of the blending chamber allows grouping the samples up to 375 g for better analytical sensitivity. For example: 5 samples of 25 g diluted to 1/10th in the same bag.


JumboMix P CC - Sample pooling

Click & Clean

Click & Clean click-on paddles allow complete cleaning of the unit. This patented system allows you to click-off and click-on the paddles in one second to access the entire blending chamber.
PATENTED


JumboMix 3500 W CC - Click & Clean - Click off


JumboMix 3500 W CC - Click & Clean - Clean


JumboMix 3500 W CC - Click & Clean - Click on

Great ergonomics

The JumboStand cart (optional) improves the ergonomics of the workstation by placing the JumboMix at a suitable height. And it leaves more space on the bench-top!


JumboStand (ref. 037 000) - Shelf trolley

Q-Tight closure

The Q-Tight closure has been especially designed to prevent leaks from the top during blending.


JumboMix - Q-Tight système

Warranty

The JumboMix has a lifetime warranty on shock absorbers. Simply send back the warranty card and receive a free 3-year warranty extension.


3 year warranty - Shock absorbers lifetime warranty

Applications

JumboMix 3500 P CC is suitable for blending plants for biochemical analysis or grapes for monitoring the winemaking process.


Food


Public research

Videos

Videos

From sampling to bacterial counting - Overview

Download the video

From sample preparation to bacterial analyses - Overview

Download the video

Unboxing - Lab blenders: JumboMix W CC model

Download the video

JumboLine - Sample prep' for samples up to 375 g (anglais)

Download the video

Resources

Resources

Title
Language
Type
Size
Download
PDF
3.2 Mb
Language: English
JumboMix 3500 brochure
PDF
409.1 kb
Language: English
JumboMix 3500 P CC technical file
PDF
100 kb
Language: English
EC Certificate
PDF
102.7 kb
Language: English
UKCA Certificate
PDF
557.3 kb
Language: English, french
ISO 9001 Certificate
PDF
8 Mb
Language: English, french
JumboMix Tools flyer
PDF
46.9 Mb
Language: English
English catalog
Z
Zip
829.9 kb
JumboMix 3500 P CC photo
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
PDF
1.7 Mb
Language: English
Publication:  2023
Manufacture of syringes and capsules for faecal microbiota transplantation (FMT) with Interscience equipments
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Z
Zip
233.8 kb
Drip tray photo - 036 000
Z
Zip
767 kb
JumboStand photo - 037 000
Title
Language
Type
Size
Download

Specifications

Specifications

JumboMix 3500 P CC
(100-127 V∼ / 220-240 V∼)
Reference 031 110
OVERVIEW
Stainless steel (304L) outer shell N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
SPECIFICATIONS
Optimal blending volume 200 - 3750 mL
Drip tray Optional
Q-Tight closing Special closing to prevent leakage from the top of the bag
Speed Variable speed: 1.5 - 3 - 4.5 - 6 strokes/s
Variable blending time 1 s - 1 h or ∞/count-down
Door Plain door
Opening door 270° opening door
Voltage - Frequencies 100-127 V~ / 220-240 V~ 50-60 Hz
Fuses T4A L 250 V / T2A L 250 V 5x20 mm
Power 400 W
Warranty 3-year (after recording the warranty card)
Lifetime warranty Shock absorbers
International protection marking IP21
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 51.2 x 52.3 x 46.8 cm
Net weight 55.8 kg
Box (w x d x h) 61 x 57 x 57 cm
Gross weight 60.5 kg
DELIVERED WITH
1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 certificate of conformity / warranty card
Spare parts availability 10 years
JumboMix 3500 P CC
(220-240 V∼)
Reference 031 230
OVERVIEW
Stainless steel (304L) outer shell N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
SPECIFICATIONS
Optimal blending volume 200 - 3750 mL
Drip tray Optional
Q-Tight closing Special closing to prevent leakage from the top of the bag
Speed Variable speed: 1.5 - 3 - 4.5 - 6 strokes/s
Variable blending time 1 s - 1 h or ∞ /count-down
Door Plain door
Opening door 270° opening door
Voltage - Frequencies 220-240 V~ 50-60 Hz
Fuses T2A L 250 V 5x20 mm
Power 400 W
Warranty 3-year (after recording the warranty card)
Lifetime warranty Shock absorbers
International protection marking IP21
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 51.2 x 52.3 x 46.8 cm
Net weight 55.8 kg
Box (w x d x h) 61 x 57 x 57 cm
Gross weight 60.5 kg
DELIVERED WITH
1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 certificate of conformity / warranty card
Spare parts availability 10 years
JumboMix 3500 P CC
(100-127 V∼ / 220-240 V∼)
JumboMix 3500 P CC
(220-240 V∼)
Reference 031 110 031 230
OVERVIEW
Stainless steel (304L) outer shell N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
SPECIFICATIONS
Optimal blending volume 200 - 3750 mL
Drip tray Optional
Q-Tight closing Special closing to prevent leakage from the top of the bag
Speed Variable speed: 1.5 - 3 - 4.5 - 6 strokes/s
Variable blending time 1 s - 1 h or ∞/count-down
Door Plain door
Opening door 270° opening door
Voltage - Frequencies 100-127 V~ / 220-240 V~ 50-60 Hz 220-240 V~ 50-60 Hz
Fuses T4A L 250 V / T2A L 250 V 5x20 mm T2A L 250 V 5x20 mm
Power 400 W
Warranty 3-year (after recording the warranty card)
Lifetime warranty Shock absorbers
International protection marking IP21
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 51.2 x 52.3 x 46.8 cm
Net weight 55.8 kg
Box (w x d x h) 61 x 57 x 57 cm
Gross weight 60.5 kg
DELIVERED WITH
1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 certificate of conformity / warranty card

GLP-Compliant use (Good Laboratory Practice)

Products made for Interscience by Interlab, an ISO 9001 certified company.

Accessories

Accessories

Drip tray

Ref. 036 000

Stainless steel security drip tray for JumboMix 3500

Box: 46x12.5x25 cm
Gross weight: 0.67 kg
Quantity: 1

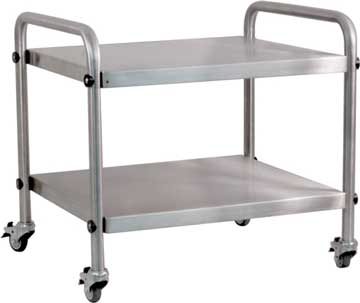

JumboStand

Ref. 037 000

Stainless steel ergonomic table for JumboMix 3500. Dim. (w x d x h): 58 x 51 x 54 cm. Loading height of the JumboMix: 45 cm

Box: 60x52x26 cm
Gross weight: 16.0 kg
Quantity: 1
