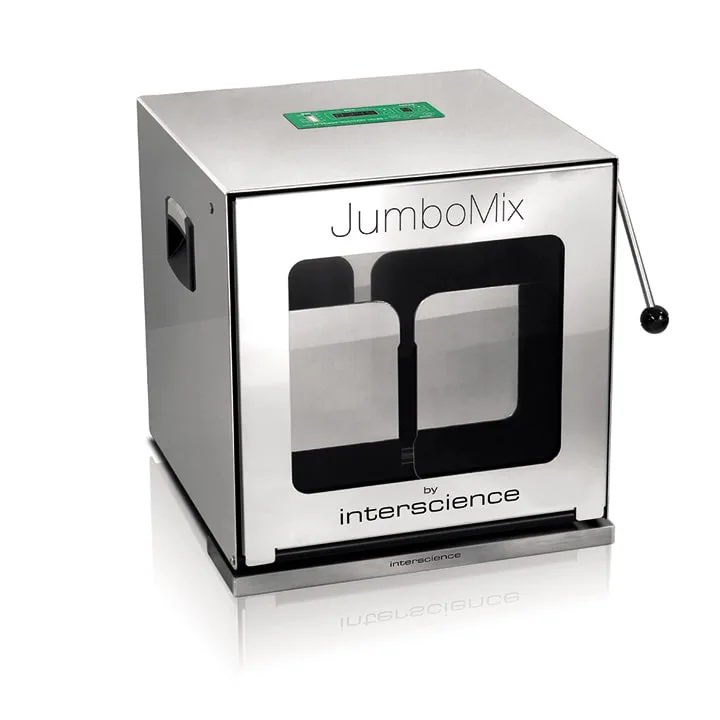

JumboMix 3500 W CC

3500 mL lab blender

Window door

Ref. 032 110
Ref. 032 230

JumboMix 3500 W CC

3500 mL lab blender

Window door

Ref. 032 110
Ref. 032 230

037 000 JumboStand ergonomic trolley


Organisation et manipulation optimisées
JumboStand - réf. 037 000

The JumboMix 3500 W CC efficiently blends any type of sample, up to 375 g, for optimal bacterial extraction. It comes with a window door and a patented system of adjustable paddles to adapt itself to any sample. The JumboMix 3500 W CC is ideal for sample pooling.

  • Optimal blending volume: 200 - 3750 mL
  • Variable speed: 1.5 - 3 - 4.5 - 6 strokes / second
  • Variable blending time: 1 second - 1 hour or ∞ / count-down
  • Click & Clean click-on paddles

Presentation

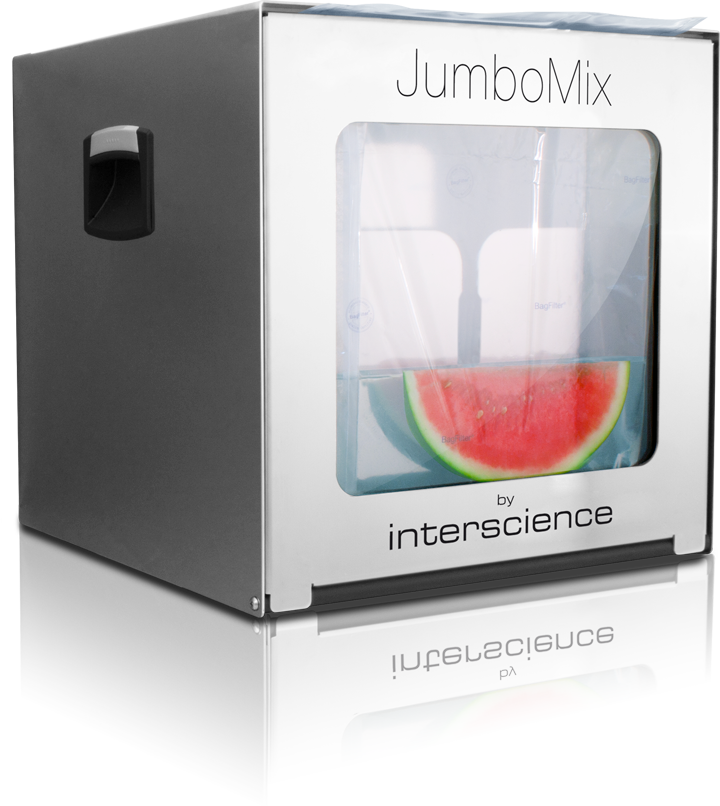

Maximum capacity up to 3750 mL!

Suitable for any volume from 200 mL to 3500 mL, the JumboMix blends, in 30 to 60 seconds, all types of samples up to 375 g. It is compatible with 2000 and 3500 mL bags.


JumboMix WCC - Maximum capacity

Optimal bacterial extraction

The peristaltic movement of the paddles allows optimal bacterial extraction during blending, without risk of cross-contamination. In 30 seconds, the sample is ready for analysis.


Optimal bacterial extraction

Adjustable blending power

The adjustable blending power enables the blending of any type of sample. It is powerful, with a pressure up to 22.6 kg: even the hardest samples won’t resist (eg: pet food, nuts, pills, seeds).
PATENTED


Blending power - paddles forward

Small / hard samples:
Move the paddles forward
for more pressure


Blending power - Paddles backward

Big / soft samples:
Move the paddles back
for less pressure

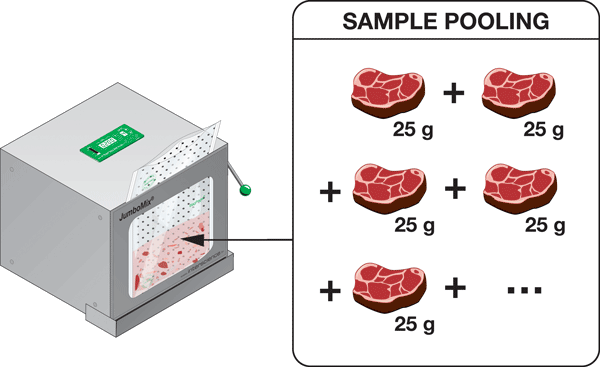

Sample pooling

The JumboMix is ideal for sample pooling. The large capacity of the blending chamber allows the grouping of samples (up to 375 g) for better analytical sensitivity. For example: 5 samples of 25 g diluted to 1/10th in the same bag.


Sample pooling - image

Click & Clean

Click & Clean click-on paddles allow complete cleaning of the unit. This patented system allows you to click-off and click-on the paddles in one second to access the entire blending chamber.
PATENTED

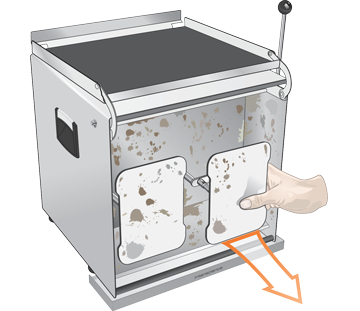

JumboMix 3500 W CC - Click & Clean - Click off

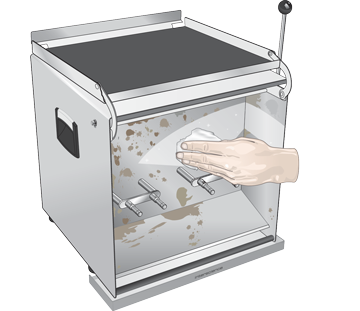

JumboMix 3500 W CC - Click & Clean - Clean

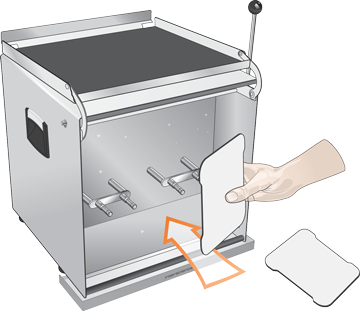

JumboMix 3500 W CC - Click & Clean - Click on

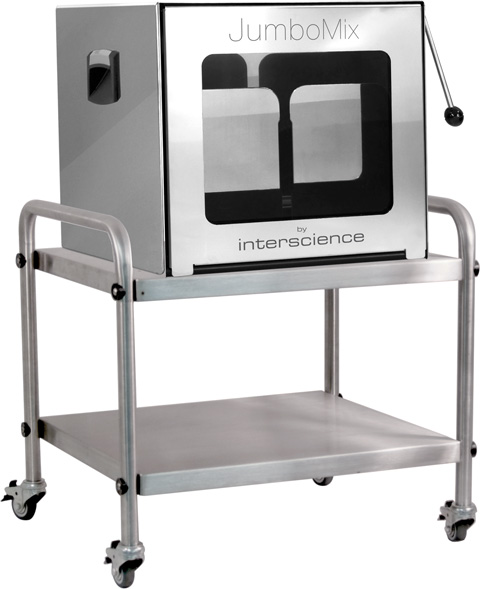

Great ergonomics

The JumboStand cart (optional) improves the ergonomics of the workstation by placing the JumboMix at a suitable height. And it leaves more space on the bench-top!


JumboMix W CC - JumboStand

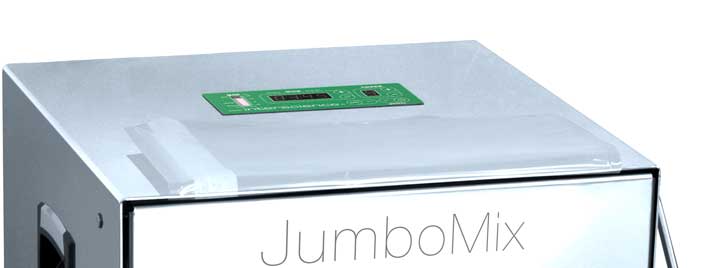

Q-Tight closure

The Q-Tight closure has been especially designed to prevent leaks from the top during blending.


JumboMix - Q-Tight système

Warranty

The JumboMix has a lifetime warranty on shock absorbers and the window door. Simply send back the warranty card and receive a free 3-year warranty extension.


3 year warranty - window door warranty - shock absorbers

Applications

JumboMix 3500 W CC is great for sample pooling, in baby formula, chocolate, ground meat… It is used for the preparation of PCR testing of pathogens such as E. coli O157:H7, Salmonella spp., Cryptosporidium and Giardia parasites… The JumboMix W CC is especially designed for food analyses and public research.


Food


Public research

Videos

Videos

From sampling to bacterial counting - Overview

Download the video

From sample preparation to bacterial analyses - Overview

Download the video

Unboxing - Lab blenders: JumboMix W CC model

Download the video

JumboLine - Sample prep' for samples up to 375 g (anglais)

Download the video

Downloads

Downloads

Title
Language
Type
Size
Download
JumboMix 3500 brochure
English
PDF
2.5 Mb
JumboMix 3500 W CC technical file
English
PDF
335.6 kb
EC Certificate
English
PDF
100 kb
UKCA Certificate
English
PDF
102.7 kb
ISO 9001 Certificate
English
PDF
789.1 kb
JumboMix Tools flyer
English, french
PDF
8 Mb
English catalog
English
PDF
46.9 Mb
Z
JumboMix W CC photo
Zip
879.4 kb
Z
JumboMix W CC 2 photo
Zip
1.1 Mb
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Z
Drip tray photo - 036 000
Zip
233.8 kb
Z
JumboStand photo - 037 000
Zip
767 kb
Title
Language
Type
Size
Download

Specifications

Specifications

JumboMix 3500 W CC
(100-127 V∼ / 220-240 V∼)
Reference 032 110
OVERVIEW
Stainless steel (304L) outer shell N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
Window door N
SPECIFICATIONS
Optimal blending volume 200 - 3750 mL
Drip tray Included
Q-Tight closing Special closing to prevent leakage from the top of the bag
Variable blending time 1 s - 1 h or ∞/count-down
Speed Variable speed: 1.5 - 3 - 4.5 - 6 strokes/s
Door Window door
Opening door 270° opening door
Voltage - Frequencies 100-127 V~ / 220-240 V~ 50-60 Hz
Fuses T 4 A L 250 V / T 2 A L 250 V 5x20 mm
Power 400 W
Warranty 3-year (after recording the warranty card)
Lifetime warranty Window door and Shock absorbers
International protection marking IP21
Spare parts availability 10 years
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 51.2 x 52.3 x 46.8 cm
Net weight 52.8 kg
Box (w x d x h) 61 x 57 x 57 cm
Gross weight 57.5 kg
DELIVERED WITH
1 drip tray, 1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 certificate of conformity / warranty card
JumboMix 3500 W CC
(220-240 V∼)
Reference 032 230
OVERVIEW
Stainless steel (304L) outer shell N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
Window door N
SPECIFICATIONS
Optimal blending volume 200 - 3750 mL
Drip tray Included
Q-Tight closing Special closing to prevent leakage from the top of the bag
Variable blending time 1 s - 1 h or ∞/count-down
Speed Variable speed: 1.5 - 3 - 4.5 - 6 strokes/s
Door Window door
Opening door 270° opening door
Voltage - Frequencies 220-240 V~ 50-60 Hz
Fuses T 2 A L 250 V 5x20 mm
Power 400 W
Warranty 3-year (after recording the warranty card)
Lifetime warranty Window door and Shock absorbers
International protection marking IP21
Spare parts availability 10 years
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 51.2 x 52.3 x 46.8 cm
Net weight 52.8 kg
Box (w x d x h) 61 x 57 x 57 cm
Gross weight 57.5 kg
DELIVERED WITH
1 drip tray, 1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 certificate of conformity / warranty card
JumboMix 3500 W CC
(100-127 V∼ / 220-240 V∼)
JumboMix 3500 W CC
(220-240 V∼)
Reference 032 110 032 230
OVERVIEW
Stainless steel (304L) outer shell N N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
Window door N
SPECIFICATIONS
Optimal blending volume 200 - 3750 mL
Drip tray Included
Q-Tight closing Special closing to prevent leakage from the top of the bag
Variable blending time 1 s - 1 h or ∞/count-down
Speed Variable speed: 1.5 - 3 - 4.5 - 6 strokes/s
Door Window door
Opening door 270° opening door
Voltage - Frequencies 100-127 V~ / 220-240 V~ 50-60 Hz 220-240 V~ 50-60 Hz
Fuses T 4 A L 250 V / T 2 A L 250 V 5x20 mm T 2 A L 250 V 5x20 mm
Power 400 W
Warranty 3-year (after recording the warranty card)
Lifetime warranty Window door and Shock absorbers
International protection marking IP21
Spare parts availability 10 years
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 51.2 x 52.3 x 46.8 cm
Net weight 52.8 kg
Box (w x d x h) 61 x 57 x 57 cm
Gross weight 57.5 kg
DELIVERED WITH
1 drip tray, 1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 certificate of conformity / warranty card

GLP-Compliant use (Good Laboratory Practice)

Products made for Interscience by Interlab, an ISO 9001 certified company.

Accessories

Accessories

Drip tray

Ref. 036 000

Stainless steel security drip tray for JumboMix

Box: 46x12.5x25 cm
Gross weight: 0.67 kg
Quantity: 1

JumboStand

Ref. 037 000

Stainless steel ergonomic table for JumboMix 3500. Dim. (w x d x h): 58 x 51 x 54 cm. Loading height of the JumboMix: 45 cm

Box: 60x52x26 cm
Gross weight: 16.0 kg
Quantity: 1
