ScanStation 200
Real-time incubator and colony counter
Ref. 439 200
ScanStation 200 centralizes incubation, detection and counting of colonies on up to 200 Petri dishes. Colonies are detected and counted as soon as they appear. Their growth is monitored in real time.
- Capacity: up to 200 Petri dishes
- Counting on pour, surface, Spiral, filtration membrane, air sampling, contact plate, PetrifilmTM
- Petri dish sizes: Ø 55 to 65 mm, Ø 90 mm
- Accuracy of incubation temperature: ± 1°C
- Reading time between Petri dishes: 30 min or 1 h
E.g. : Coliforms on VRBL agar incubated at 37°C
Get early results
With ScanStation technology, monitor bacterial growth in your analyses in real time. Colonies are detected and counted as soon as they appear, significantly reducing the time needed to obtain results - up to three times faster than the traditional method.
Manage the quality of your production with ScanStation, releasing batches more quickly and without any bacteriological risk for the consumer. Manufacturing risks associated with bacterial contamination are significantly reduced, and production quality is under control. This risk management makes it a cost-effective solution for improving the quality and safety of your products.
Improve the accuracy of your analyses
ScanStation software is based on a combination of patented algorithms and artificial intelligence for colony counting. The image fusion algorithm, specifically designed to enhance contrast, enables accurate detection of microorganisms, including molds, from the very start of incubation.
With typical counting accuracy of up to 98%, ScanStation avoids false positives and eliminates inaccuracy caused by spread or confluent colonies.
ScanStation V9’s AI software enables mold detection and differentiation from bacteria at an early stage of incubation.
Automation in the laboratory: a major challenge
By automating tedious, repetitive tasks, you free up time for your teams and improve the accuracy, and therefore the interpretation, of your analyses. Load the Petri dishes, and the cycle starts up instantly. ScanStation works 24/7.
Improved quality of results through standardization of procedures and elimination of manual errors.
Flexibility of use thanks to a variety of working modes (batch or continuous loading).
Compliance with regulatory standards (GMP, AOAC, ISO)
Keep your current analytical protocols and speed them up
Combine traditional methods with rapid methods and anticipated results, while keeping operating costs to a minimum.
Adopt real-time monitoring to help rapid detection of potential environmental and product contaminants in accordance with GMP Annex 1.
Our automation system is designed to integrate with your existing process. Keep your existing Petri dishes, associated equipment and consumables validated. Analyze all types of culture media on 55-90 mm Petri dishes (surface, bulk, spiral), filtration membranes, contact plates.
PDA
TSA/PCA
MRS
VRBL/VRBG
TBX
SLANETZ
SABOURAUD
R2A
GVPC
TTC
YEAST AND MOLD AGAR
BAIRD PARKER / RPF
Batch or continuous loading
Petri dishes can be loaded at the start of or during incubation.
ScanStation processes batches simultaneously with different light settings or incubation times.
Security and compliance of your dematerialized data
ScanStation enables you to dematerialize your data while guaranteeing its integrity and protection. Compliant with 21 CFR Part 11 and GMP Annex 11 standards, the system ensures complete traceability thanks to account management, electronic signatures and audit trails.
ScanStation saves images and videos of bacterial growth, from the beginning to the end of incubation. Data can be retrieved beyond the incubation date.
mp4
PDF
JPG, PNG,
BMP
CSV
ExcelTM
Stay connected in the lab
Stay connected to your lab wherever you are with the mobile app and receive instant notifications of non-compliant results.
Load Petri dishes and navigate the myScanStation app to visualize bacterial growth.
View and validate analysis results over a secure connection, with encrypted backups. Call up the LIMS via a bidirectional connection, to retrieve information concerning analyses, and deposit results at the end of the cycle.
Analyze your results
Get a complete overview of results with the statistics module.
View results by batch, sampling area or sample type. Time lapse videos, correlation curves and Time to result are available for in-depth analyses.
All your data on the Petri dishes with dataLink pro
Controlled by dataLink pro, semi-automated labeling on the edge of the plate facilitates identification of Petri dishes for the microbiological analysis chain, and is particularly well suited to large-scale production runs.
ScanStation’s integrated reader identifies the code on the Petri dishes’ label, enabling personalized tracking of each plate in the carousel. Information is transmitted to the LIMS via a bidirectional connection.
Our application and technical experts support you
ScanStation services go far beyond simple installation
Our Applications team will work with you to ensure optimum integration of your equipment
- •Device installation and set-up: logistics, application support and usage monitoring
- •Technical and scientific training: tailored to user teams and analytical protocols
- •Equipment Qualification: IQOQ to guarantee device conformity
The Customer Support team is with you throughout the life of your equipment
- •A responsive team in 5 offices worldwide: France, USA/Canada, Japan, China, Singapore.
Contact our Customer Support - •An expert technical team in direct contact with our design and manufacturing departments
- •A range of services designed to keep your equipment working at peak efficiency
Applications
ScanStation automatic incubator and colony counter can be used in various fields of application. Its bacterial kinetics improve counting accuracy by eliminating false positives linked to particles present in a cosmetic product. It is particularly used for quality control of raw materials and/or cosmetic production. Its bacterial kinetics allow for real-time results and to bring an anticipated corrective action during a contamination detection allowing a better stock management.
Videos
From sample preparation to bacterial analyses - Overview
Download the videoScanStation - Real-time incubator and colony counter: Overview of the range
Download the videoScanStation - Real-time incubator and colony counter: Real-time bacterial growth
Download the videoScanStation - What is ScanStation? - Interview
Download the videoUnboxing - Real-time incubator and colony counter: ScanStation 100 model
Download the videoScanStation - For the Food Industry - How does it work?
Download the videoScanStation - For the Pharmaceutical Industry - How does it work?
Download the videoScanStation - For the Cosmetic Industry - How does it work?
Download the videodataLink pro - Labelling on the edge of the Petri dish
Download the videoResources
(Study performed on Symphony and TBX media)
Publication: 2024
Cleanroom microbiology: single temperature incubation for EM (environmental monitoring)Publication: 2024
How does automating microbiological analyses with ScanStation improve your laboratory 21 CFR compliance?Publication: 2023
Rapid and automated screening of carbapenemase- and ESBL-producing Gram-negative bacteria from rectal swabs using chromogenic agar media and the ScanStation devicePublication: 2023
Possibility of rapid detection with Rapid-media by real-time & automatic colony counterPublication: 2022
Rapid and automated screening of multi-drug resistant bacteria on chromogenic media with the ScanStation 100 devicePublication: 2021
Real-time detection of CFU growth with the ScanStation smart incubator expedites the environmental monitoring processPublication: 2019
Evaluation of the ScanStation 100 system for the automated incubation and analysis of pharmaceutical environmental monitoring samples using standard Petri platesSpecifications
| ScanStation 200 | |
| Reference | 439 200 |
| OVERVIEW | |
| Bacterial growth monitoring | N |
| Molds detection with AI | N |
|
Remote access (included in Connect Module) |
N |
| Automatic Petri dish identification | N |
|
LIMS connection (included in Connect Module) |
N |
| Compatible with dataLink pro traceability system | N |
| ANALYTICAL PROTOCOL | |
| Capacity | 200 Petri dishes |
| Reading time in between Petri dishes | 30 minutes or 1 hour |
| Loading strategy for Petri dishes | Mono or multi batch |
| Max. incubation time | 10 days |
| Camera resolution | 5 megapixels |
| Type of plating accepted | Pour plate, surface, Spiral, filtration membrane, air sampling, contact plate, Petrifilm™ |
| Petri dish size | Ø 85-96 mm and Ø 54-67 mm with adapter (right-side up or upside down) |
| INCUBATION | |
| Incubation temperature | 20 °C to 45 °C (68 °F to 113 °F) |
| Temperature resolution | ± 0.1 °C |
| Incubation temperature accuracy | ± 1 °C (according to FX15-140 standard) |
| Recording temperature | Every minute |
| Heating and cooling technology | Peltier modules, compressor free |
| SOFTWARE | |
| ScanStation Software | Web application, Mobile application (included in Connect Module) |
| Languages | English, French, Japanese, Chinese, Spanish, German |
| Video player | Play, zoom, pause, replay, during and after incubation |
| Included computer system | Windows 11 LTSC IoT Tower PC with Intel i7 processor |
| Screen | 23 inches touch screen |
| Automatic export of Petri dishes | mp4, jpg, CSV Excel™ compatible |
| Image storage capacity | 5 months on 5 To (reading interval: 30 min) 5 years on 5 To (read interval: 1 h) |
| In compliance with | 21 CFR Part 11 |
| ENVIRONMENT | |
| Storage conditions | 5-40°C with max. 80% relative humidity up to 31°C and linear decrease to 50% at 40°C |
| Terms and conditions of use | In a ventilated room, between 18 °C and 25 °C (64.4 °F and 77 °F), max. altitude 2000 m |
| Max. external humidity temperature | 70% |
| Warranty | 1 year |
| Spare parts availability | 10 years |
| ELECTRICAL SPECIFICATIONS | |
| Power supply without UPS | 100-240V~50/60Hz / Input1(Machine): 11.5A / Computer + Screen: 4.5A |
| Power supply with UPS | 100-125V~50/60Hz (with 110V UPS) / Input1: 11.5A / Input2: 4.5A 200-240V~50/60Hz (with 220V UPS) / 13 A |
| Number of phases | 1: Single-phase |
| Distribution type | TT |
| Max. power | 2000 W |
| International protection marking | IP20 (Whole device), IP40 (electronical enclosure) |
| WEIGHT AND DIMENSIONS | |
|
Dimensions (w x d x h): ScanStation (without option) |
135.3 x 82.3 x 174.5 cm |
| Dimensions (w x d x h): ScanStation (without option) with handles unmounted | 135.3 x 78.6 x 174.5 cm |
| Dimensions (w x d x h): ScanStation + Lateral stands for screen and keyboard (Ref. 439 110) | 219 x 82.3 x 174.5 cm |
| Dimensions (w x d x h): ScanStation + Central stands for screen and keyboard (Ref. 439 111) | 135.3 x 103 x 174.5 cm |
| Net weight: ScanStation (without option) | 408 kg |
|
Net weight: ScanStation + Lateral stands for screen and keyboard (Ref. 439 110) |
416 kg |
|
Net weight: ScanStation + Central stands for screen and keyboard (Ref. 439 111) |
414 kg |
| Box (w x d x h) | 168.6 x 96 x 226 cm |
| Gross weight: ScanStation (without option) | 587 kg |
|
Gross weight: ScanStation + Lateral stands for screen and keyboard (Ref. 439 110) |
595 kg |
|
Gross weight: ScanStation + Central stands for screen and keyboard (Ref. 439 111) |
593 kg |
| DELIVERED WITH | |
|
1 computer with power cable, 1 Wi-Fi antenna connected to the computer, 1 monitor with power cable, 1 Display Port cable, 1 USB 3 cable, 1 wireless keyboard, 1 wireless mouse, 1 dongle for keyboard and wireless mouse, 1 mains power cable, 1 temperature map,1 user manual, 1 maintenance kit including 1 optical cleaner bottle and 1 grease pump, 1 test pattern, 1 conformity certificate / warranty card |
GLP-Compliant use (Good Laboratory Practice)
Products made for Interscience by Interlab, an ISO 9001 certified company.
Accessories
Optical cleaner + wipes
Set of adaptors
Adaptor for Petri dishes (Ø 54 mm)
Adaptor for Petri dishes (Ø 55 mm)
Adaptor for Petri dishes (Ø 56 mm)
Adaptor for Petri dishes (Ø 57 mm)
Adaptor for Petri dishes (Ø 58 mm)
Adaptor for Petri dishes (Ø 59 mm)
Adaptor for Petri dishes (Ø 60 mm)
Adaptor for Petri dishes (Ø 61 mm)
Adaptor for Petri dishes (Ø 62 mm)
Adaptor for Petri dishes (Ø 63 mm)
Adaptor for Petri dishes (Ø 64 mm)
Adaptor for Petri dishes (Ø 65 mm)
Adaptor for Petri dishes (Ø 66 mm)
Adaptor for contact plate (Ø 65 mm)
Adaptor for contact plate (Ø 67 mm)

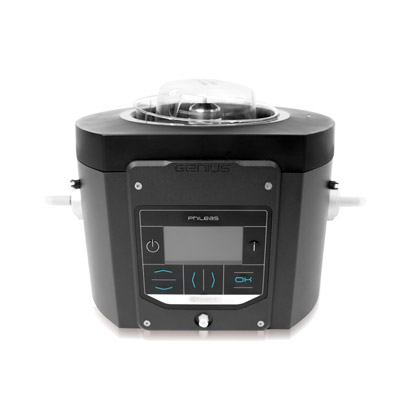

Nebulizer for real-time incubator and colony counter
Stand for nebulizer
Disinfectant for nebulizer
Lateral stands for screen and keyboard
Central stands for screen and keyboard
Storage furniture for real-time incubator and colony counter
Uninterrupted power supply (220 V)
Uninterrupted power supply (110 V)
Petri dish automatic identification kit
Test pattern for real-time incubator and colony counter
Data Integrity Module
Optical cleaner + wipes
Optical cleaner and 50 wipes
Box dimensions: 25x19x5 cm
Gross weight: 0.32 kg
Quantity: 1
Set of adaptors
Set of 15 adaptors for ScanStation: for Petri dishes Ø 54mm, Ø 55mm, Ø 56mm, Ø 57mm, Ø 58 mm, Ø 59 mm, Ø 60 mm, Ø 61 mm, Ø 62 mm, Ø 63 mm, Ø 64 mm, Ø 65 mm, Ø 66 mm, for contact plate: Ø 65 mm, Ø 67 mm
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 7
Adaptor for Petri dishes (Ø 54 mm)
Set of 10 adaptors for Ø 54 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Adaptor for Petri dishes (Ø 55 mm)
Set of 10 adaptators Ø 55 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Adaptor for Petri dishes (Ø 56 mm)
Set of 10 adaptatorsfor Ø 56 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Adaptor for Petri dishes (Ø 57 mm)
Set of 10 adaptators for Ø 57 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Adaptor for Petri dishes (Ø 58 mm)
Set of 10 adaptators for Ø 58 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Adaptor for Petri dishes (Ø 59 mm)
Set of 10 adaptors for Ø 59 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0,15 kg
Quantity: 10
Adaptor for Petri dishes (Ø 60 mm)
Set of 10 adaptors for ScanStation for Ø 60 mm Petri dishes
Box: 12x10x8 cm
Gross weight: 0,15 kg
Quantity: 10
Adaptor for Petri dishes (Ø 61 mm)
Set of 10 adaptors for Ø 61 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10
Adaptor for Petri dishes (Ø 62 mm)
Set of 10 adaptors for Ø 62 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10
Adaptor for Petri dishes (Ø 63 mm)
Set of 10 adaptors for Ø 63 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10
Adaptor for Petri dishes (Ø 64 mm)
Set of 10 adaptors for Ø 64 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10
Adaptor for Petri dishes (Ø 65 mm)
Set of 10 adaptors for Ø 65 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.15 kg
Quantity: 10
Adaptor for Petri dishes (Ø 66 mm)
Set of 10 adaptors for Ø 66 mm Petri dishes for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Adaptor for contact plate (Ø 65 mm)
Set of 10 adaptors for Ø 65 mm contact plates for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Adaptor for contact plate (Ø 67 mm)
Set of 10 adaptors for Ø 67 mm contact plates for ScanStation
Box: 12x10x8 cm
Gross weight: 0.20 kg
Quantity: 10
Nebulizer for real-time incubator and colony counter
Disinfection unit for ScanStation (Phileas GeniusTM)
Box: 41x36x32 cm
Gross weight: 8.40 kg
Quantity: 1
Stand for nebulizer
Support for Phileas GeniusTM disinfection unit
Box: 31x25.1x10 cm
Gross weight: 0.70 kg
Quantity: 1
Disinfectant for nebulizer
O2SAFE 7.4 disinfectant for Phileas GeniusTM disinfection unit. 10L
Box: 30x20x20 cm
Gross weight: 10.0 kg
Quantity: 1
Lateral stands for screen and keyboard
1 keyboard shelf support + 1 screen support on articulated arms for ScanStation. They allow the height and orientation of the keyboard and screen to be adjusted. Position: right or left side of the ScanStation
Box: 52x29x38 cm
Gross weight: 8.00 kg
Quantity: 1
Central stands for screen and keyboard
1 keyboard shelf support + 1 screen support for ScanStation. They allow the height of the keyboard and screen to be adjusted. Position: front side of the ScanStation
Box: 55x35x20 cm
Gross weight: 5.80 kg
Quantity: 1
Storage furniture for real-time incubator and colony counter
ScanStation furniture for PC and accessories storage
Box: 135x80x62 cm
Gross weight: 70.0 kg
Quantity: 1
Uninterrupted power supply (220 V)
Protection in case of power failure (220V) for ScanStation
Box: 75x59x19 cm
Gross weight: 35.0 kg
Quantity: 1
Uninterrupted power supply (110 V)
Protection in case of power failure (110V) for ScanStation
Box: 75x59x34 cm
Gross weight: 50.0 kg
Quantity: 1
Petri dish automatic identification kit
Bar-code (1D) and datamatrix (2D) reader with a turntable for automatic identification of Petri dishes with ScanStation
Box: 25x15x10 cm
Gross weight: 0.75 kg
Quantity: 1
Test pattern for real-time incubator and colony counter
Test pattern to check camera sharpness and centering
Data Integrity Module
Module Data Integrity for accounts management, electronic signatures, audit trail and results validation functions on ScanStation.
Quantity: 1
